  • wave soldering Equipment

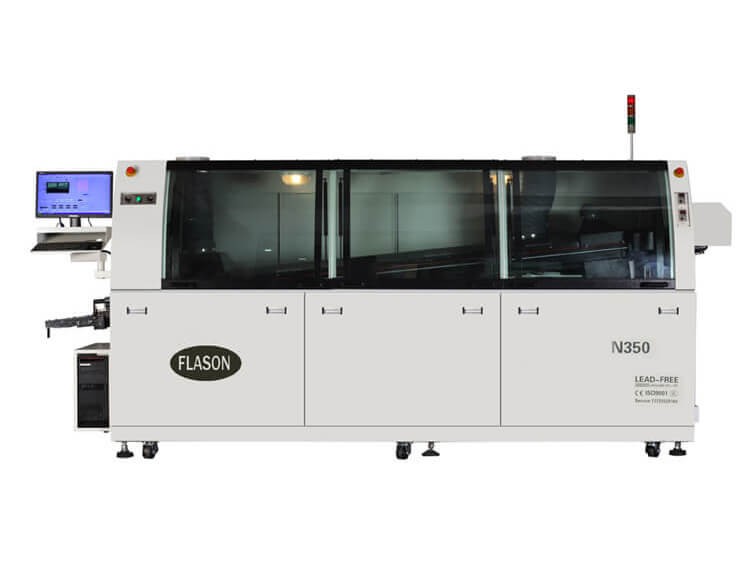

wave soldering Equipment

wave soldering Equipment

  • Weight: 1100KG
  • Dimensions: 3300(L)*1400(W)*1560(H)
  • spray fashion: SMC+ST 6 nozzle
  • Heating zone Length: 1600mm
  • Product description: wave soldering Equipment for DIP PCB soldering-Good Price! Good Quality! Good Service!
  • INQUIRY

wave soldering Equipment

wave soldering Equipment is used for soldering THT insertion components to PCB. It's automatic soldering, so reduced the human working cost. Nowsdays still widely used in PCB production feild.

Introduction:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.



Model No.

Flason N350

Number of pre-heaters

3

Pre-heater passage

1600mm

Body size

3300(L)*1400(W)*1560(H)

Outside dimension

4100(L)*1400(W)*1560(H)

Weight

1100KG

Total/steady consumption

24KW/6-8KW

Air supply

0.5MPa

Preheating style

Hot air

Preheater consumption

220V 8KW

Control  method

PC +PLC

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder application

Lead-free

Solder pot capacity

320KG

Solder pot temperature

300ºC

Solder pot consumption

380V 12KW

Solder temp. control method

PID&SSR

Wave motor consumption

1KW 220V

Solder melting

About 120mins for setting 250ºC

PCB  width

50-350mm

Conveyor speed

300-2000mm/min

Conveyor direction

L?R (R?L optional)

Conveyor inclination

4-7 º

Flux pressure/capacity

3-5 bar/6.5L
