  • Nitrogen Wave Soldering Machine KTN-450

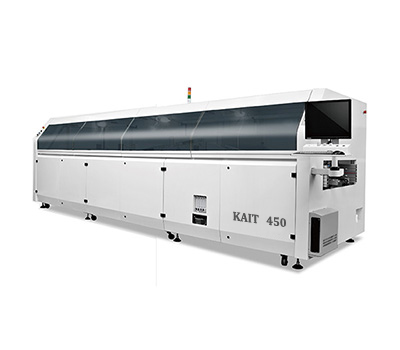

Nitrogen Wave Soldering Machine KTN-450

Nitrogen Wave Soldering Machine KTN-450

  • Nitrogen Soldering Process
  • Solder pot capacity 480kg
  • Weight Approx.2500kg
  • Dimension: 5500*1600*1730mm
  • Product description: Nitrogen Wave Soldering Machine KTN-450,Nitrogen soldering process,PCB no need cleaning, high soldering quality for high end PCB production feild, like Robort arm, military feild etc.
  • INQUIRY

Nitrogen Wave Soldering Machine KTN-450

Specifications:

Nitrogen Wave Soldering Machine KTN-450

Infrared heating method, by this method, the air won't flow, It can keep high level nitrogen level in soldering part. easy to reach oxygen less than 30-50 PPM. High nitrogen level make the solder clean and very few dross nearly no, and for the PCB surface it's very clean, no dross on the surface, so PCB no need cleaning , no need cleaning machine, save many cost for cleaning. High nitrogen level also make the solder more few empty holes inside the solder.

Machine Specification

Model

KTN-450

Solder pot type

4th adjustable

PCB width

Max.50~350mm by Frame

Heating technology

Matrix straight heating, heating efficiency up to 95%

PCB convey height

750±50mm

Solder pot temp.

Room temp. to 350℃,accuracy±1-2℃

Conveyor speed

0-1800mmMin

Solder pot temp. accuracy

±1℃

Angle

3~7 degree

Finger types

Strong titanium finger /customized

Component height limit

Max.100mm

Solder bar adding way

Manually

Wave height range

0~18mm keep steady

Temp. control

P.I.D +SSR

Wave quantity

2

Machine control

PLC+PC

Preheating length

1800mm

Width adjust

Manually/motorized

Preheating zone

4 zones

Flux adding way

Automatic

Conveyor direction

Left to right

Flux flow rate

10~100ml/min

Preheat power

10KW

Spray method

Step motor+ ST-6 nozzle

Preheat temp.

Room temp. to 250℃ (adjustable)

Flux recycle

Tray to collect

Heating model

Infrare Tube

Electricity

3P 5 wires 380V/3P 220V

Solder bar type

Lead-free

Total power

Max.22kw

Solder pot power

14kw

Normal running power

Approx.3-5kw

Solder pot capacity

Approx.480kg

Air supply

4~7KG/CM2

Solder pot material

Cast iron

Dimension

5500*1600*1730mm

Weight

Approx.2500kg

Keywords:

Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
