  • China SMT wave soldering machine factory Supplier Manufacturer N350

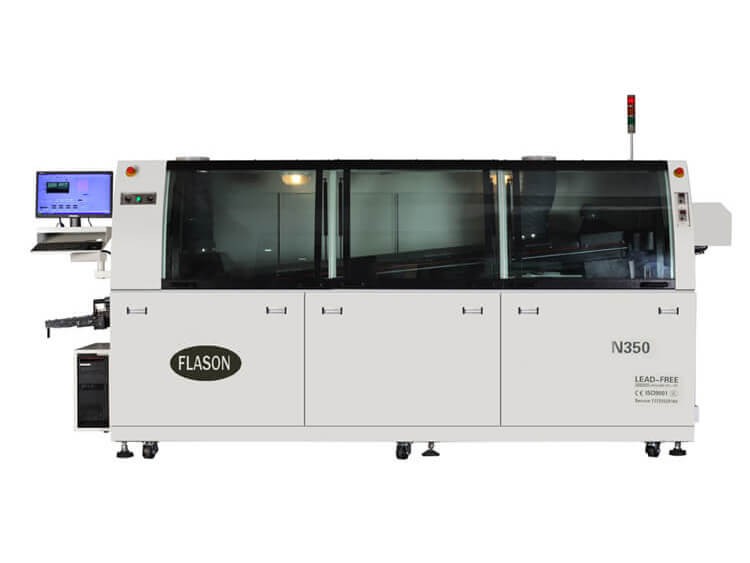

China SMT wave soldering machine factory Supplier Manufacturer N350

China SMT wave soldering machine factory Supplier Manufacturer N350

  • Weight: 1100KG
  • Dimensions: 3300(L)*1400(W)*1560(H)
  • spray fashion: SMC+ST 6 nozzle
  • Heating zone Length: 1600mm
  • Product description: China SMT wave soldering machine factory Supplier Manufacturer, Weight: 1100KG, Dimensions: 3300(L)*1400(W)*1560(H), spray fashion: SMC+ST 6 nozzle, Heating zone Length: 1600mm
  • INQUIRY

China SMT wave soldering machine factory Supplier Manufacturer N350

Introduction:



China SMT wave soldering machine factory Supplier Manufacturer N350

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.

2.Automatic power system, frequency converter control, automatic board input system.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

7.Lead-free solder furnace with independent design, environmental protection and safety,

easy to clean.

8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.

9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

10.With black box memory function, the machine can always store the production management records, improve work efficiency.

11.Automatic claw cleaning function ensure the cleanliness of claws.

12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.


Model No.

Flason N350

Number of pre-heaters

3

Pre-heater passage

1600mm

Body size

3300(L)*1400(W)*1560(H)

Outside dimension

4100(L)*1400(W)*1560(H)

Weight

1100KG

Total/steady consumption

24KW/6-8KW

Air supply

0.5MPa

Preheating style

Hot air

Preheater consumption

220V 8KW

Control  method

PC +PLC

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder application

Lead-free

Solder pot capacity

320KG

Solder pot temperature

300ºC

Solder pot consumption

380V 12KW

Solder temp. control method

PID&SSR

Wave motor consumption

1KW 220V

Solder melting

About 120mins for setting 250ºC

PCB  width

50-350mm

Conveyor speed

300-2000mm/min

Conveyor direction

L-R (R-L optional)

Conveyor inclination

4-7 º

Flux pressure/capacity

3-5 bar/6.5L

Keywords:

Wave Soldering Machine, Dual Rail Wave Soldering Machine, High End Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
