SIPLACE siemens ASM NOZZLE MAGAZINE 7 9XX

Products description

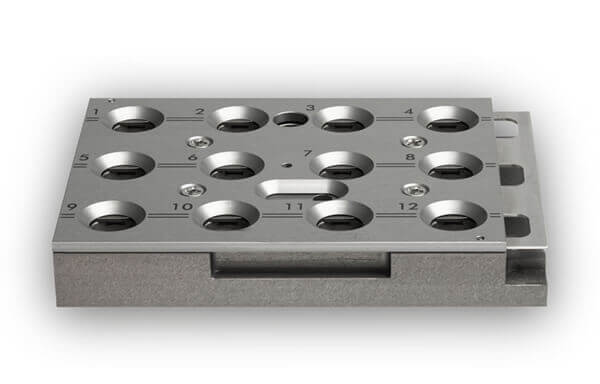

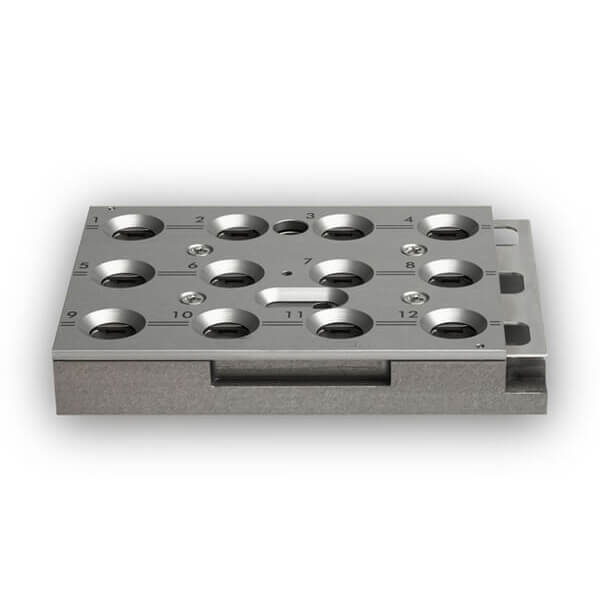

The newly designed full metal nozzle magazine from AdoptSMT offers several advantages compared to the typical plastic ones offered by the OEM. This new magazine is manufactured with a hardened base plate and a non-moving top plate with complete round holes as nozzle garages, allowing the nozzles to sit securely. The nozzles are held in position by robust springs and detents. Numbers of the nozzle garages are clearly marked and can be read easily. The new ASM Siplace Metal Nozzle Magazines are compatible with all Siplace 7xx / 9xx Series machines. They are guaranteed to work as a drop-in replacement and are priced to be competitive with OEM plastic versions.

Ceramic suction nozzle:
901:00322603-05 902:00348186-03
904:00322602-05 905: 03048854-02
906:00345031-04 925:00333625-01
1001:03013307-01 1003:03015869-01
1004:03015840-01 1006:03015854-01

We have many stock of siemens 704/904 nozzles, if you are interested in them, pls feel free to contact flason smt.
You can send inquiry directly to sales@flason-smt.com

Informations for your reference,if you are interested,pls contact me.

NO. P/N Description UNIT MARK


1 00351498-03 Valve Plunger Assy SP12 (plastic) pak SP12AIR VALVE

2 00351500-03 Valve Plunger Assy SP-6 pak SP6 AIR VAVLE

3 00322603-04 NOZZLE Type 701/901 Vectra-Ceramic pak 901 NOZZLE

4 00322602-04 NOZZLE TYPE 704/904 VECTRA-CERAMIC pak 904 NOZZLE

5 00333652-05 NOZZLE TYPE 725/925 Vectra-Ceramic pak 925NOZZLE

6 00345031-03 NOZZLE Type 706/906 Vectra-Ceramic pak 906

7 00346523-02 NOZZLE TYPE 733/933 pak 933

8 00346524-02 NOZZLE TYPE 735/935 pak 935

9 00322591-05 NOZZLE TYPE 737/937 pak 937

10 00322592-04 NOZZLE TYPE 738-938 pak 938

11 00322593-04 NOZZLE TYPE 739-939 pak 939

12 00321854-06 VACUUM NOZZLE TYPE 711/911 VECTRA A230 pak 911

13 00345020-02 VACUUM NOZZLE TYPE 713/913 VECTRA C 130 pak 913

14 00321861-07 NOZZLE TYPE 714/914 pak 914

15 00321862-05 VACUUM NOZZLE TYPE 715/915 VECTRA C130 pak 915

16 00321863-05 VACUUM NOZZLE TYPE 717/917 VECTRA C130 pak 917

17 00321864-05 VACUUM NOZZLE TYPE 718/918 VECTRA 130 pak 918

18 00321867-05 VACUUM NOZZLE TYPE 719/719 VECTRA C130 pak 919

19 03013307-01 PIP.TYP 1001 KPL.-1.4*0.9 pak 1001

20 03015869-01 PIP.TYP 1003 KPL.-0.9*0.5 pak 1003

21 03015840-01 PIP.TYP 1004 KPL.-1.7*1.2 pak 1004

22 03015854-01 PIP.TYP 1006 KPL.-0.45*0.35 pak 1006

23 00330027-03 NOZZLE(SPECIAL VERS.)F. PRESSURE SENSOR ST UNIVERSAL NOZZLE(490)

24 00322545S01 Pipette 3mm x 6mm, 416 neu, komplett pcs 416

25 00322543S01 NOZZLE 8mm, 417 NEW, COMPLETE pcs 417

26 00322544-03 Nozzle Typ 418 complete pcs 418

27 00322546-03 NOZZLE Typ 419 COMPLETE pcs 419

28 03012036-01 Pipette Typ 516 kplt./Twin-head pcs 516

29 03012042-01 Pipette Typ 517 kplt./Twin-head pcs 517

30 03012011-01 Pipette Typ 518 kplt./Twin-head pcs 518

31 03012034-01 Pipette Typ 519 kplt./Twin-head pcs 519

32 590 pcs 590

33 03011583-02 NOZZLE ADAPTER COMPL./ STANDARD SEAL pcs CONNECTOR CORE

34 00354244S01 Rubber Sealing Gasket, Blue, Ball Sleeve pak RUBBER CAP3037984

35 00318290-03 REP.-/RETROFIT KIT SLEEVE IC-HEAD F5HM SZ CERAMIC ROB

36 00308626S02 CABLE: HOOK-UP 2 x 8 mm FEEDER pcs 2*8POWER LINE

37 00325454S01 CONNECTING CABLE 12-88mm S-FEEDER pcs 12-88MMPOWER LINE

38 00345356S01 CONNECTION CABLE FOR 3x8mmS FEEDER pcs 3*8POWER LINE

39 00341183S01 Connection hose, DLM1 pak SMALL WHITE TUBE

40 03000896S01/00319352-02 AIR SUPPLY pcs BUTTERFLY PIECES

41 00316823-01 PCB-ILLUMINAT. CAMERA LOWER GANTRY F5HM pcs PCB CAMERA LIGHT BULB

42 368211 DISTRIBUTOR CAP complete PAS-LX-12 st VACUUM DISTRIBUTIVE DISK

43 00321550-03 Gantry Cable (Cameras) pcs CABLE

44 00321552-02 DEFLECTION ROLLER X AXIS pcs CABLE

45 00321553-03 Gantry Cable (Head Axes) pcs CABLE

46 00321554-03 Gantry Cable (X-Track / CAN-BUS) pcs CABLE

47 00321555-03 Gantry Cable (dp1-Axis) pcs CABLE

48 00321556-03 Gantry Cable (Star / z-Axes) pcs CABLE

49 00321557-03 Gantry Cable (X-Motor) pcs CABLE

50 00321558-03 Gantry Cable (X-Motor / Y-Track) pcs CABLE

51 00322256S01 Portalkabel Optik pcs CABLE

52 00322257-01 Portalkabel Kopfachsen pcs CABLE

53 00322258-01 Portalkabel X-Spur / CAN-Bus pcs CABLE

54 00322259-01 Portalkabel dp1-Achse pcs CABLE

55 00322261-01 Portalkabel Stern/z-Achsen pcs CABLE

56 00322262-01 Portalkabel X-Motor pcs CABLE

57 00322264-01 Portalkabel X-Motor/Y-Spur pcs CABLE

58 00322265-01 Portalkabel IC2-Kopf pcs CABLE

59 00320041S01 Toothed belt synchroflex 2.5 T2/90 pcs BELT

60 00329522-01 TOOTH BELT PCB-CONVEYOR 495 S50 pcs BELT

61 00329526-01 PCB conveyor BELT 400 S50 pcs BELT

62 00356850-01 TOOTH BELT Synchroflex 2,5T5/1500 pcs BELT

63 00356851-01 Toothed belt Synchroflex 2,5T5/990 pcs BELT

64 00359917-01 Toothed belt Synchroflex 2.5 T5/1315 pcs BELT

65 00364847-01 Toothed belt Synchroflex 2.5 T5/1160 pcs BELT

67 00200196-02 Zahnriemen Brecoflex 13T5/1105 ST BELT

68 00334936S01 Tooth belt T2, DLM1 pcs BELT

70 00200341-01 TOOTHBELT SYNCHROFLEX 6 T2,5/177,5 ENDL ST BELT

70 00318549-01 TOOTHED BELT SYNCHROFLEX 12ATS5/280 ST BELT

71 00200333-01 TOOTHED BELT SYNCHROFLEX 6 T2,5/245 ST BELT

00318551S01 Pneumatic Hose, Pck of 3, black, 4meters ST EXHAUST PIPE

72 200499 32ATS5/1655 S15/F3 BELT

73 200532 50ATS5/2795 S15/F3 Y AXLE BELT

74 318631 50ATS5/2795 F4/F5/F5HM/CF Y AXLE BELT

75 318557 28ATS5/1655 F4/F5/F5HM/S20 X AXLE BELT

76 334180 32ATS5/1700 F5HM/S23HM/S25HM/S27HM/CS/CF X AXLE BELT

77 318630 50ATS5/2570 S20 Y AXLE BELT

78 337389 50ATS5/2300 S23HM/S25HM/CS Y AXLE BELT

79 331076 50ATS5/1205 HS50/HS60/D4 X AXLE BELT

80 362671 S27HM Y AXLE BELT

3038308 TOOTHED BELT SYNCHROFLEX 50ATS5/1205 Y AXLE BELT

81 00315977-01 Schutzschlauch Expando 1,60m Stueck pcs SNAKESKIN SET

82 00351359-01 Netzteil fr SIPLACE Zufhrmodule pcs FEEDER POWER

83 00342023S03 PICK-UP WINDOW COMPLETE pcs 3*8 SWAGING COVER

84 00320043S01 O-RING 16*2 E 70 B pcs DP MOTOR O-RING

85 00320023S01 O-Ring 2,5*1 NBR 70 B pcs O-RING

86 00320047S01 O-Ring 10*1,5 NBR 70 B pcs O-RING

87 00320048S01 O-Ring 14*1,5 NBR 70 B pcs O-RING

88 00343022S01 O-Ring 30*1 pcs O-RING

89 00350661S01 O-Ring 8*1 Viton 75 pcs O-RING

90 00350662S01 O-Ring 10*1 Viton 75 pcs O-RING

91 00201179S01 O-Ring 8*1 NBR 70 B pcs O-RING

92 00323535S02 O-Ring 6*1 Viton 60 - gefettet *E=00323223S02 pcs O-RING

93 00318551S01 Pneumatic Hose, Pck of 3, black, 4meters ST EXHAUST PIPE

94 00352931-02 SIPLACE clean sticks pcs COTTON BAR

95 00315253-02 SIPLACE cleaning-tissue PAK OIL LENSES

96 NOZZLE BOX SET


1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
