Home > Wave Soldering Machine

  • Small PCB Assembly line wave soldering machine
Small PCB Assembly line wave soldering machine

Small PCB Assembly line wave soldering machine

  • Weight: 700KG
  • Dimensions: 2600(L)*1200(W)*1600(H)
  • spray fashion: SMC+ST 8 nozzle
  • Heating zone Length: 800mm
  • Product description: Small PCB Assembly line wave soldering machine-Good Price! Good Quality! Good Service!
  • INQUIRY

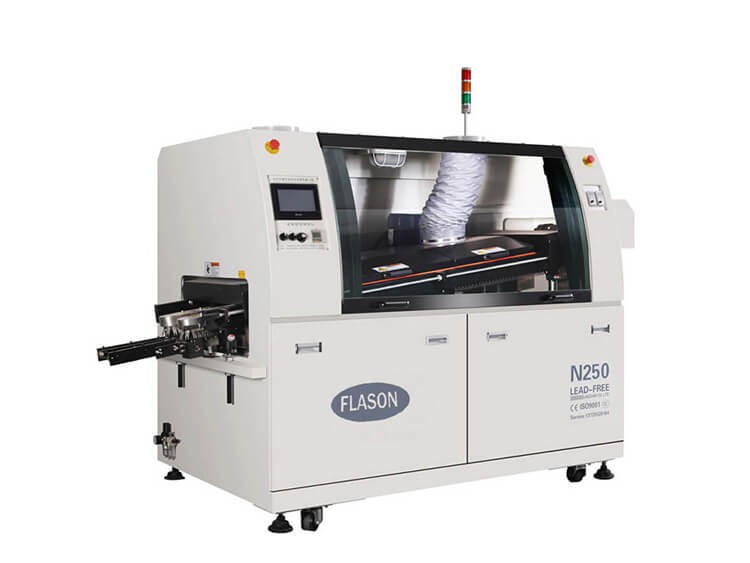

Small smt assembly line wave soldering machine N250

Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.

  1. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

  2. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.

  3. PLC is used to control the machine, to ensure the reliability and stability of the system.

  4. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

  5. Special alloy solder fingers, strengthened double v-groove.

  6. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

  7. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

  8. Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

  9. Timer startup feature for solder pot, solder melted within 90 minutes.

  10. Automatic finger cleaner ensure the cleanliness of solder fingers.

    Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.



Model No.

FLASON N250

Number of Pre-heaters

2

Pre-heater passage

800mm

Body size

1800(L)*1200(W)*1600(H)

Outside dimension

2600(L)*1200(W)*1600(H)

Weight

700KG

Total/steady consumption

11KW/4-6KW

Air supply

0.5MPa

Preheating style

Hot air

Preheater consumption

220V 5KW

Control  method

Press key +PLC ?Option: touch screen, PC?

Range of temp. set-point

Room temperature---300?

Preheating time

About 10-15mins for setting 150?

Solder application

Lead-free / Sn-Pb

Solder pot capacity

220KG

Solder pot temperature

300?

Solder pot consumption

380V 6KW

Solder temp. control method

PID&SSR

Wave motor power

500W 220V

Solder melting

About 120mins for setting 250?

PCB  width

50-250mm

Conveyor  speed

0-1800mm/min

Conveyor  direction

L?R (R?L optional)

Conveyor Inclination

4—7 º

Flux pressure

3-5 bar

Flux capacity

3.2L


Keywords:

smt wave soldering machine,smt soldering oven, THT soldering machine, SMT soldering machine, SMT assembly line dual wave soldering machinePCB soldering machine, SMT assembly machinePCB soldering dual wave machine, LED wave soldering machine, LED PCB wave soldering machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, THT wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com



FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
