  • Panasonic NPM D3A Pick and Place Machine

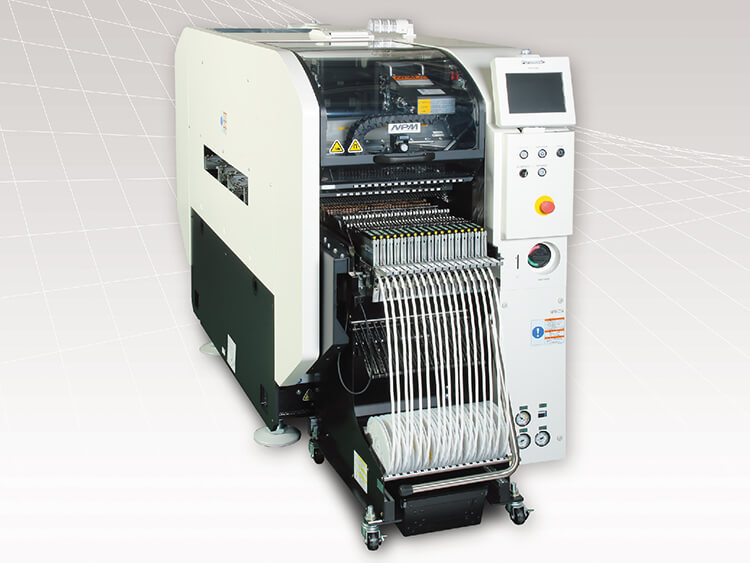

Panasonic NPM D3A Pick and Place Machine

Panasonic NPM D3A Pick and Place Machine

  • Max PCB:L 510 × W 590mm
  • Placing Speed: 46000CPH
  • Max Feeder: 68 reels
  • Weight: 1680kg
  • Product description: Panasonic NPM D3A Pick and Place Machine, Max PCB:L 510 × W 590mm, Placing Speed: 46000CPH, Max Feeder: 68 reels, Weight: 1680kg, W832×D2652×H1444mm
  • INQUIRY

Panasonic NPM D3A Pick and Place Machine

Specifications:



Panasonic NPM D3A Pick and Place Machine

Adoption of the light-weight 16-nozzle head V3
Improving Placement tact time by simultaneously driving X-/Y-axes and selecting optimal pathways during component recognition operation.
Advancement of head drive unit motion control
Improving placement tact time by further advancing motion control and thereby reducing X-/Z-axis travel time.
Use of new pickup operation algorithm
Improving effective productivity by enhancing pickup algorithm for microchips.

Panasonic NPM D3A Pick and Place Machine

Model ID

NPM-D3A

PCB dimensions (mm) *1

Dual-lane mode

L 50 × W50 ~ L 510 × W 300

Single-lane mode

L 50 × W50 ~ L 510 × W 590

PCB exchange time

Dual-lane mode

0s* *No 0s when cycle time is 3.6 s or less

Single-lane mode

3.6s* *When selecting short conveyors

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA

Pneumatic source *2

0.5 MPa, 100 L /min (A.N.R.)

Dimensions (mm) *2

W 832 × D 2 652 *3 × H 1 444 *4

Mass

1 680 kg (Only for main body : This differs depending on the option configuration.)

Placement head

Lightweight 16-nozzle head V3 (Per head)

High production mode [ON]

High production mode [OFF]

Max. speed

46 000 cph (0.078 s/ chip)

38 000 cph (0.095 s/ chip)

Placement accuracy (Cpk≧1)

±37 μm/chip

±30 μm / chip (±25 μm / chip *5)

Component dimensions (mm)

0402 chip *6 ~ L 6 × W 6 × T 3

03015 *6*7/0402 chip *6 ~ L 6 × W 6 × T 3

Component supply

Taping

Tape : 4 / 8 / 12 / 16 mm

Max. 68 (4, 8 mm tape, Small reel)

*1 :  Due to a difference in PCB transfer reference, a direct connection with NPM (NM-EJM9B) / NPM-W (NM-EJM2D) /NPM-W2 (NM-EJM7D) dual lane specs cannot be established.
*2 :  Only for main body
*3 :  Dimension D including feeder cart
*4 :  Excluding the monitor, signal tower and ceiling fan cover.
*5 :  ±25 μm placement support option. (Under conditions specified by Panasonic)
*6 :  The 03015/0402 mm chip requires a specific nozzle/feeder.
*7 :  Support for 03015 mm chip placement is optional. (Under conditions specified by Panasonic : Placement accuracy ±30 μm / chip)
* Placement tact time,inspection time and accuracy values may differ slightly depending on conditions
* Please refer to the specification booklet for details.
