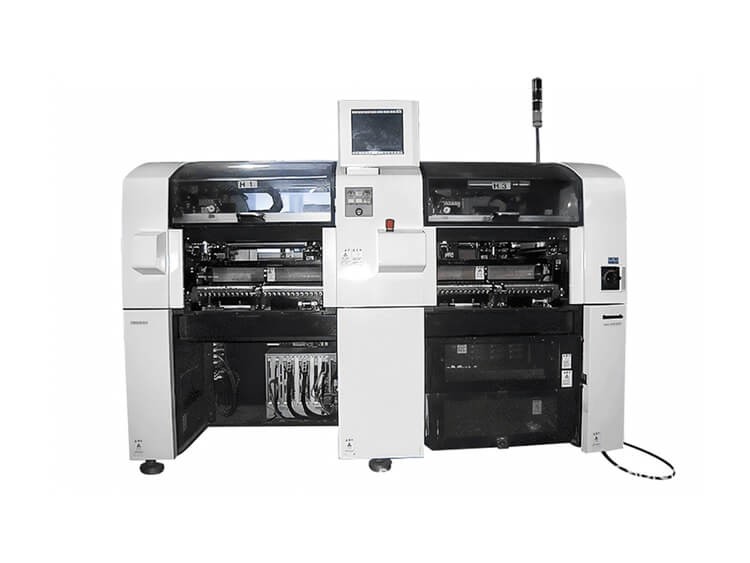

Panasonic CM202-DS Pick and Place Machine
Sector Specification(CM202-DS) Specification(CM201-DS)
ModelNo. KXF-E24C KXF-E14C
TactTime 0.088sec/chip 0.176sec/chip
B'd change: 3.0 sec
Centering method: Upward Vision
PCB Size(L x W) MAX.460 x 360mm,MIN.50 x 50mm
Placement range: 0°~ 359° θ ±1° Patch Accuracy: ±0.05mm/chip
FeederStation 104 stations(Double Feeder) 52 stations(Double Feeder)
Components range: 0603 ~ 24mm x 6t
Feeder: 8~72mm Tape Feeder/Bulk Feeder/Vibration feeder/
Conv.Transfer Right→Left(Left→Right:Op.) FrontFix (RearFix :Op.)
Power AC200V 3PH,50/60Hz, 2.5kVA AC200V 3PH,50/60Hz, 1.5kVA
Air 0.49MPa 400L/min 0.49MPa 200L/min
2350 x 1950 x 1430
1390 x 1950 x 1430
Weight(kg) 2620 1460
