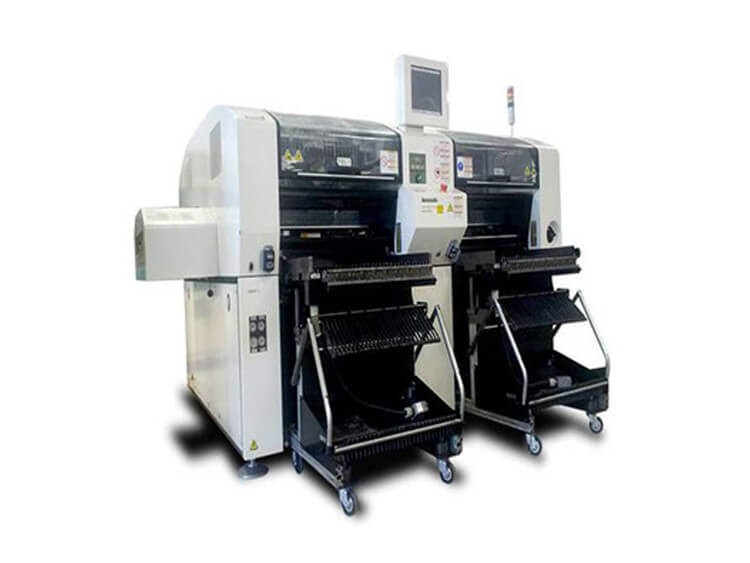

Panasonic CM602 Pick and Place Machine

Panasonic CM602 Pick and Place Machine

  • Panasonic CM602 Pick and Place Machine
  • Mounting Speed: 100,000 CPH
  • Application components:0402 (01005)
  • Panasonic CM602
  • Product description: Panasonic CM602 Pick and Place Machine -Good Price! Good Quality! Good Service!
  • INQUIRY

panasonic CM602 pick and place machine

Products Description:

Panasonic CM602 PCB Placement Machine|Panasonic Machine

Features & Benefits:
One platform solution for any kind of production
Commonality with existing equipment
Linear motor drive increases reliability and reduces maintenance
Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards

Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor. Fully compatible with our successful CM series feeder units, nozzles and operation, this single platform solution can place up to 100,000 components per hour by selecting the best-suited combination of high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your productivity to new heights.

Model ID

CM602-L

PCB dimensions (mm)

L 50 x W 50 to L 510 x W 460

High-speed head

12 nozzles

Max.speed

100 000 cph (0.036 s/chip)

Placement accuracy

±40 µm/chip (Cpk1)

Component dimensions (mm)

(01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm

High-flexibility head

LS 8 nozzles

Max.speed

75 000 cph (0.048 s/chip)

Placement accuracy

±40 µm/chip, ±35 µm/QFP 24 mm,

±50 µm/QFP <24 mm (Cpk1)

Component dimensions (mm)

(01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8

When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6

Multi-functional head

3 nozzles

Max.speed

20 000 cph (0.18 s/QFP)

Placement accuracy

±35 µm/QFP (Cpk1)

PCB exchange time

0.9 s (Board length:up to 240 mm Under optimum conditions)

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA

Pneumatic source *1

0.49 MPa, 170 L /min(A.N.R.)

Dimensions (mm)

W 2 350 x D 2 290 *2 x H 1 430 *3

Mass *4

3 400 kg
