  • Offline horizontal Inserter plug-in machine A180

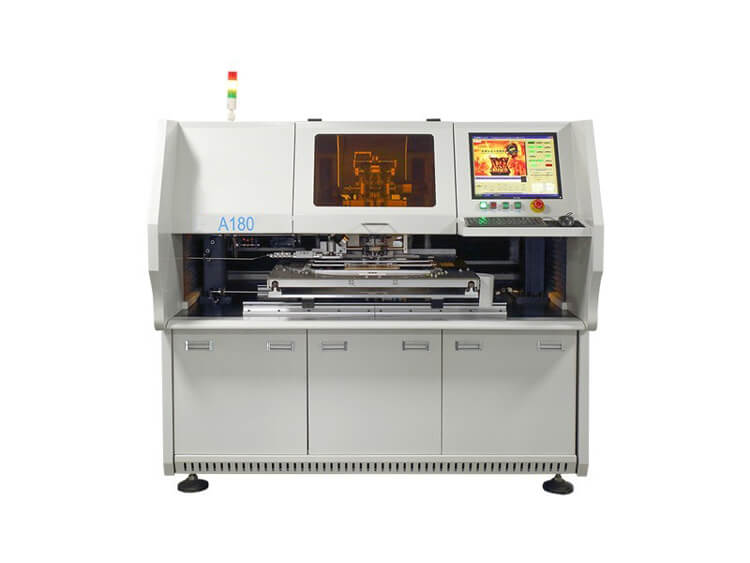

Offline horizontal Inserter plug-in machine A180

Offline horizontal Inserter plug-in machine A180

  • Theoretical speed 22000PCS / H
  • Component span Double hole distance 5MM ~ 20MM
  • weight 1600KG
  • Dimension: 1700mm × 1300mm × 1600mm
  • Product description: Offline horizontal Inserter plug-in machine A180, Theoretical speed 22000PCS / H, Component span Double hole distance 5MM ~ 20MM, weight 1600KG, Dimension: 1700mm × 1300mm × 1600mm
  • INQUIRY

Offline horizontal Inserter plug-in machine A180

Specifications:

Offline horizontal Inserter plug-in machine A180 is a new generation of horizontal interconnect interpolator independently developed and produced by our company.The essence of horizontal interpolation machine is integrated into one, high speed, high precision, high performance to achieve non-stop refueling, unique servo control system, can Greatly reduce the amount of jumper, easy to understand the operation platform, the realization of the man-machine interface dialogue. The union of practical experience and scientific theory, bigGreatly improved product quality and production efficiency.

Theoretical speed

22000PCS / H

Poor insertion rate

Less than 200PPM

Insertion direction

Parallel 0 , 90 , 180 , 270

Component span

Double hole distance 5MM ~ 20MM (specially inserted jumper 5MM ~ 30MM)

Substrate size

Minimum 50MM * 50MM, maximum 450MM * 450MM

Substrate thickness

0.79 ~ 2.36MM

Component types

Capacitor, transistor, diode, resistor, fuse, etc.

Jumper (JW)

Independent delivery method.0.5mm ~ 08MM tinned copper wire

Component Lead Shear Angle Length

1.0 ~ 2.2MM (adjustable)

Component lead angle

5-30  (adjustable)

Machine size (length * width * height)

Host 1700mm × 1300mm × 1600mm + (10 stations) 1200mm × 1450mm × 1200mm

Machine weight

1600KG

Use power / power

220V, AC (single-phase) 50 / 60HZ, 2.0KVA / 1.5KW (energy-saving)

System protection

Uninterruptible power supply (UPS) configuration, can run for 15 minutes after power failure

Air pressure / gas consumption

0.6MPA / 0.3m3 / min

Machine noise

Less than 65 dB

Hole position correction method

Machine vision system, multi-point MARK vision correction

Drive System

AC servo, AC motor

Data entry method

USB interface input (EXCEL file format)

Control System

Chinese and English interface, window platform, LCD display

Operation mode

Full / Semi-Auto / Manual

Worktable operation mode

Clockwise and counterclockwise

Circuit board conveying method

Offline / Online (optional)
