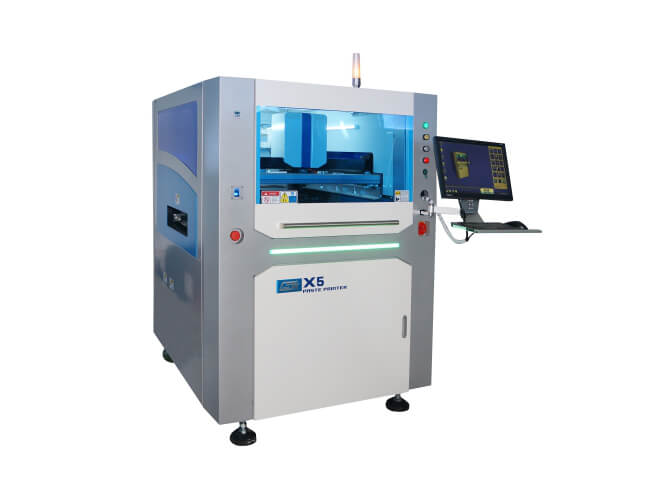

SMT Stencil Printer X5 HTGD Automatic

SMT Stencil Printer X5 HTGD Automatic

  • Max PCB:450mm x 350mm
  • Printing repeatability:±20.0 um
  • Dimension:1152x141x1540mm
  • Weight: 1000KG
  • Product description: SMT Stencil Printer X5 HTGD Automatic, Max PCB:450mm x 350mm, Printing repeatability:±20.0 um, Dimension:1152x141x1540mm, Weight: 1000KG
  • INQUIRY

Automatic SMT Stencil Printer HTGD X5

Products description


1.X5 dedicated adjustment platform

X5 special high-rigidity UVW module drive mechanism and inverted triangle Z-axis lifting mechanism effectively improve the stability of platform adjustment, realize ultra-fine transmission under micro-motion adjustment, and make the machine meet the requirements of higher precision printing. The platform height is automatically calibrated according to the PCB thickness setting, intelligent and fast, simple and reliable in structure; software adjustable pressure, elastic side pressure, edge locking and substrate compression. Adopt X5 special mathematical operation model, repeat accuracy ±10.0 [email protected] σ, Cp ≥ 2.0.

2. Programmable floating self-adjusting linear motor drives the printing head

Intelligent programmable settings, two independent direct-connected motor-driven scrapers, built-in precise pressure control system. , No need to take into account the change of squeegee blade type, length, weight or thickness. Programmable to achieve flexible printing process; designed for the different pressure of the front and rear squeegee and the stability of lifting, prevent the leakage of solder paste and the blade has a certain flexibility The clamping design of the squeegee, the pressure of the squeegee, the lifting speed, the printing speed, and the printing range are all software adjustable, and a variety of demolding methods are provided for customers to adapt to PCB boards with different tinning requirements, providing customers with a good printing Control platform.

3. Cleaning system

The new type of wiping system guarantees full contact with the steel mesh; three cleaning methods: dry, wet, and vacuum, and can be freely combined; soft and wear-resistant rubber wipers, clean thoroughly, easy to disassemble, and the length of the wiper is universal.

4. Highly adaptable steel mesh frame clamping system

Realize the printing of screen frames of various sizes, and can realize the rapid change of models in the production process; Y-direction automatic positioning.

5. Electronic control system

The use of self-developed modular integrated circuits is safe and easy to maintain; the industry's advanced industrial control system can be used to modify the parameters of the machine during the movement.

6. Image and light path system

New light path system—two ring lights and coaxial lights up and down, equipped with stepless brightness adjustment function, making various types

Mark points can be well recognized (including uneven Mark points), suitable for various types of PCBs with different colors, such as tin plating, copper plating, gold plating, tin spraying, and FPC. Four-way light source is adjustable, telecentric lens, stencil and PCB board are simultaneously illuminated up and down.

7. Simple and easy-to-use graphical Chinese/English operation interface

Use windows7 operating system and independently developed graphical man-machine interface: especially for the navigation effect of program files, which is convenient for all operators to quickly familiarize themselves with the operation; menu-style Chinese/English switching, operation log, fault record/fault self-diagnosis/fault analysis Reminder/light alarm and other functions make the operation simple and convenient.

8. 2D solder paste printing quality inspection and SPC analysis

The 2D function can quickly detect printing defects such as offset, less tin, missing printing, and even tin, and the detection points can be increased arbitrarily;

The SPC software can analyze the CPK index of the machine through the samples collected by the machine to ensure the printing quality.

Specifications

X5 Specifications

PCB Parameter

Max PCB (X x Y)

450mm x 350mm

Min PCB(Y x X)

50mm x 50mm

PCB Thickness

0.4mm~6mm

Warpage

Max. PCB diagonal 1%

Max PCB weight

3Kg

PCB adge clearance

Up to 3 mm

Max bottom clearance

20mm

Conveyor Speed

1500mm/S(Max)

Conveyor height

900±40mm

Conveyor direction

LRRLLLRR

Conveyor Method

One Rail

PCB Clamping Method

Programmable elastic side clamp + automatic adjustment of board thickness + edge locking substrate compression (options: 1, bottom overall suction cavity vacuum; 2, bottom multiple(Point partial vacuum)

PCB Support Method

Magnetic thimble + contour block (option one, vacuum chamber; option two, dedicated workpiece fixture)

Printing Parameter

Printing head

Suspended intelligent printing head (two independent direct-coupled motors)

Frame size

470mm x 370mm~737 mm x 737 mm

Max Printing area(XxY)

450mm x 350mm

Squeegee type

Steel squeegee/rubber squeegee (angle 45°/55°/60° according to printing process matching selection)

Scraper length

300mm(Option 200mm~500mm )

Scraper height

65±1mm

Scraper thickness

0.25mm Diamond-like carbon

Printing Method

Single or double squeegee printing

Demold length

0.02 mm to 12 mm

Printing Speed

0 ~ 200 mm/S

Printing Pressure

0.5kg to 10Kg

Printing Stroke

±200 mm(from center)

Camera Parameter

View Field (FOV)

8mm x 6mm

Platform Adjustment range

X:±5.0mm,Y:±7.0mm,θ:±2.0°

Datum point type

Standard shape reference point (see SMEMA standard), pad/hole

Camera System

Separate camera, up/down separate imaging vision system, geometric matching positioning

Performance parameter

Repetitive accuracy of image calibration

±10.0 um @6 σ,Cp or more than 2.0

Printing repeatability

±20.0 um @6 σ,Cp or more than 2.0

Cycle time

Less than 7s(not including printing

Changeover time

Less than 5mins

Equipment

Power

AC220V±10%,50/60HZ,15A

Compressed Air

4~6Kg/cm2, 10.0 diameter pipe

Operation system

Windows 7

Machine size

L(1152mm)x W(1415mm)x H(1540mm)

Machine weight

1000Kg
