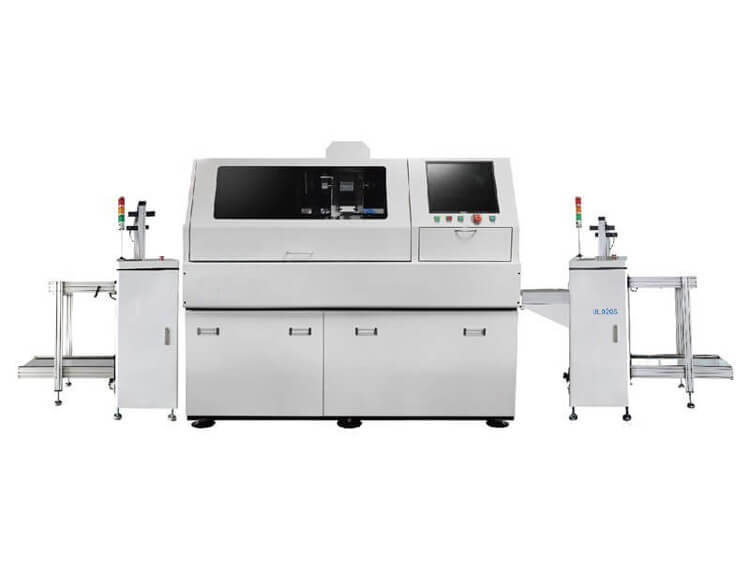

High-speed vertical Inserter plug-in machine RGS

High-speed vertical Inserter plug-in machine RGS

  • Theoretical speed 23000PCS / H
  • Lead span Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM
  • weight 1600KG
  • Size: 1700mm × 1300mm × 1600mm
  • Product description: High-speed vertical Inserter plug-in machine RGS, Theoretical speed 23000PCS / H, Lead span Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM, weight 1600KG, Size: 1700mm × 1300mm × 1600mm
  • INQUIRY

High-speed vertical Inserter plug-in machine RGS

Specifications:

Computerized,Chinese&English interface,Convenient & user friendly
Intensive insertion mode,0-360°with 1°increment
Imported precision ball screw and AC servo motor drive,Positioning
accuracy<0.001mm
Machine vision system,improve position alignment,Muti fiducials ,
maintain accuracy of insertion
USB port for data transmission
High speed up to 22000 cph,greatly increased 20% compared with last
generation machine
Maximum of 4 lead span capability
In-line production capability
Component pressing by connecting rod (High Stability)
Component feeding by AC servo motor
Cutting & clinching by servo motor (Adjustable)

Theoretical speed

23000PCS / H

Insertion direction

360  in 1  increments

Lead span

Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM (optional)

Substrate size

Minimum 50MM * 50MM, maximum 350MM * 280MM

Substrate thickness

0.79 ~ 2.36MM

Component specifications

The maximum height is 23MM and the maximum diameter is 13MM

Component types

Capacitors, transistors, triodes, LED lights, key switches, resistors, connectors, coils, potentiometers, fuse holders, fuses and other vertical taping packaging materials.

Component Lead Shear Angle Length

1.2 ~ 2.2MM (adjustable)

Component lead angle

10-35  (adjustable)

Machine size (length * width * height)

Host 1700mm × 1300mm × 1600mm + (10 stations) 1200mm × 1450mm × 1200mm

Machine weight

1600KG

Use power / power

220V, AC (single-phase) 50 / 60HZ, 2.0KVA / 1.6KW (energy-saving)

System protection

Uninterruptible power supply (UPS) configuration, can run for 15 minutes after power failure

Air pressure / gas consumption

0.6MPA / 0.3m3 / min

Machine noise

Less than 65 dB

Hole position correction method

Image vision system, multi-point MARK vision correction

Drive System

AC servo, AC motor

Data entry method

USB interface input (EXCEL file format)

Control System

Chinese operation interface (WINDOWS system control platform) Dell LCD monitor

Circuit board conveying method

Fully automatic (optional transport direction)
