  • Heller 1936 MK7 SMT Reflow Oven

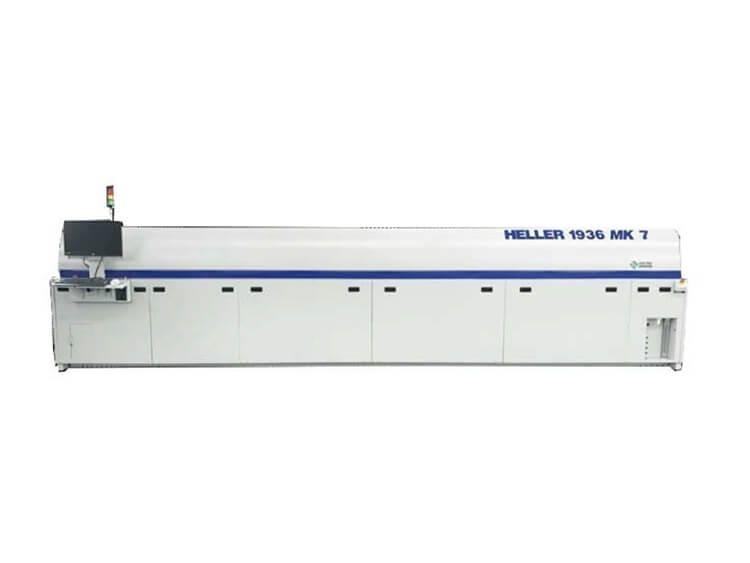

Heller 1936 MK7 SMT Reflow Oven

Heller 1936 MK7 SMT Reflow Oven

  • Heating Zones: Top 10 / Bottom 10
  • PCB Width:50 - 560 mm
  • Weight: 2120 kg
  • Dimension: W5900 x D1520 x H1440 mm
  • Product description: Heller 1936 MK7 SMT Reflow Oven, Heating Zones: Top 10 / Bottom 10, PCB Width:50 - 560 mm, Weight: 2120 kg, Dimension: W5900 x D1520 x H1440 mm
  • INQUIRY

Heller 1936 MK7 SMT Reflow Oven

Products description



Heller 1936 MK7 SMT Reflow Oven

The 1936 MK7 from Heller Industries Inc is a Reflow Soldering Equipment with Heating Zone Length 590 mm, Max Pcb Width 558.8 mm.
main feature
A. Multi-temperature zone design, more temperature control points, to meet the requirements of different temperature curves
B. Effectively eliminate voids, the total void area can be controlled below 1%
C. Efficient production capacity, the average production cycle is 30~60 seconds
D. High-efficiency oil-free vacuum pump unit for shortest depressurization time
E. Efficient flux recovery system to prevent flux residues
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!

1936 MK7 (Air)

1936 MK7 (Nitrogen)

Power Input (3 Phase) Standard

480 volts

480 volts

Breaker Size

100 amps @ 480v

100 amps @ 480v

kW

9 - 15 Continuous

9 - 15 Continuous

Typical Run Current

30 - 35 amps @ 480v

30 - 35 amps @ 480v

Optional Power Inputs Available

208/240/380/400/415 VAC

208/240/380/400/415 VAC

Frequency

50/60 Hz

50/60 Hz

Sequential Zone Turn On

S

S

Overall Oven Dimensions

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

Typical Net Weight

6380 lbs. (2900 kg)

7180 lbs. (3280 kg)

Typical Shipping Weight

7875 lbs. (3580 kg)

8980 lbs. (4080 kg)

Typical Shipping Dimension

244” x 73” x 83”

620 x 185 x 210 cm

Overall Oven Dimensions

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H

Height From Floor

35.5" + 2.0"  (90 cm + 5 cm)

35.5" + 2.0"  (90 cm + 5 cm)

Maximum PCB Width

22" (55 cm)

22"  (56 cm)

Space Required Between PCB's

0.0" (0.0 cm)

0.0" (0.0 cm)

Conveyor Length On-Load

18" (46 cm) *

3" (7.5 cm)  *

Conveyor Length Off-Load

18" (46 cm) *

3" (7.5 cm)  *

Heated Tunnel Length

135"  (343 cm)

135"  (343 cm)

Process Clearance Above Mesh Belt

2.3" (5.8 cm)

2.3" (5.8 cm)

Mesh Belt Pitch

0.5" (1.27 cm)

0.5" (1.27 cm)

Maximum Conveyor Speed

74"/Min (188 cm/min.)

74"/Min (188 cm/min.)

Height From Floor

35.5" + 2.0"  (90 cm + 5 cm)

35.5" + 2.0"  (90 cm + 5 cm)

Maximum PCB Width

22" (55 cm)

22"  (56 cm)

Space Required Between PCB's

0.0" (0.0 cm)

0.0" (0.0 cm)

Conveyor Length On-Load

18" (46 cm) *

3" (7.5 cm)  *

Conveyor Length Off-Load

18" (46 cm) *

3" (7.5 cm)  *

Heated Tunnel Length

135"  (343 cm)

135"  (343 cm)

Process Clearance Above Mesh Belt

2.3" (5.8 cm)

2.3" (5.8 cm)

Mesh Belt Pitch

0.5" (1.27 cm)

0.5" (1.27 cm)

Maximum Conveyor Speed

74"/Min (188 cm/min.)

74"/Min (188 cm/min.)

Conveyor Direction Left to Right

S

S

Conveyor Direction Right to Left

O

O

Conveyor Speed  Control

Closed Loop

Closed Loop

Standard

37.0" + 2.0"  (94 cm + 5 cm)

37.0" + 2.0"  (94 cm + 5 cm)

Height from Floor – Optional

32.6" +3.9" / -.4"       (83 cm + 10 cm / - 1 cm)

32.6" +3.9" / -.4"

(83 cm + 10 cm / - 1 cm)

Clearance Above & Below Conveyor Pins

1.15" (2.9 cm)

1.15" (2.9 cm)

Length ofPCB Support Pins

.187" (4.75 mm)

.187" (4.75 mm)

3 mm long support pins

O

O

Minimum/Maximum  Board  Width

2.0" – 22" (5 – 56 cm)

2.0" - 22"  (5 – 56 cm)

Top & Bottom

10

10

Heater Type

Instant response open coil

Instant response open coil

Heater Material

Nichrome

Nichrome

Profile Change Time

5 – 15 minutes

5 - 15 minutes

Accuracy of Temperature Controller

+ .1C

+ .1C

Cross-Belt Temperature Tolerance

+ 2.0C

+ 2.0C

Heater Wattage Per Zone

6000 w**

6000 w**

Temperature Range Standard

60-350C

60-350C

High Temperature Up to 450C

O

O

Number of Cooling Zones Standard

3

3

Additional Cooling Zones

O

O

Water Cooling

-

O

KIC Profiling Software

S

S

Signal Light Tower

S

S

Powered Hood Lift

S

S

Five (5)Thermocouple Profiling

S

S

Redundant Alarm Sensors

O

O

Intelligent Exhaust System

O

O

KIC Profiler / ECD Profiler

O

O

Center Board Support

O

O

Board Drop Sensor

O

O

Board Counter

O

O

Bar Code Reader

O

O

Custom Paint & Decal

O

O

Battery Backup for Conveyor and PC

O

O

GEM/SECS Interfacing

O

O

Notes:        S = Standard, O = Optional.      * A 12" (30 cm) Conveyor extension is an available option  ** 380V heater wattage 4800
Specifications continue on reverse.
A continuous program of product improvement may result in changes to specification and performance.
The right is reserved to institute these improvements without notice or liability.
