  • Heller 1826 MK7 SMT Reflow Oven

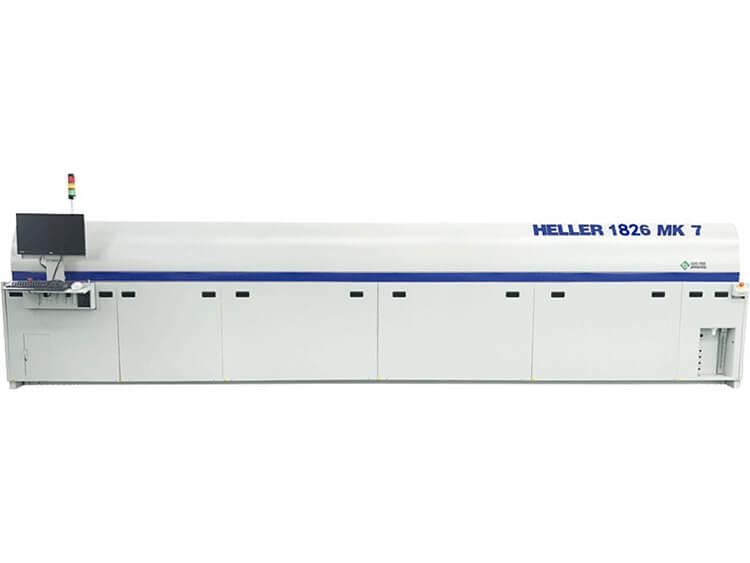

Heller 1826 MK7 SMT Reflow Oven

Heller 1826 MK7 SMT Reflow Oven

  • Heating Zones:Top 8 / Bottom 8
  • PCB Width:50 - 560 mm
  • Weight: 1970 kg
  • Dimension: W4650 x D1520 x H1440 mm
  • Product description: Heller 1826 MK7 SMT Reflow Oven, Heating Zones:Top 8 / Bottom 8, PCB Width:50 - 560 mm, Weight: 1970 kg, Dimension: W4650 x D1520 x H1440 mm

Heller 1826 MK7 SMT Reflow Oven

Products description

Heller 1826 MK7 SMT Reflow Oven

The 1826 MK7 is a high volume reflow oven system with 8 heated zones and belt speeds up to 1.88m/min. The 1826 MK7 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options. The 12” wide heater modules offer profile compatibility with competitor systems.
Built-in Thermal Monitoring
Nitrogen Capable to < 100 ppm
Energy Management System
Virtually No Maintenance
12” Wide Heater Modules
Key Features
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!

Machine Model

Heller 1826MK7

Heating Zones

Top 8 / Bottom 8

Cooling Zones

Top 2

PCB Width

50 - 560 mm

Max Conveyor Speed

188 cm/min

Cross-Belt Temperature Tolerance

± 2 ℃

Accuracy of Temperature Controller

± 0.1 ℃

Conveyor Width Adjustment

Manual Motor Control

Operating System

Windows 10

Overall Dimensions

W4650 x D1520 x H1440 mm

Typical Net Weight

Approx. 1970 kg
