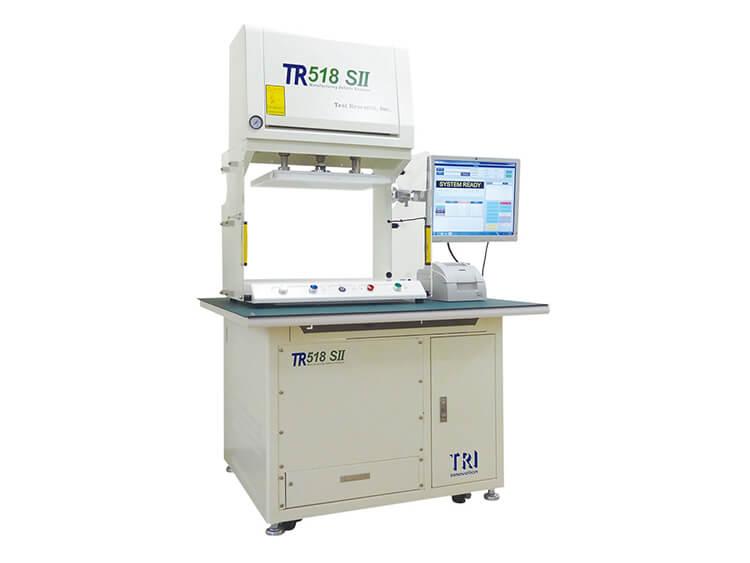

In-Circuit Tester TRI ICT TR518 SII Offline

In-Circuit Tester TRI ICT TR518 SII Offline

  • max PCB: 330x250mm
  • Weight: 220KG
  • Dimension: WxDxH 1000 x 900 x 1770 mm
  • Product description: In-Circuit Tester TRI ICT TR518 SII Offline, max PCB: 330x250mm, Weight: 220KG, Dimension: 1000 x 900 x 1770 mm

In-Circuit Tester TRI ICT TR518 SII Offline

Product Specification

In-Circuit Tester TRI ICT TR518 SII

Built around the successful and reliable TR518 series platform, the TR518 SII MDA now provides its excellent performance combined with friendly Windows 10 user interface design and USB interface connection to test PC or notebook. With up to 2560 analog test points, TestJet technology and many other features, the TR518 SII delivers high speed, high accuracy and high reliability testing.

• Tested, proven and reliable TR518 platform with USB interface
• TestJet technology for vectorless open circuit detection
• Friendly Windows 10 user interface software

Tester Specifications

Analog Test Points

2560 analog test points

Operating System

Microsoft® Windows compatible PC with USB, Windows 10

Fixture Type

Offline press

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

Component R/L/C measurement

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Programmable High Voltage DC Source up to 100V / 100 mA

Yield Management System

YMS 4.0



1000 x 900 x 1770 mm


220 kg
