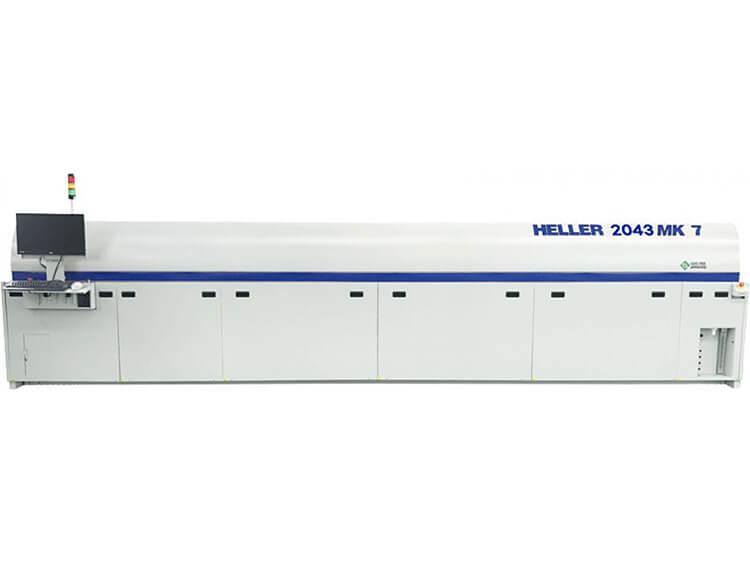

  • Heller 2043 MK7 SMT Reflow Oven
Heller 2043 MK7 SMT Reflow Oven

Heller 2043 MK7 SMT Reflow Oven

  • Heating Zones: Top 13 / Bottom 13
  • PCB Width: 50 - 560 mm
  • Weight: 3400 kg
  • Dimension: W7224 x D1520 x H1440 mm
  • Product description: Heller 2043 MK7 SMT Reflow Oven, Heating Zones: Top 13 / Bottom 13, PCB Width: 50 - 560 mm, Weight: 3400 kg, Dimension: W7224 x D1520 x H1440 mm
  • INQUIRY

Heller 2043 MK7 SMT Reflow Oven

Products description



Heller 2043 MK7 SMT Reflow Oven

This new reflow oven platform revolutionizes the industry with several new ground breaking designs and incorporates all of the customer requests for lower Delta T, reduced nitrogen consumption and extended PM into a new low height package that makes it easy to see across the production floor.
Highest Yield!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free – with Vacuum option
Industry 4.0 Compatibility Reflow Oven
Integrated Cpk software at No Charge!
Reflow Oven w/New Low Height Top Shell
The new low height top shell provides much easier access for reflow oven operators. All skins have double insulation to save up to 10-15% in reflow soldering energy loss.
INDUSTRY 4.0 Compatible Reflow Oven
Internet of Manufacturing (IoM) — Smart factories, intelligent machines and networked processes through the use of cyber-physical systems.
Enhanced low height heater module provides the lowest Delta Ts with better air flow and uniformity! The Uniform Gas Management system eliminates “net flow” which results in nitrogen consumption reductions of up to 40%! New semi-circular heater is more robust and efficient with much longer lifetime.
Revolutionary Flux Management System
reflow oven module photo
Our reflow oven has a revolutionary flux collection system that traps the flux in collection jars which can be easily removed and replaced while the reflow soldering oven is running – saving time consuming P.M. The new flux filtration box also has no risk of flux clogging for a longer-term P.M. interval.
Additionally, our proprietary Flux-Free Grill system limits the flux residue on the cooling grills giving the Heller reflow oven system the highest production yields of any oven!
New Green Flux Management Solution – Low Temperature Catalyst
The new low temperature catalyst system uses an integrated catalyst inside the heater modules to decomposes into harmless CO2 and H2O, while producing no harmful exhaust or waste byproducts. Unlike other flux removal technologies, the catalyst does not require any additional power or cooling, saving in operating costs. The catalyst has the added benefit of reducing Oxygen in the oven as well, reducing Nitrogen usage to achieve target PPM levels. The catalyst keeps the oven clean of flux residue, extending PM intervals and increasing productivity. Learn more about reflow oven flux removal.
Reflow Oven CPK
We provide a dynamic 3 tiered system (Tier 1: Reflow Oven CPK, Tier 2 Process CPK, Tier 3 Product Traceability) enabling customers to quickly improve product quality and yield while reducing costs. And the additional benefits of automatic record keeping and recall provide customers with the peace of mind that all reflow soldering process parameters are under control and within spec.

Machine Model

Heller 2043MK7

Heating Zones

Top 13 / Bottom 13

Cooling Zones

Top 4

PCB Width

50 - 560 mm

Max Conveyor Speed

188 cm/min

Cross-Belt Temperature Tolerance

± 2 ℃

Accuracy of Temperature Controller

± 0.1 ℃

Conveyor Width Adjustment

Manual Motor Control

Operating System

Windows 10

Overall Dimensions

W7224 x D1520 x H1440 mm

Typical Net Weight

Approx. 3400 kg

Keywords:

SMT Reflow Oven, Nitrogen Reflow Oven, Dual Lane Reflow Oven, Vertical Reflow Oven, Vacuum SMT Reflow Oven, Lead free SMT Reflow Oven, Reflow Oven Manufacturer, LED Reflow Oven, China Reflow Oven.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
