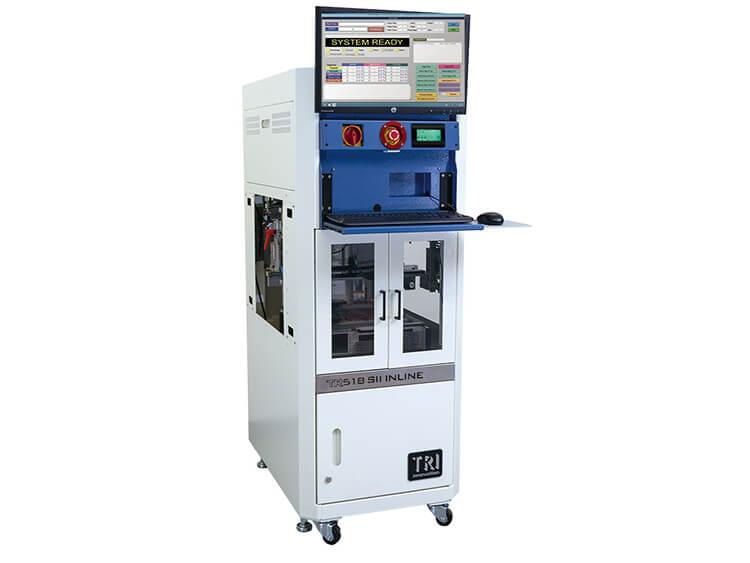

In-Circuit Tester TRI ICT TR518 SII INLINE

In-Circuit Tester TRI ICT TR518 SII INLINE

  • max PCB: 330x250mm
  • Weight: 340KG
  • Dimension: 600 x 900 x 1595 mm
  • Product description: In-Circuit Tester TRI ICT TR518 SII INLINE, max PCB: 330x250mm, Weight: 340KG, Dimension: 600 x 900 x 1595 mm

In-Circuit Tester TRI ICT TR518 SII INLINE

Product Specification

In-Circuit Tester TRI ICT TR518 SII INLINE

TR518 SII INLINE is a cost effective, flexible automated testing platform designed for MDA testing on medium-sized boards with up to 1024 testing points. The fully electrical SMEMA-compatible platform features a minimal footprint and full TR518 SII MDA capability.

• Full featured inline testing platform
• Designed for TRI MDA testers
• Minimal footprint with SMEMA integration
• Fully electrical design without compressed air
• Up to 1024 MDA analog testing points

Tester Specifications

Analog Test Points

1024 analog test points

Operating System

Microsoft® Windows compatible PC with USB, Windows 10

Fixture Type

Inline/Manual Insertion

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

Component R/L/C measurement

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Programmable High Voltage DC Source up to 100V / 100 mA

Yield Management System

YMS 4.0

Board Handling

Min. PCB Size

70 x 70 mm

Max. PCB Size

330 x 250 mm

PCB Thickness

0.6 ~ 5 mm



600 x 900 x 1595 mm

Note: not including signal tower, height: 515 mm


340 kg
