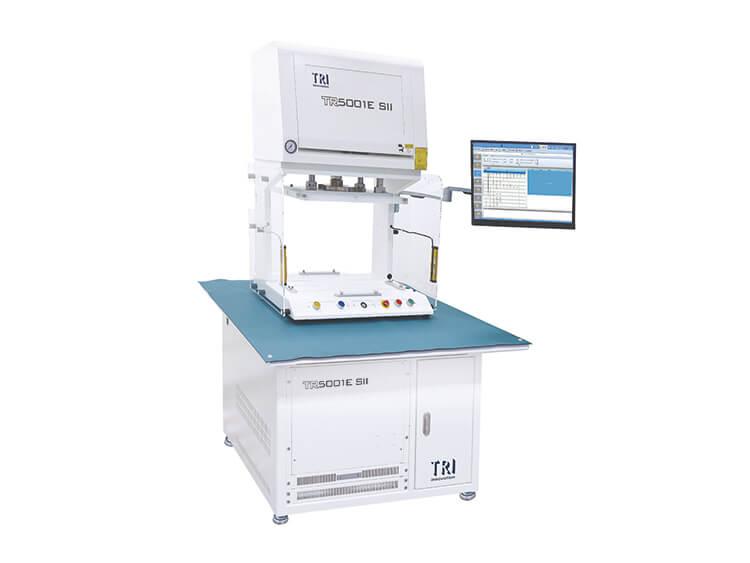

In-Circuit Tester TRI ICT TR5001E SII

In-Circuit Tester TRI ICT TR5001E SII

  • max PCB: 420 x 300 mm
  • Weight: 670 kg
  • Dimension: 1000 x 900 x 1680 mm
  • Product description: In-Circuit Tester TRI ICT TR5001E SII, max PCB: 420 x 300 mm, Weight: 670 kg, Dimension: 1000 x 900 x 1680 mm

In-Circuit Tester TRI ICT TR5001E SII

Product Specification

In-Circuit Tester TRI ICT TR5001E SII

The TR5001E SII provides an economical, customizable solution that can fully meet the testing requirements of most customers. The TR5001E SII incorporates MDA with selectable ICT and Functional test capabilities that cut production line staff. The ICT platform has built-in auto-calibration and self-diagnostics to ensure long-term testing reliability.

• Modular upgrade options from MDA to ICT and functional test
• Built-in Self Diagnostics and Auto-Calibration function
• High Speed and Accuracy Measurement and Testing
• Friendly UI with fast and easy program development

Tester Specifications

Analog/hybrid test points

TR5001E SII: 3456

TR5001E SII INLINE: 2496

Operating System

Microsoft® Windows 10

Fixture Type

Inline or Offline Press Type. Inline with Long Lifespan Quick Disconnection Interface

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement

Component R/L/C measurement

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Arbitrary Waveform Generator

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

DUT power supplies:

(1) 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A

(2) Programable Power (2 CH): 0.2 – 3 V@2 A max. or 3 – 24 V@3 A max.

DPS Programmable DUT Power supply :

(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS

(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS

(3) APPS7508: 75 V max. / 8 A max. / 200 W max.

Boundary Scan: Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

On-board Flash, EEPROM, MAC programming

ToggleScan Test: Advanced Test Technology that Combines with BScan and Vectorless Test Functions to Detect Pin Open or Short Issues

Yield Management System

YMS 4.0

Industry 4.0 Standards

IPC-Hermes-9852, IPC-CFX

Board Handling

Max. PCB Size

TR5001E SII: Standard- 420 x 300 mm, Optional- 600 x 350 mm

TR5001E SII INLINE: Standard- 450 x 300 mm, Optional- 500 x 360 mm

PCB Thickness

0.6 - 5 mm



TR5001E SII: 1000 x 900 x 1680-1700 mm

TR5001E SII INLINE: 900 x 900 x 1640 mm

Note: not including signal tower,signal tower height: 392 mm


TR5001(D/Q) SII INLINE: 670 kg

TR5001(D/Q)L SII INLINE: 720 kg
