  • In-Circuit Tester TRI ICT TR8100H SII
In-Circuit Tester TRI ICT TR8100H SII

In-Circuit Tester TRI ICT TR8100H SII

  • Weight: 390 kg
  • Dimension: 1150 x 850 x 800 mm
  • Product description: In-Circuit Tester TRI ICT TR8100H SII, Weight: 390 kg, Dimension: 1150 x 850 x 800 mm

In-Circuit Tester TRI ICT TR8100H SII

Product Specification

In-Circuit Tester TRI ICT TR8100H SII

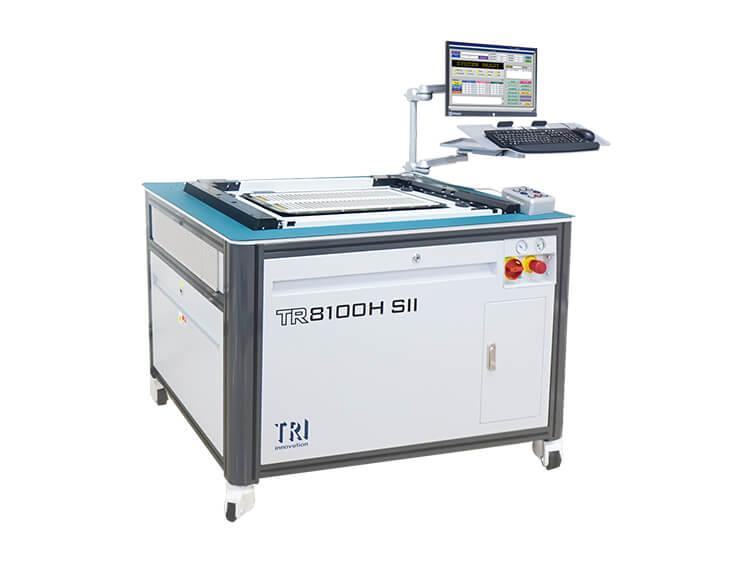

The TR8100H SII is the latest ICT with High Throughput and High Accuracy for large and complex PCBAs. The TR8100H SII is the top-of-the-line board test system targeting the low-voltage testing market. TR8100H SII's vacuum fixture system ensures full pin contact, and with up to 11,088 pins digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development. The ICT has built-in self-diagnostics to ensure long-term testing reliability.

• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Built-in Self Diagnostics function
• High-Accuracy Measurement and Testing
• Friendly UI, easy program development

Tester Specifications

Analog test points

TR8100H SII: 7056

TR8100HL SII: 11088

Operating System

Microsoft® Windows compatible PC, Windows 10

Fixture Type

Vacuum type

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement, frequency

Component R/L/C measurement

Synthesized Arbitrary Waveform Generator

TestJet vectorless open circuit detection

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A

On-board Flash, EEPROM, MAC programming

Optional Components

Analog Hardware

Fixture Conversion Kits for Teradyne, GenRad

Digital Testing

APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

Serial Test Controller (STC) Programming

DPS Programmable DUT Power supply:

(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS

(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS

ToggleScan Test

Yield Management System

YMS 4.0



TR8100H SII: 1150 x 850 x 800 mm

TR8100HL SII: 1400 x 850 x 800 mm


TR8100H SII: 390 kg

TR8100HL SII: 450 kg
