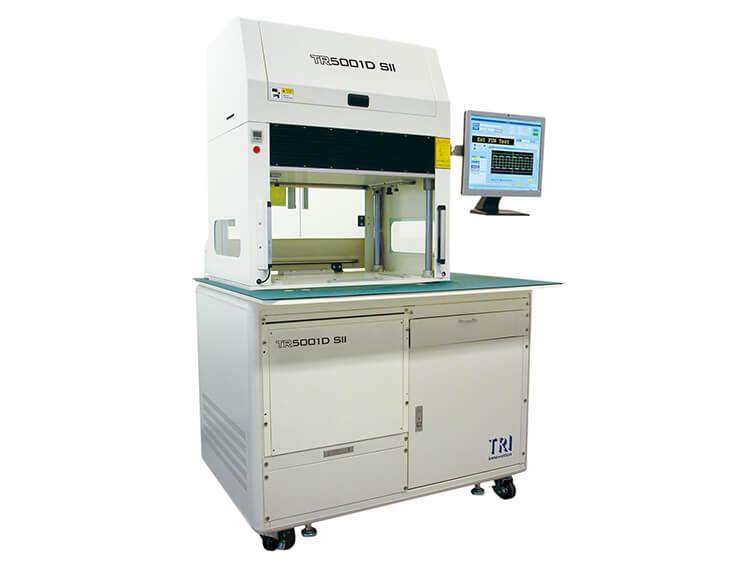

  • In-Circuit Tester TRI ICT TR5001 SII SERIES
In-Circuit Tester TRI ICT TR5001 SII SERIES

In-Circuit Tester TRI ICT TR5001 SII SERIES

  • Weight: 300 kg
  • Dimension: 1050 x 850 x 1735 mm
  • Product description: In-Circuit Tester TRI ICT TR5001 SII SERIES, Weight: 300 kg, Dimension: 1050 x 850 x 1735 mm

In-Circuit Tester TRI ICT TR5001 SII SERIES

Product Specification

In-Circuit Tester TRI ICT TR5001 SII SERIES

Next generation ICT+FCT solution offers breakthrough performance Multi-Core Parallel testing with up to 4 independent cores for high-throughput testing. Offering improved measurement accuracy, the TR5001Q/D SII's new built-in auto-calibration and self diagnostics ensure long-term testing reliability.

• New Generation Flexible Multi-Core Parallel Tester
• State-of-the-Art Serial Test Controller with up to 8 ports on any pin
• Limited access solution and functional test expansion using PXI modules
• Built-in Self Diagnostics and Auto-Calibration function
• High-Accuracy Measurement and Testing
• Intuitive UI with flow-based easy program development

Tester Specifications

Analog/hybrid test points

TR5001Q SII: 4096

TR5001D SII: 3328

TR5001 SII: 3456

Operating System

Microsoft® Windows compatible PC with USB, Windows 10

Fixture Type

Offline press type fixture

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement

Component R/L/C measurement

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Arbitrary Waveform Generator

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

Serial Test Controller (STC) Programming

DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A

DPS Programmable DUT Power supply :

(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS

(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS

Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming

Yield Management System

YMS 4.0



1050 x 850 x 1735 mm


300 kg
