Home > SMT Inspection machine

  • In-Circuit Tester TRI ICT TR5001 SII LED SERIES

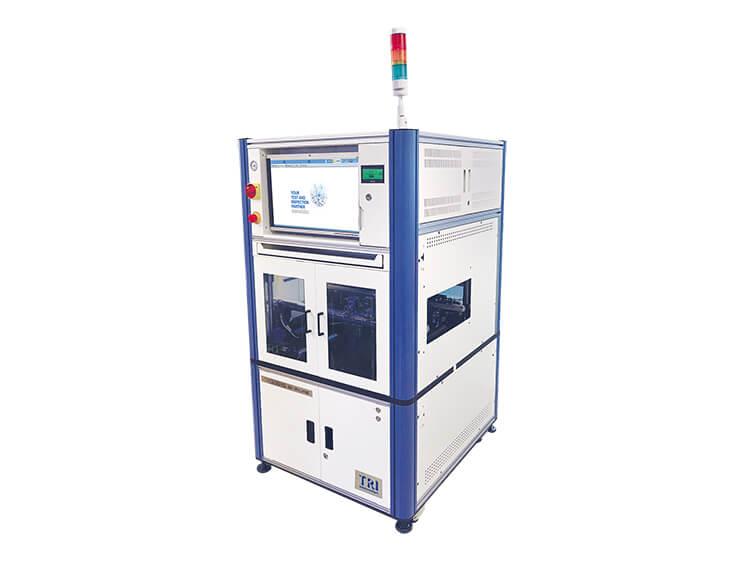

In-Circuit Tester TRI ICT TR5001 SII LED SERIES

In-Circuit Tester TRI ICT TR5001 SII LED SERIES

  • Max PCB Size: 500 x 460 mm
  • Weight: 670 kg
  • Dimension: 900 x 1180 x 1887 mm
  • Product description: In-Circuit Tester TRI ICT TR5001 SII LED SERIES, Max PCB Size: 500 x 460 mm, Weight: 670 kg, Dimension: 900 x 1180 x 1887 mm

In-Circuit Tester TRI ICT TR5001 SII LED SERIES

Product Specification

In-Circuit Tester TRI ICT TR5001 SII LED SERIES

he TR5001 SII LED Series is TRI's latest ICT+FCT innovation dedicated for LED lighting Test, equipped with up to 1080 LED Test Channels. The ICT+FCT solution offers advanced performance Multi-Core Parallel testing with up to 4 independent cores, and durable Quick Disconnection Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability. The TR5001 SII LED Series is suitable for the Automotive Industry LED Lighting Testing.

• Multi-Core Parallel Test
• In-System LED Analyzer
• Non-Multiplexing 1:1 per Pin Architecture
• Scalable MDA to ICT and Functional Test
• High Accuracy and High Throughput
• Test up to 1080 LED Channels
• Durable Quick Disconnection Interface
• Automatic Conveyor Width Positioning
• Board Warp and Misalignment Notification

Tester Specifications

Analog/hybrid test points


Operating System

Microsoft® Windows compatible PC with USB, Windows 10

Fixture Type

Inline or Offline with Long Lifespan Quick Disconnection Interface

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement

Component R/L/C measurement

In-Tester LED Analyzer



LED Channels

Up to 1080 LED Test channels. (Top: up to 540 / Bottom: up to 540.)

Fixture Connection

Quick Disconnection Interface (QDI)

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Arbitrary Waveform Generator

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

Serial Test Controller (STC) Programming

DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A

DPS Programmable DUT Power supply :

(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS

(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS

Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming

Yield Management System

YMS 4.0

Board Handling

Min. PCB Size

70 x 70 mm

Max. PCB Size

500 x 460 mm

PCB Thickness

0.6 - 5 mm



TR5001(D/Q) SII INLINE: 900 x 1180 x 1887 mm*

TR5001(D/Q) SII QDI: 1200 x 950 x1850 mm

Note: not including signal tower,signal tower height: 392 mm


TR5001(D/Q) SII INLINE: 670 kg

TR5001(D/Q) SII QDI: 510 kg
