  • In-Circuit Tester TRI ICT TR5001V SII SERIES
In-Circuit Tester TRI ICT TR5001V SII SERIES

In-Circuit Tester TRI ICT TR5001V SII SERIES

  • Weight: 350 kg
  • Dimension: 900 x 1080 x 1270 mm
  • Product description: In-Circuit Tester TRI ICT TR5001V SII SERIES, Weight: 350 kg, Dimension: 900 x 1080 x 1270 mm

In-Circuit Tester TRI ICT TR5001V SII SERIES

Product Specification

In-Circuit Tester TRI ICT TR5001V SII SERIES

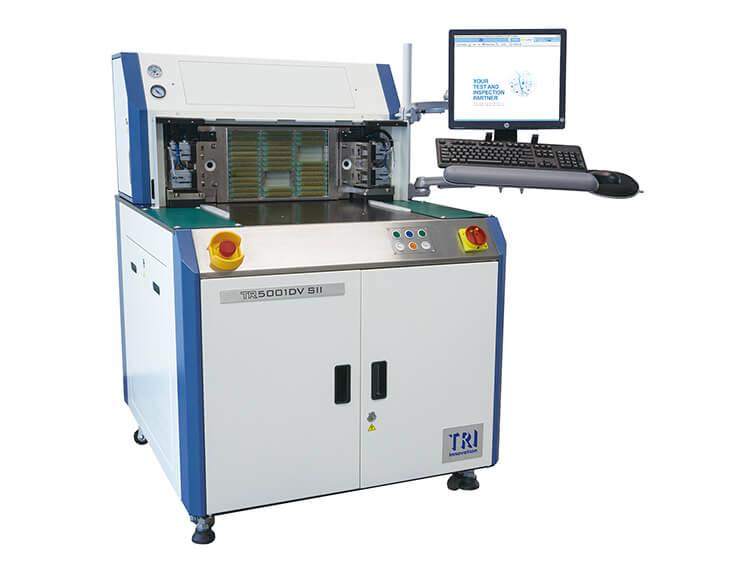

Top-of-the-line multi-core parallel vacuum ICT+FCT solution. TR5001V SII Series offers breakthrough performance with up to 4 independent cores for high throughput. Includes durable Quick Disconnect Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability. TR5001V SII Series is powered by TRI's flow-based Smart Programming Software for ease of use.

• Multi-Core Parallel Test
• Reliable Vacuum Fixture Testing
• Non-Multiplexing 1:1 per Pin Architecture
• Scalable MDA to ICT and Functional Test
• High Accuracy and High Throughput
• Durable Quick Disconnection Interface

Tester Specifications

Analog/hybrid test points

TR5001QV SII: 4096

TR5001DV SII: 3328

TR5001V SII: 3456

Operating System

Microsoft® Windows compatible PC with USB, Windows 10

Fixture Type

Vacuum fixture with Quick Disconnection InterfaceStandard Testing Components

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement

Component R/L/C measurement

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Arbitrary Waveform Generator

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

Serial Test Controller (STC) Programming

DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A

DPS Programmable DUT Power supply :

(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS

(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS

Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming

Yield Management System

YMS 4.0



900 x 1080 x 1270 mm


TR5001QV SII: 370 kg

TR5001DV SII: 350 kg

TR5001V SII: 350 kg
