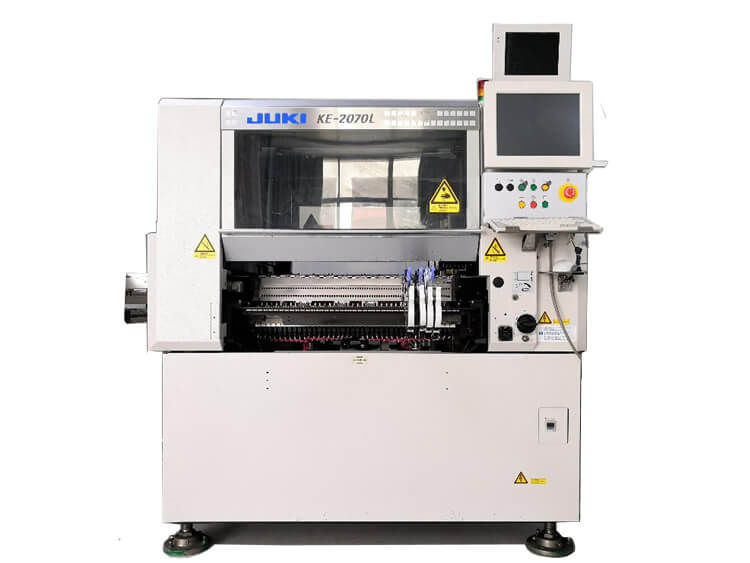

  • JUKI KE-2070 high speed Pick and Place Machine
  • JUKI KE-2070 high speed Pick and Place Machine
JUKI KE-2070 high speed Pick and Place Machine JUKI KE-2070 high speed Pick and Place Machine

JUKI KE-2070 high speed Pick and Place Machine

  • Applicable Components: 0402 (01005) ?33.5mm
  • Board size:330×250mm
  • Feeder inputs:80
  • placement capacity:23,300CPH
  • Product description: JUKI KE-2070 high speed Pick and Place Machine -Good Price! Good Quality! Good Service!
  • INQUIRY

juki KE-2070 high speed pick and place machine

Introduce of SMT pick and place machine:



With the addition of the optional MNVC, the component range can be increased even more for greater flexibility.

chip mounter Speed:23,300CPH

laser centering/Optimum 0.155Sec./chip

18,300CPH laser centering/IPC 9850
IC
4,600CPH (vision centering with optional MNVC)
One multi-nozzle laser head (6 nozzles)
From 0402 (01005) to 33.5mm square components
Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)
1 Actual throughput may vary.

2 Please download brochure for details.


Main Features of SMT Pick and Place Machine?

Board size

M size (330×250mm)


L size (410×360mm)


L-Wide size(510×360mm) (option)

E size (510×460mm)*1


Component size

Laser recognition

0402 (01005) 33.5mm

Vision recognition

Standard camera

3mm*2 33.5mm

High-resolution camera (option)

1.0×0.5mm*3 20mm

Placement speed

Chip

Optimum

0.155Sec./chip(23,300CPH)

IPC9850

18,300CPH

IC*4

4,600CPH*5

Placement accuracy

Laser recognition

±0.05mm Cpk 1

Vision recognition

±0.04mm

Feeder inputs

Max. 80 on 8mm T/F*6

*1   Please ask for details on E size board.

*2   When using MNVC. (option)

*3   When using both high-resolution camera and MNVC. (option)

*4   Effective tact: The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.(CPH=number of components placed for one hour)

*5   Estimated value when using MNVC (option) and picking up components simultaneous with all nozzles.

*6   Including matrix tray changer, max 110.

Keywords:

Modular surface mounter,cheap price pick and place machine, IC placer, modular surface mounter second hand price, chip mounter

Flason Electronic Co.,ltd provide a full smt assembly line solutions, includingSMT reflow oven, THT wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
