  • JUKI FX-3RA Pick and Place Machine

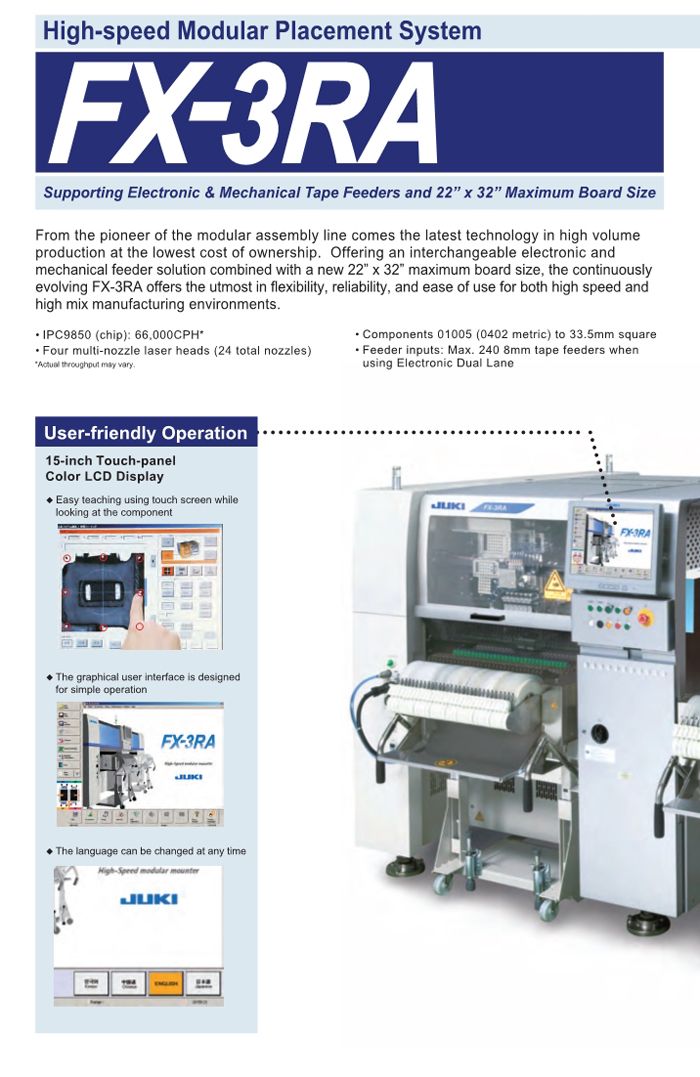

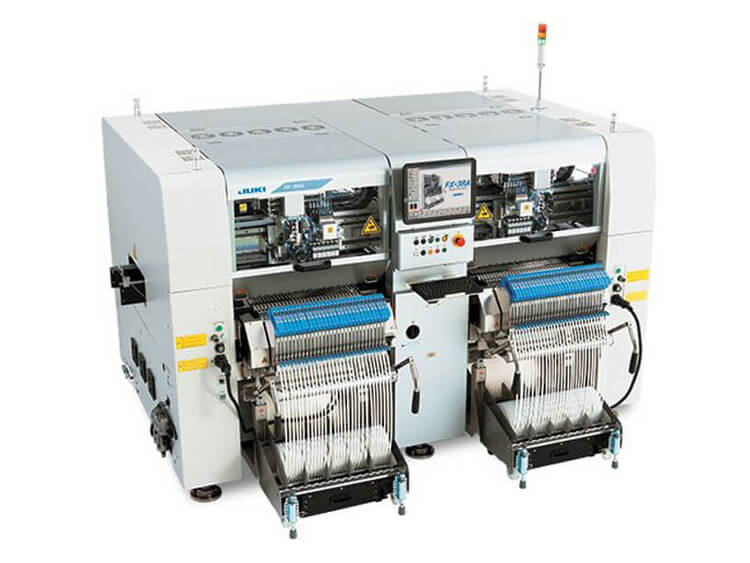

JUKI FX-3RA Pick and Place Machine

JUKI FX-3RA Pick and Place Machine

  • Applicable Components: 0402mm(01005 inch) 33.5mm
  • Board size:330 x 310mm
  • Feeder inputs:max.120
  • placement capacity:66,000CPH
  • Product description: JUKI FX-3RA Pick and Place Machine, Applicable Components: 0402mm(01005 inch) 33.5mm, Board size:330 x 310mm, Feeder inputs:max.120, placement capacity:66,000CPH
  • INQUIRY

JUKI FX-3RA Pick and Place Machine

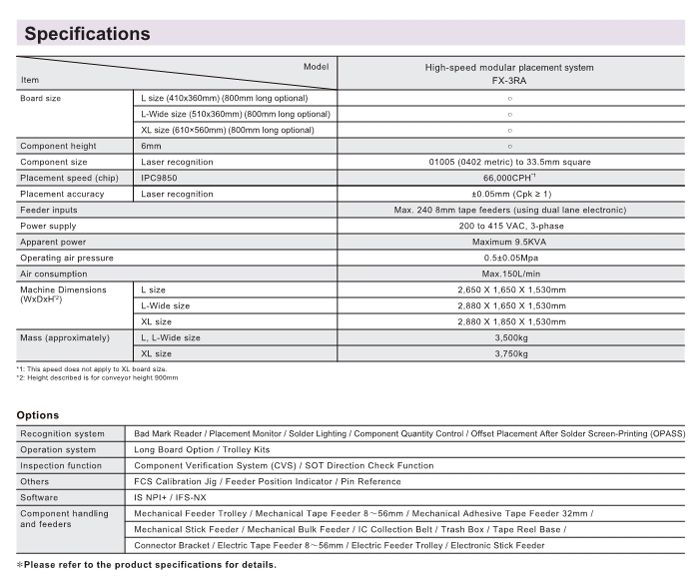

Specifications:

JUKI FX-3RA Pick and Place Machine

A high speed modular mounter using a high speed rotary head equipped with 16 nozzles.  EXCEN has the world’s highest speed in the world among mounters of the same class as well as the world’s highest area productivity. In addition, it secures the reliability of fine chip placement by using the function to monitor pre- and post-part placement, SVS (Side-view Vision System), and maximizes work convenience and actual productivity by applying various operation modes including non-stop device type change,mixed production of different boards as well as the SMART Feeder that realizes the world’s first Auto Splicing and Auto Loading functions.

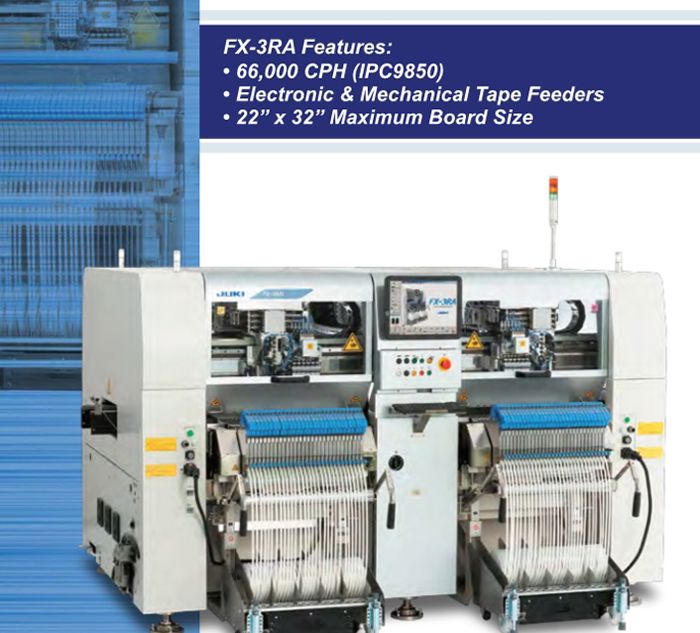

Features:

· 120,000 CPH(Optimum)

· Ultra Slim Design with a Total Length of 1.25m

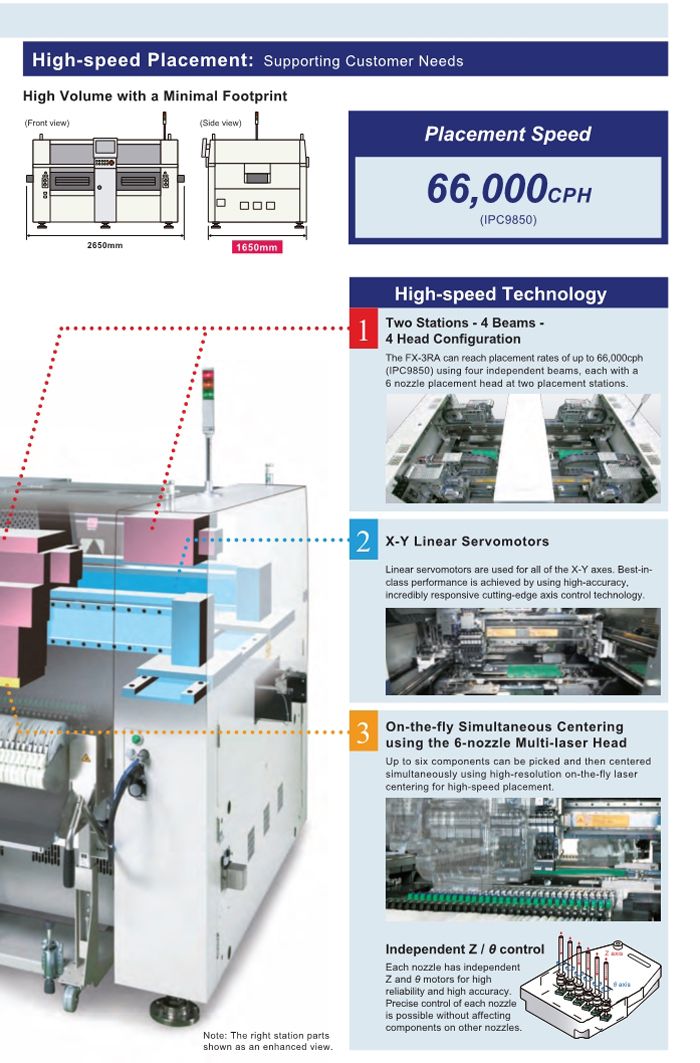

· High Speed Rotary Modular Head

· Side-view Vision System(SVS) - Monitoring of pre- and post-part placement

· Mixed Production of Different Boards

· Independent Production at the Front and Rear/

· Non-stop Change-over of Device Types

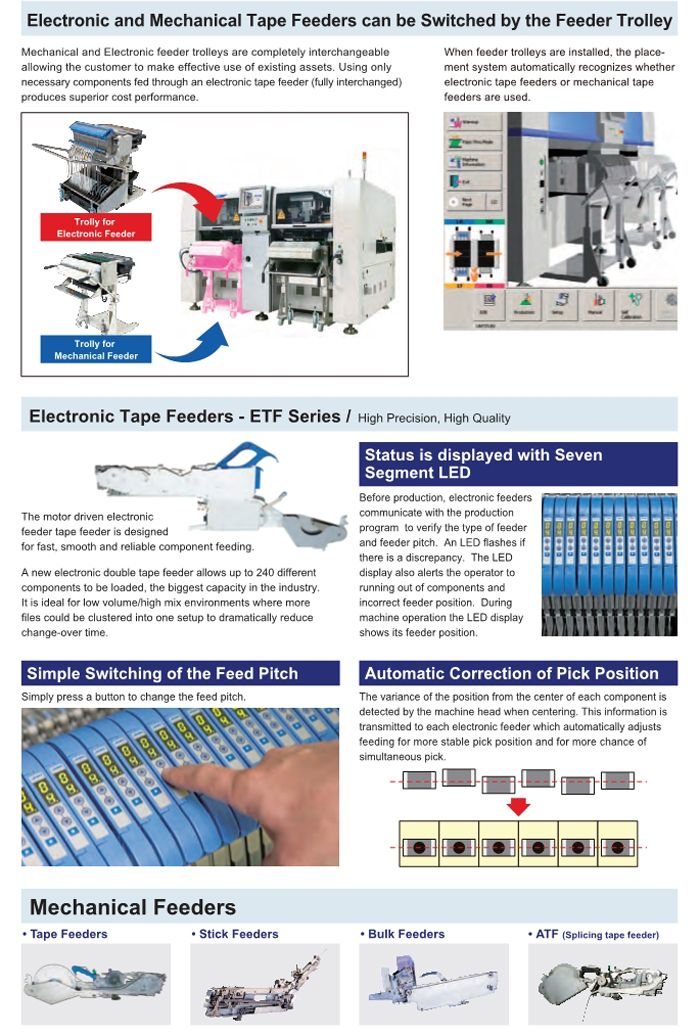

· High Speed and High Precision Feeder

· SMART Feeder - The world’s first Auto Splicing and Auto Loading function

BOARD SIZE

L Size: 410x360mm

L-Wide Size: 510x360mm

XL Size: 610×560mm

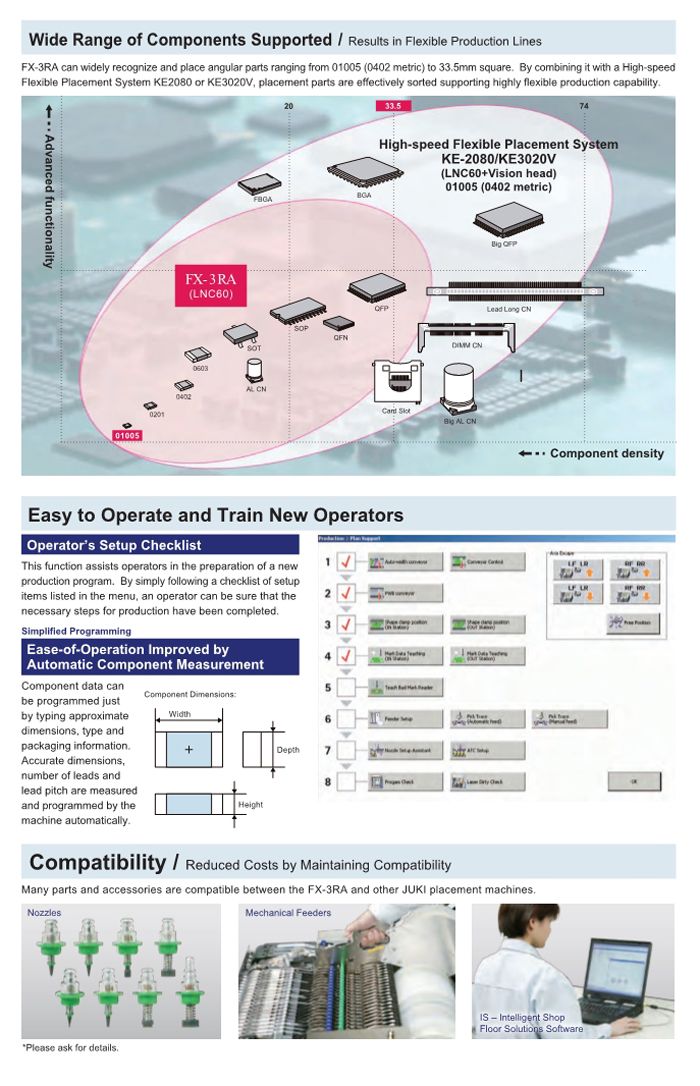

COMPONENT SPECS

Component Height: 6mm

Component Size:
Laser Recognition:
0402mm(01005 inch) 33.5mm

FEEDER INPUTS

Max.240 in case of 8mm tape (on a Electric double tape feeder)

PLACEMENT SPECS

Placement Speed (chip):
• 0.040Sec./chip(90,000CPH)
• IPC9850: 66,000CPH

Placement Accuracy:
Laser Recognition: ±0.05mm(±3)


CPH (Optimum)

120000 (4x 16 spindles)

Max. PCB Size (Standard) (mm)

330 x 310

Optional PCB Sizes (mm)

N/A

Feeder Capacity (8mm)

120

Min. Component Size (imperial)

01005

Max. Component Size (mm)

8 x 8 (54 x 54 by optional head and camera

Max. Component Height (mm)

3 (28mm by optional head)

Keywords:
