China SMT Assembly line machine PCB Reflow oven Manfuacturer directly priceChina SMT Assembly line machine PCB Reflow oven Manfuacturer directly price

China SMT Assembly line machine PCB Reflow oven Manfuacturer directly price

  • Name: SMT Reflow Oven
  • Heating zones: 6
  • Heating method: Hot Air
  • Usage: SMT Assembly line
  • Product description: China SMT Assembly line machine PCB Reflow oven Manfuacturer directly price
  • INQUIRY

China SMT Assembly line machine PCB reflow oven Manfuacturer directly price

Introduction:



No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The

peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.

2. Using special high temperature barrier structure for heat preservation and special iron in

Heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.

4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.

No.2 Smooth and reliable transmission system

1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.

2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.

3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.

2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.

3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .

4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.

5. Failure diagnosis, visual & audio alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.



Specification:

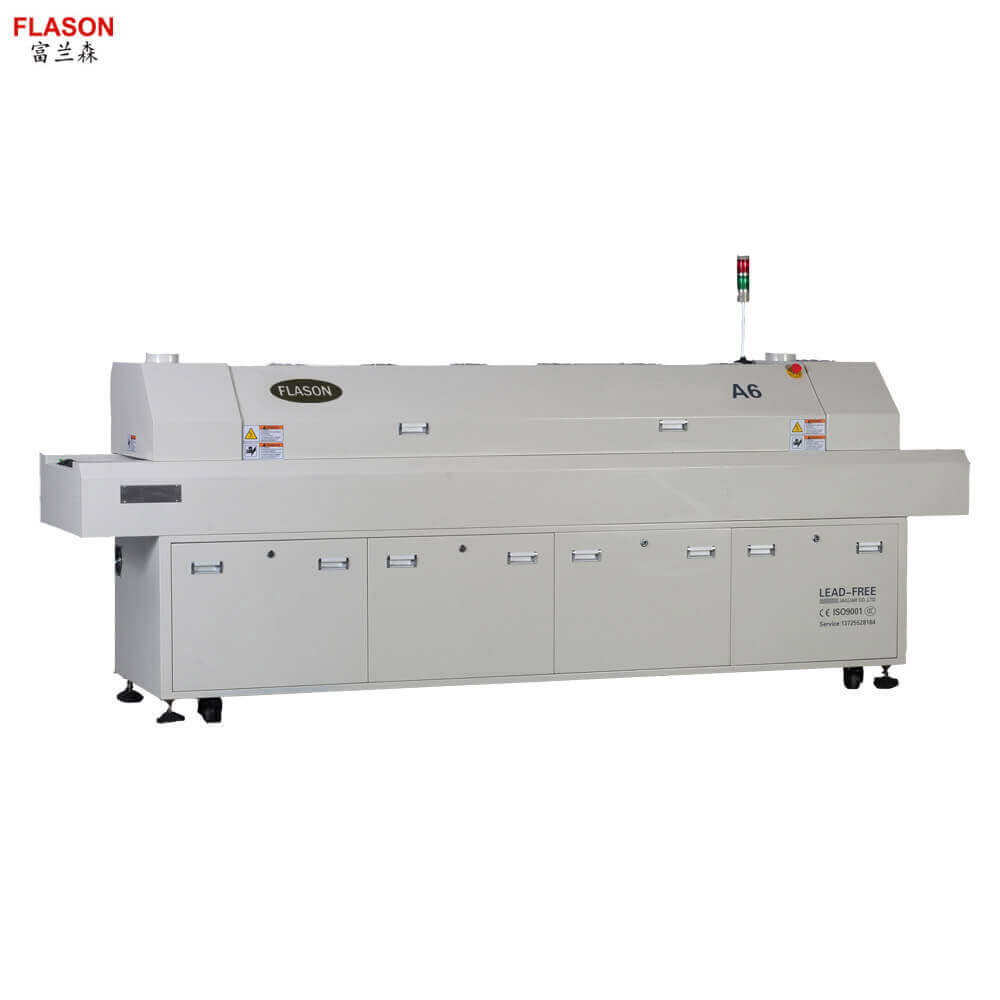

Model

Flason A6

Heating System

Number of heating zones

Top 6/Bottom6

Heating passage

2400MM

Heating style

Top: hot air; bottom: IR

Cooling style

Force air

Conveyor System

Max. Width of PCB

350mm

Mesh belt width

400mm

Conveyor Direction

L?R(or R?L)

Process Height

880±20mm

Conveyor type

Mesh

Conveyor speed

0-1000mm/min

Fixed track

Front track fixed(option: rear track fixed)

Control system

Power supply

5 line 3 phase 380V 50/60Hz

Total power consumption

28kw

Startup power consumption

24kw

Steady consumption

4KW

Ramp Up time

About 20 mins

Temp. setpoint

Room temperature-300?

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1?

Temp. deviation on PCB

±2?

Data storage

Process Data and status storage

(80 GB)(machine with PC)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temp. (overtemp/low temp.)

Board dropped alarm

Tower light: Amber-warning, Green-normal, Red-abnormal

General

Dimension(L*W*H)

3500×700×1320mm

Weight

600KG

Color

Computer grey
