  • SMT Reflow Oven for SMD Soldering R12
  • SMT Reflow Oven for SMD Soldering R12

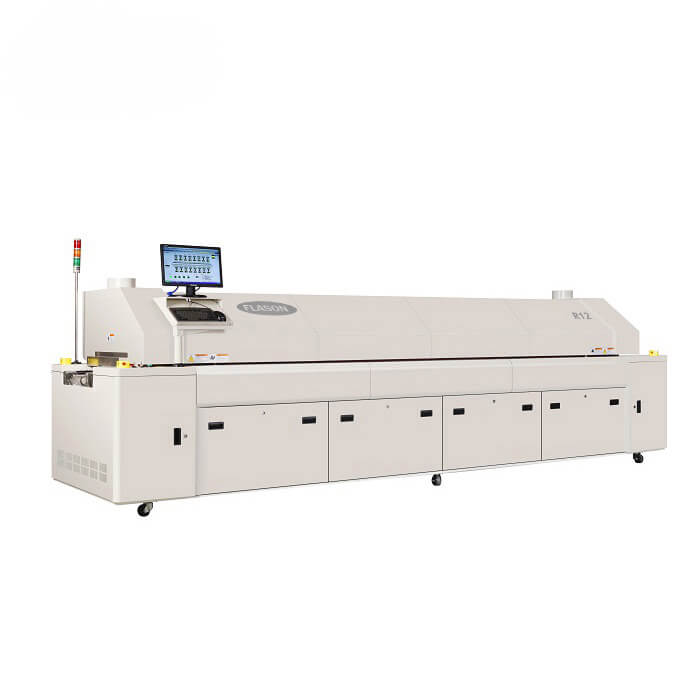

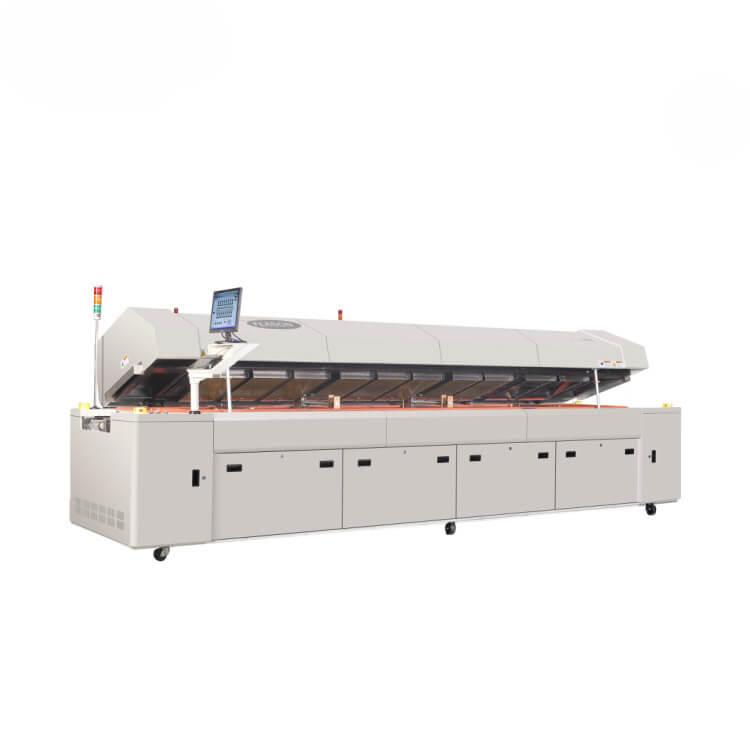

SMT Reflow Oven for SMD Soldering R12SMT Reflow Oven for SMD Soldering R12

SMT Reflow Oven for SMD Soldering R12

  • Max. Width of PCB 450mm
  • Heating zones: 12
  • Heating method: Hot Air
  • Usage: SMT Assembly line
  • Product description: SMT reflow oven for SMD Soldering, Name: SMD Soldering, Heating zones: 12, Heating method: Hot Air, Max. Width of PCB 450mm Dimension(L*W*H) 6000×1400×1550mm Weight 2800KG
  • INQUIRY

SMT Reflow Oven for SMD Soldering R12

Introduction of SMD Soldering:



SMT Reflow Oven for SMD Soldering R12

SMD soldering need to used the Reflow oven, As nowadays PCB and SMD are become more and more small, and SMD polulation on PCB is very high, so need long heating zones to do this process.

Characters:

1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.

5. Effective heating zone length with uniform heat distribution.

6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.

7. PLC and PID closed loop control to achieve high precision temperature control.

8. Standard 12 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.

9. The rail track is dealt with hardening process to make it more reliable.

10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.

11. Computerized controlled rail chain lubrication structure.

12. Powerful software system can save all settings and data printout capability.

13. Flux removal unit meet with environmental protection requirement.

14. Nitrogen structure is an option.


Specification:

Model

Flason R12

Heating System

Number of heating zones

Top 12/Bottom 12

Number of cooling zones

2

Heating passage

4600mm

Heating style

Hot air

Cooling Style

Air Oven: Forced air; Nitrogen Oven: Water Chiller

Exhaust Volume

10m³/min * 2 vanes

Conveyor System

Max. Width of PCB

450mm

Mesh belt width

500mm

Conveyor Direction

L-R(or R-L)

Process Height

900±20mm

Conveyor Style

Mesh and chain

Range of rail width

0-450mm

Conveyor speed

0-2000mm/min

Auto/manual Lubrication

Standard

Fixed track

Front track fixed(option: rear track fixed)

Product clearance

Top and bottom 25mm

Control system

Power supply

5 line 3 phase 380V 50/60Hz

Total consumption

60kw

Startup consumption

58kw

Steady consumption

12KW

Ramp up time

About 20 mins

Temp. set point range

Room temperature-300°C

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1°C

Temp. deviation on PCB

±2°C

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temp. (overtemp/low temp.)

Board dropped alarm

Light tower: Amber-warming, Green-normal, Red-abnormal

General

Dimension(L*W*H)

6000×1400×1550mm

Weight

2800KG

Color

Computer grey
