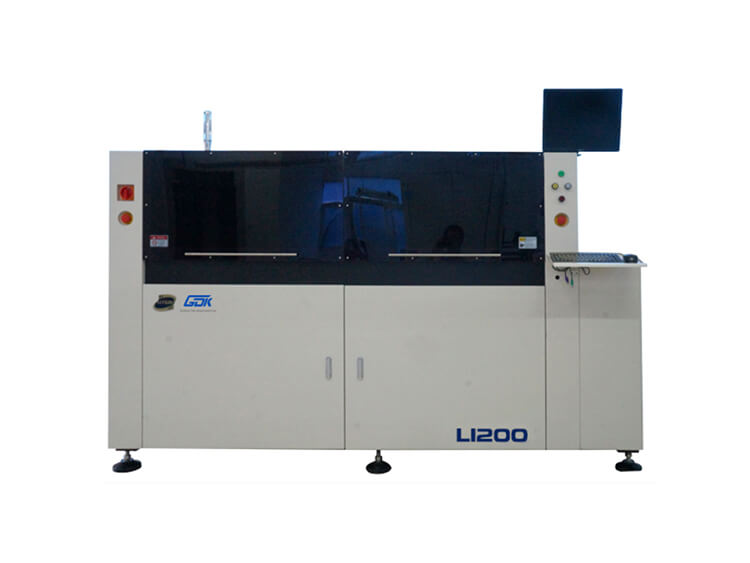

1.2M Automatic Solder Paste Printer L1200

1.2M Automatic Solder Paste Printer L1200

  • Max PCB: 1200mm x 340mm
  • Printing speed:0 ~ 200 mm/s
  • weight: 1800kg
  • dimension: 2455*1400*1520mm
  • Product description: 1.2M Automatic Solder Paste Printer L1200, Max PCB: 1200mm x 340mm, Printing speed:0 ~ 200 mm/s, weight: 1800kg, dimension: 2455*1400*1520mm
  • INQUIRY

1.2M Automatic Solder Paste Printer L1200

Specifications:

1.2M Automatic Solder Paste Printer L1200

1. Accuracy L1200 dedicated mathematical operation model, repeatability ±15 microns (±0.0005") @6 σ, Cp ≥ 2.0.
2. HTGD special screen frame correction system L1200 special high-rigidity UVW module drive mechanism can effectively improve the screen frame adjustment stability, realize ultra-fine transmission under micro-adjustment, and make the machine meet the printing requirements of high precision. The structure is simple and reliable, and the adjustment is convenient, and it can quickly realize the automatic adjustment of the height of the PIN pin of the PCB board with different thicknesses.
3. The programmable suspension self-adjusting stepper motor drives the print head with independent direct-connected stepper motor control, and the built-in precise pressure control system can accurately measure the original pressure value of the squeegee, regardless of the type, length, weight or thickness of the squeegee blade. Programmable to achieve flexible and changeable printing process; designed for the different pressure requirements of the front and rear squeegees and the stability of the lifting, preventing the leakage of solder paste and the blade has a certain elasticity of the clamping design, the pressure of the squeegee, the lifting speed, the printing speed, The printing range is adjustable by software, and a variety of demolding methods are provided for customers to adapt to PCB boards with different tin requirements, providing customers with a good printing control platform.
4. PCB positioning system widened synchronous belt drive, large transmission capacity and controllable speed; stepper motor drive, programmable to achieve different transportation speeds and movements; new concept guide rail, seamless transmission to ensure the reliability of PCB transportation; adaptive PCB board thickness, the process is easier; software adjustable pressure elastic side pressure;
5. The integrated cleaning structure of the cleaning system is simple and reliable; the high-power fan and the Venturi vacuum generating device are used for vacuuming; the three cleaning methods of dry, wet and vacuum can be freely selected and combined, and the user can set the cleaning cycle according to actual needs. parameters such as time and speed; soft and wear-resistant rubber wiping plate, clean thoroughly and easy to disassemble.
6. The highly adaptable steel screen frame clamping system realizes the printing of screen frames of various sizes, and can realize the rapid replacement of models in the production process.
7. The electronic control system adopts the self-developed modular integrated circuit, which is safe and easy to maintain; the most advanced industrial control system in the industry can be used to modify the parameters of the machine during the movement process.
8. Image and light path system Brand new light path system--uniform ring light and high-brightness coaxial light, together with the function of stepless adjustment of brightness, makes all types of Mark points can be well identified (including uneven Mark points) , suitable for tin-plated, copper-plated, gold-plated, tin-sprayed, FPC and other types of PCBs with different colors. Adjustable four-way light source, telecentric lens, up and down the same stencil and PCB board.
9. Simple and easy-to-use graphical Chinese/English operation interface adopts windows XP operating system, and independently developed graphical human-machine interface: especially for the navigation effect of program files, it is convenient for all operators to quickly familiarize with the operation; menu-type Chinese/English switching, Operation log, fault record/fault self-diagnosis/fault analysis prompt/light alarm and other functions make the operation simple and convenient.
10. 2D solder paste printing quality inspection and SPC analysis 2D function can quickly detect printing problems such as offset, less tin, missing printing, continuous tin and other printing problems, and the detection points can be increased arbitrarily; SPC software can analyze the machine CPK through the samples collected by the machine

PCB parameters

Maximum board size(X x Y)

1200mm x 340mm

Minimum board size(X x Y)

80mm x 50mm

PCB thickness

0.8mm~6mm (below 0.8mm need with Stowage)

Warpage

Max. PCB Diagonal line 1%

Maximum board weight

12Kg

Board margin gap

Configuration to 3.5mm

Maximum bottom gap

20mm

Transfer speed

1200mm/s(Max)

Transfer height from the ground

900±40mm

Transfer orbit direction

Left-Right,Right-Left,Left-Left,Right-Right

Transfer mode

One stage orbit

PCB damping method

Programmable flexible side pressure, Bottom integral suctionn cavity vacuum
(Optional: Multipoint partial vacuum of the bottom)

Support method

Magnetic thimble,  Equal high block,Special workpiece fixture , Grid-Lok(Optional)

Printing parameters

Printing head

Suspended intelligent closed loop printing head(Linear motor)

Template frame size

737mm x 370mm~1800 mm x 737 mm

Maximum printing area(X x Y)

1200mm x 340mm

Squeegee type

Steel scraper/Glue scraper(Angel   45°/50°/60° matching the printing process)

Squeegee length

220mm~520mm

Squeegee height

65±1mm

Squeegee thickness

0.25mm Diamond-like carbon coating

Printing mode

Single or double scraper printing

Demoulding length

0.02 mm - 12 mm

Printing speed

0 ~ 200 mm/s

Printing pressure

0.5kg - 10Kg

Printing stroke

±615 mm(From the center)

Image   parameters

Field of view

10.24mm x 6.4mm

Platform adjustment range

X:±20.0mm,Y:±15.0mm,θ:±2.0°

Benchmark point type

Standard shape benchmark   point (SMEMA standard), solder pad/openings

Camera system

Independent   camera,upwards/downwards imaging vision system, geometric matching location

Performance parameters

Repetition precision of image calibration

±15.0 micron @6 σ,Cp ≥ 2.0

Repetition precision of printing

±30.0 micron @6 σ,Cp ≥ 2.0

Cycle time

<15s , exclude printing and cleaning

Product changeover

<10mins

Equipment

Power requirements

AC220V±10%,50/60HZ,15A

Compressed air requirements

4~6Kg/square centimetre. 10.0  Diameter of the tube

Operating system

Windows XP

External dimension

2455mm(L) x 1400mm(W) x 1520mm(H)(Without light,monitor and keyboard)

Machine weight

Around 1800Kg

Temperature and humidity control module(Optional)

Environment temperat

23±3°C

Relative humidity

45~70%RH4
