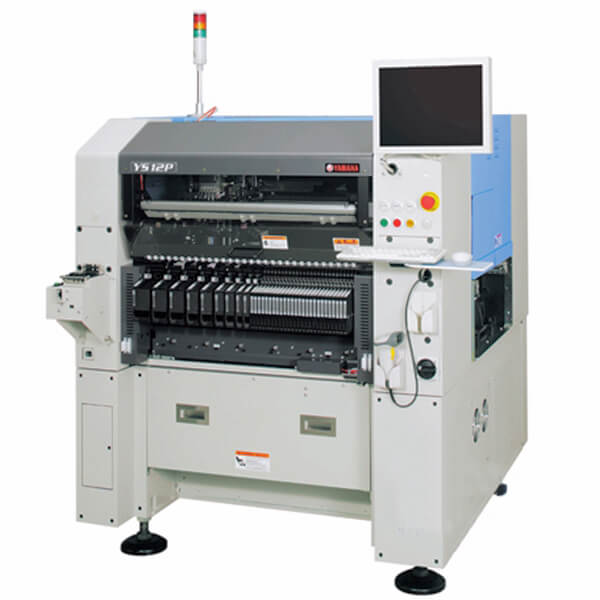

Yamaha YS12P Pick and Place Machine
Compact Economy Modular Yamaha YS12P SMT machine
High speed mounting capacity handling 24,000CPH (0.15sec/CHIP equivalent) High flexibility for components:
Mounting accuracy: Absolute accuracy（μ＋3σ） +/-0.05mm/CHIP
Applicable PCB: L510 x W460mm to L50mm x W50mm
Mounting accuracy: Absolute accuracy(μ+3σ) +/-0.05mm/CHIP
Mounting tact: 24,000CPH(under our optimum condition)
Component supply: Tape reel, tray
Number of component types: Tape package components: 59 types(Max/8mm tape reel conversion) Tray
package conversion: 2 types(Max/JEDEC tray conversion)
Applicable components: 0402 to 32 x 32mm MAX, including ball type electrode components
Applicable height: 6.5mm
Power supply: 3-Phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source: 0.45MPa
External dimension: L1,254xW1,440xH1,445mm (not include the projection)
Weight Approx:. 1,250kg
0402 to 32 x 32mm components, the height up to 6.5mm. Applicable to large size PCB, L510mm x W460mm.
Handles tray package components by Manual Tray(MT) Built-in Tape cutter.
