  • Yamaha YS24 Pick and Place Machine

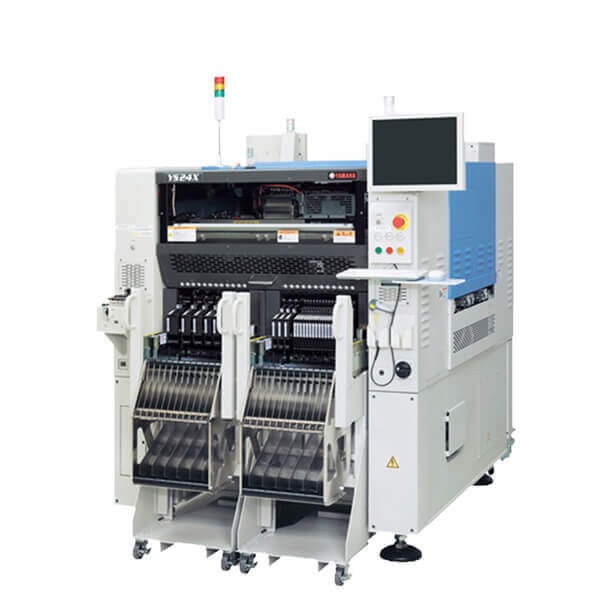

Yamaha YS24 Pick and Place Machine

Yamaha YS24 Pick and Place Machine

  • Speed: 72,000 CPH
  • Board size: L50xW50mm to L700xW460mm
  • Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
  • Weight: Approx. 1,700KG
  • Product description: Yamaha YS24 Pick and Place Machine, Speed: 72,000 CPH, Board size: L50xW50mm to L700xW460mm, Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less), Weight: Approx. 1,700KG
  • INQUIRY

Yamaha YS24 Pick and Place Machine

Introduction




YAMAHA YS24 Compact -Super-High -Speed Modular

Features:

72,000CPH (0.05sec/CHIP)The "YS24" has been developed as the flagship model of the "YS Series" that has been acclaimed for its superior area productivity, component applicability and ease of performing setup work. Two sets of 10 in-line multi heads are located on two beams within a compact platform that has a horizontal width of 1.25 meters. In addition, the adoption of a newly developed "Dual Stage Conveyor" has achieved the highest area productivity in the world *1 (34,000 CPH per square meter) with a superior mounting capability of 72,000 CPH *2 (0.05 sec./chip: Under optimum conditions as established by Yamaha Motor). The unit is also capable of handling super large printed circuit boards (PCBs) (L700×W460mm). Furthermore, the "SS Feeder" microcomputer controlled electric powered tape feeder *3 and a compact and lightweight feeder carriage have been adopted for the part changing unit, creating a mounting line configuration that boasts superior setup productivity in addition to very high production efficiency.

Product Features
(1)Superior Mounting Capability of 72,000 CPH (0.05 sec./chip: Under ideal conditions as established by Yamaha Motor)
Incorporates two sets of narrow pitch 10 in-line multi heads
Equipped with component recognition system adopted with YS12
Fully rigid dual drive two-beam configuration
Newly developed "Dual Stage Conveyor" adopted
(2)World's Highest Area Productivity
Compact external dimensions of 1,254mm width and 1,687mm depth achieved. This has resulted in outstanding area productivity of 34,000 CPH per square meter, approximately double that of the "YS12".
(3)Compatible with Super Large Printed Circuit Boards (PCBs)
In addition to being compatible with PCBs for large flat panel screens and LED lighting devices, large industrial PCBs and other types of PCBs, it is also compatible with super large PCBs (L700 x W460mm).
(4)Component Supply Device with Superior Ease of Operation and Work Efficiency
The supply device adopts the single lane type "SS Feeder". Thin, lightweight and compact, this tape feeder is electric powered and controlled by a micro-computer to achieve superior working ease. A maximum of 120 units can be installed.
The compact and lightweight feeder carriage system achieves high setup efficiency.
A built-in tape cutter facilitates easy disposal of empty waste tapes.
(5)High Mounting Quality Guaranteed
The "MACS", or Multiple Accuracy Compensation System, has been adopted. It compensates for various factors that change accuracy in a complex and multi-faceted manner, guaranteeing a constant mounting accuracy of ±0.05mm.
Standard provision of a side view function, a component mounting orientation detection function and a self nozzle diagnosis function ensures very high mounting quality and reliability.
(6)Actual Operating Ratio increased by Ease of Maintenance
Nozzles common with the "YS12" and "YS100" have been adopted to ensure superior ease of maintenance.
Standard provision of a "Blow Station" enables self cleaning of the nozzle shaft, reducing the amount of maintenance work.
(7)Achieves Superior Ease of Operation
Graphic display design with superior ease of operation has been adopted. An easy to view and easy to understand man-machine interface achieves very easy operation.
Higher operating ratio and superior quality control are supported by softwares like "Y.FacT" and "IT Option".
One of four display languages (Japanese, English, Chinese or Korean) can be selected according to the location where the unit is installed.
(8)Safety and Environmental Considerations
Device is compatible with CE marking *4 to ensure safe device design, enabling it to be marked around the world.
Compatible with air supply source of 0.45MPa.
*4CE Marking: Name of mark indicating device conforms with safety requirements for devices installed and used in European region.
Specifications:

Model

YAMAHA YS24

Applicable PCB

L50xW50mm –to L700xW460mm

Mounting accuracy

+/-0.05mm ( + 3), +/-0.03mm (3)

Speed

72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

Applicable components

0402 to 32x32mm MAX (Height 6.5mm or less)

Component Types

120 types (Max./8mm wide tape reel conversion)

Power supply

Three phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source

0.45MPa

External dimension

L1,254x W1,687x H1,445mm (Excluding protrusions)

Weight

Approx. 1,700kg
