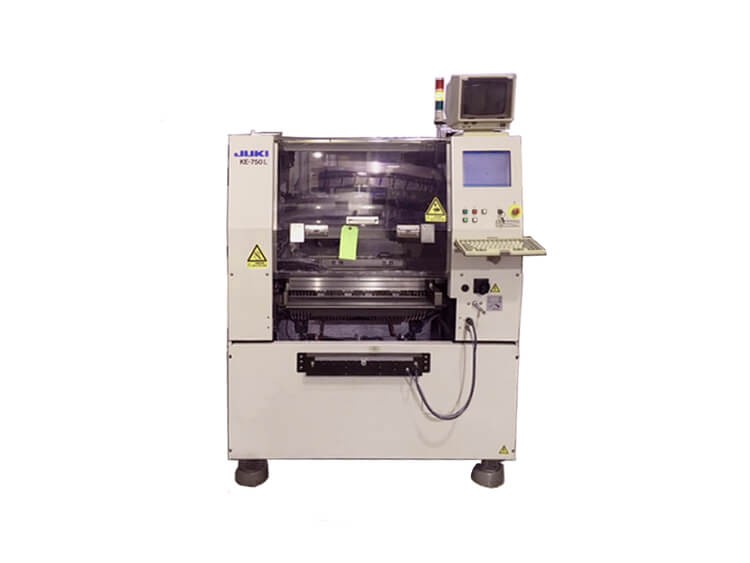

JUKI KE750 Pick and Place Machine

JUKI KE750 Pick and Place Machine

  • JUKI KE750 Pick and Place Machine
  • PCB size: 330 * 250mm
  • size: 1400 * 1440 * 1460mm
  • Weight: 1100 ㎏
  • Product description: JUKI KE750 Pick and Place Machine -Good Price! Good Quality! Good Service!

JUKI KE750 Pick and Place Machine

Products Description:

JUKI750 Placement machine is a medium-sized multi-function placement machine,
generally 1998-2000 equipment. Three heads, laser alignment, accuracy 0.08MM.

As an economical device, 750 Mounter low risk, medium speed, and more Function, low cost.

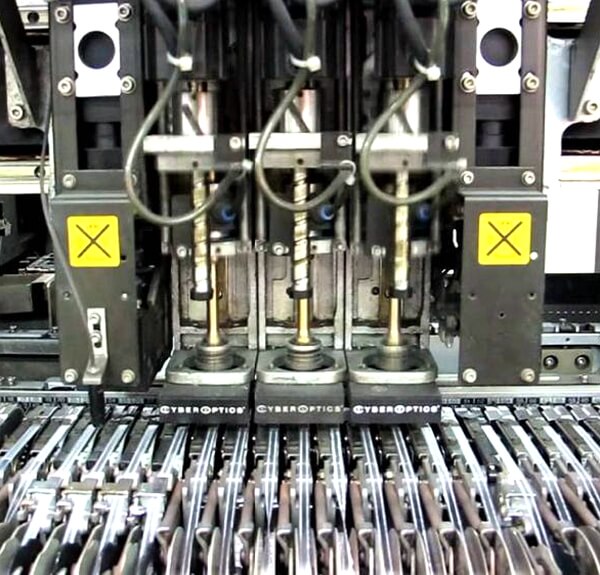

JUKI 750 placement head: 3
JUKI750 expected station: 80
Placement speed: 0.25sec / chip (3 at the same time attached to the attached)
JUKI750 placement accuracy: ± 0.1mm chip ± 0.09mm QFP (Laser)
Placement range: 1005 ~ 23.5mm (By Laser)
JUKI750 PCB size:
Maximum: 330 * 250mm
Min: 50 * 30mm

PCB thickness: 0.4 ~ 4mm
JUKI750 appearance size: 1400 * 1440 * 1460 (including lights 2000mm)
Weight: 1100KG

JUKI mid-speed placement machine 750
automatic / manual: automatic
Patch speed: 8000 (grain / hour)
PCB Dimensions:
L: 50.0 mm (min) -330.0 mm (max), W: 30.0 mm (min) -250.0 mm (max).
PCB thickness:: 0.40mm (min) -4mm (max)
Technical Parameters:
Component placement range:
0402-48mm * 48mm (chip, sot, sop, melf, QFP, connector, sop, plcc)
Component height: 0.3mm-10.5mm.
Pin spacing (Min): 0.4mm.
Component Dimensions: 0.5mm * 1.0mm (Min), 23.5mm * 23.5mm (Max).
Nozzle Model: 10X, 20X.
Mounting accuracy: ± 0.1mm (LA), ± 0.04mm (LAIC)
Mounting Speed (Max): 11,250 components / hour

speed:0.25s 3 heads
laser collection accuracy:0.08mm
angle accuracy :0.001 degree.
thickness of PCB: 0.4mm~4mm
component size: 1.0*1.0*0.5MM~32MM*11MM.QFP 20MM*20MM. for bigger size optional
power supply: single phase
power: 2KW

Flason have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
