  • Tokyo Electron Tel Wave Test Equipment Precio octo
Tokyo Electron Tel Wave Test Equipment Precio octo

Tokyo Electron Tel Wave Test Equipment Precio octo

  • Probing force (kg): 60
  • Optical system: ASU/BCU-Ⅱ
  • Wafer Size (mm):150 200
  • Stage technology: Ball Screw
  • Product description: Tokyo Electron Tel Wave Test Equipment Precio octo, Probing force (kg): 60, Optical system: ASU/BCU-, Optical system: ASU/BCU-Ⅱ, Wafer Size (mm):150 200, Stage technology: Ball Screw
  • INQUIRY

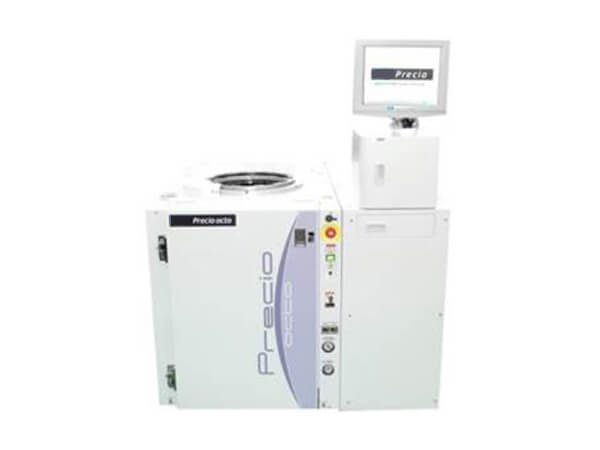

Tokyo Electron Tel Wave Test Equipment Precio octo

Specifications:

The evolving wafer prober in response to the various demands of wafer testing
Precio™ series is a fully automatic wafer-probing platform. Due to process miniaturization, higher device functionality, and package variety, demand for probing technology in the test process is becoming increasingly diversified. The Precio™ series not only has XY accuracy to realize more reliable contacts but also has greater Z-axis control, which is important for soft contact. Optimum temperature control during test, and increased of parallel die testing are achieved with the Precio™ prober series. TEL provides a series of reliable solutions to the increasing number of probing demands.
Precio octo™ is an 8 inch wafer prober that realizes dramatic productivity by adopting ultra-high speed indexing and high-speed wafer exchange function to reduce test cost and improve Cost of Ownership. Vibration reduction by strengthening the structure and improving the major components and optics made it possible to achieve superior operation. Furthermore, by installing TELPADS™-I automatic probe mark inspection, it is possible to judge probe card quality and guarantee the quality of probe marks.

Product Comparison


Precio™ XL

Precio nano™

Precio octo™

Precio™

P-12XLn/n+/m

P-12XL

P-8XLm

P-8XL

P-8

Wafer size (mm)

200,300

200,300

150,200

200,300

200,300

200,300

100,125,150,200

100,125,150,200

100,125,150,200

Availability

New, Certified used

New, Certified used

New, Certified used

New, Certified used

Certified used

Certified used

Certified used

Certified used

Certified used

Stage technology

Linear motor

Linear motor

Ball screw

Ball screw

Ball screw

Ball screw

Ball screw

Ball screw

Ball screw

XY probing accuracy (μm)

±1.8

±0.8

±2.0

±1.8

Xn/Ln+:±1.8
XLm+:±2.5

±4.0

±2.0

±4.0

±6.0

Z probing accuracy (μm)

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

Probing force (kg)

200/300*

300/400*

60

200/300*

100/200*

100

60

60

40

Optical system

ASU/BCU-Ⅱ

ASU/BCU-Ⅱ

ASU/BCU-Ⅱ

ASU/BCU-Ⅱ

XLn/n+:ASU/BCU-Ⅰ
XLm+:ASU/BCU-Ⅱ

ASU/BCU-Ⅰ

ASU/BCU-Ⅱ

ASU/BCU-Ⅰ

ASU/BCU-Ⅰ

Operation system

Windows+PLC

Windows+VME

Windows+VME

Windows+VME

VME

VME

VME

VME

VME
