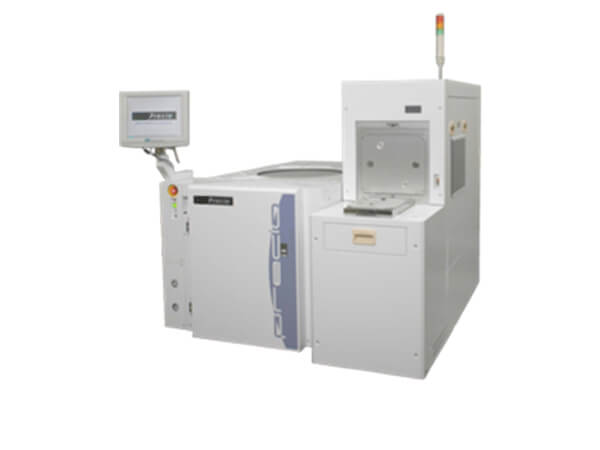

Tokyo Electron Tel Wafer Test Equipment Precio nano / Precio

Tokyo Electron Tel Wafer Test Equipment Precio nano / Precio

  • Optical system: ASU/BCU-Ⅱ
  • Probing force (kg): 300/400*
  • Wafer Size (mm):200 300
  • Stage technology:Linear motor
  • Product description: Tokyo Electron Tel Wafer Test Equipment Precio nano / Precio
  • INQUIRY

Tokyo Electron Tel Wafer Test Equipment Precio nano / Precio

Specifications:

The evolving wafer prober in response to the various demands of wafer testing
Precio series is a fully automatic wafer-probing platform. Due to process miniaturization, higher device functionality, and package variety, demand for probing technology in the test process is becoming increasingly diversified. The Precio series not only has XY accuracy to realize more reliable contacts but also has greater Z-axis control, which is important for soft contact. Optimum temperature control during test, and increased of parallel die testing are achieved with the Precio prober series. TEL provides a series of reliable solutions to the increasing number of probing demands.
Precio nano is a 300mm wafer prober that realizes high accuracy contact and cleanness under high load. In the probing process, demand for probing technology has diversified as process miniaturization, high function/high integration devices and packages are changing. The Precio nano and Precio not only has improved XY accuracy but also has greater Z precision/Z control methods for a more stable contact. Because of the increase in one-touch contact measurement of FLASH memory and increasing of simultaneous measurements of DRAM, there is a demand to improve the parallelism between the probe card and the chuck top. Precio nano/Precio inherits the P-12 XL functions of parallel probing to respond to various demands with the concept to further reducing test costs. In addition, by installing the probe mark inspection module TELPADS-I (Option), high-speed probe mark inspection is available.

Product Comparison


Precio™ XL

Precio nano™

Precio octo™

Precio™

P-12XLn/n+/m

P-12XL

P-8XLm

P-8XL

P-8

Wafer size (mm)

200,300

200,300

150,200

200,300

200,300

200,300

100,125,150,200

100,125,150,200

100,125,150,200

Availability

New, Certified used

New, Certified used

New, Certified used

New, Certified used

Certified used

Certified used

Certified used

Certified used

Certified used

Stage technology

Linear motor

Linear motor

Ball screw

Ball screw

Ball screw

Ball screw

Ball screw

Ball screw

Ball screw

XY probing accuracy (μm)

±1.8

±0.8

±2.0

±1.8

Xn/Ln+:±1.8
XLm+:±2.5

±4.0

±2.0

±4.0

±6.0

Z probing accuracy (μm)

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

±5.0

Probing force (kg)

200/300*

300/400*

60

200/300*

100/200*

100

60

60

40

Optical system

ASU/BCU-Ⅱ

ASU/BCU-Ⅱ

ASU/BCU-Ⅱ

ASU/BCU-Ⅱ

XLn/n+:ASU/BCU-Ⅰ
XLm+:ASU/BCU-Ⅱ

ASU/BCU-Ⅰ

ASU/BCU-Ⅱ

ASU/BCU-Ⅰ

ASU/BCU-Ⅰ

Operation system

Windows+PLC

Windows+VME

Windows+VME

Windows+VME

VME

VME

VME

VME

VME
