  • Tokyo Electron Tel batch furnace TELFORMULA

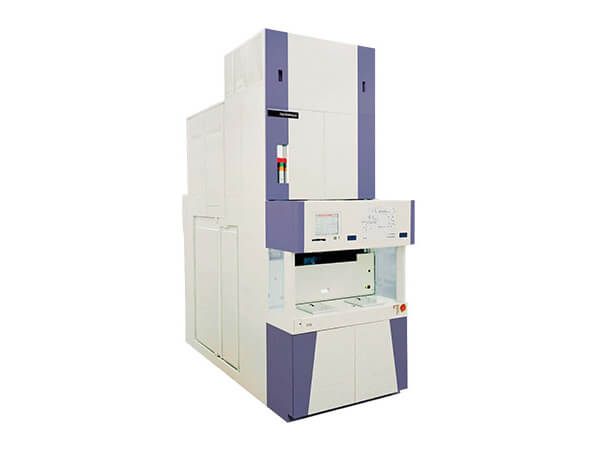

Tokyo Electron Tel batch furnace TELFORMULA

Tokyo Electron Tel batch furnace TELFORMULA

  • Process: Oxide, Anneal, Nitrade, Poly, TEOS, High-k
  • Process Temp: RT-1000C
  • Wafer Size (mm):300
  • Option: N2/LL Gas cleaning
  • Product description: Tokyo Electron Tel batch furnace TELFORMULA, Process: Oxide, Anneal, Nitrade, Poly, TEOS, High-k, Process Temp: RT-1000C, Wafer Size (mm):300, Option: N2/LL Gas cleaning
  • INQUIRY

Tokyo Electron Tel batch furnace TELFORMULA

Specifications:

TELFORMULA is the semiconductor industry’s most advanced iso-thermal minibatch platform. TELFORMULA incorporates a number of innovative technologies specifically developed to address the industry's need for a 300mm high speed batch platform capable of delivering short TAT (Turn Around Time) both suitable for product development and simultaneously capable of meeting demanding, high-volume production requirements. The short TAT is achieved by the convergence of multiple new core technologies, such as a metal-free fast ramping heater, low thermal mass chamber, rapid gas volume purge/displacement and a high speed wafer handling unit. The all quartz reactor concept provides the ideal processing environment for attaining the ultimate level of cleanness which is maintained by in-situ chamber dry gas cleaning reducing maintenance downtime and related costs. TELFORMULA™ is the ideal platform for a wide variety of semiconductor processes including LPCVD Si (Poly, a-Si), Si3N4, SiO2, ALD High-k, ATM/LP Oxidation, Oxynitridation, etc.

Product Comparison


TELINDY PLUS™

TELFORMULA™

TELINDY PLUS™ IRad™

TELINDY™

ALPHA(α)-303i

ALPHA-8SE

ALPHA-8S

Wafer size (mm)

300

300

300

300

300

100,150,200

150,200

Availability

New, Certified used

Certified used

New

Certified used

Certified used

Certified used

Certified used

Production load max

-125

-50

-125

-125

-100

-150

-150

Cassette stocker

-18

-10

-18

-16

-16

-21

-21

Process

Thermal ALD, LPCVD,
Oxididation/Anneal

Oxide, Anneal, Nitrade,
Poly, TEOS, High-k

Plasma Assisted ALD
SiN, SiO2*

Oxide, Anneal, Nitrade,
Poly, TEOS, HTO, High-k

Oxide, Anneal, Nitrade,
Poly, TEOS, HTO, High-k

Oxide, Anneal, Nitrade,
Poly, TEOS, HTO, High-k

Oxide, Anneal, Nitrade,
Poly, TEOS, HTO

Reactor

Thermal

Thermal

Plasma

Thermal/Plasma

Thermal

Thermal

Thermal

Process temp

RT-1100C

RT-1000C

RT-800C

RT-1100C

RT-1200C

RT-1250C

RT-1250C

Additional features, Option

N2/LL
Gas cleaning

N2/LL
Gas cleaning

N2/LL
Gas cleaning
*RT SiO2

N2/LL
Gas cleaning
Advance platform

N2,/LL, Gas cleaning:
CIF3 for poly

N2,/LL, Gas cleaning:
CIF3 for poly

N2/LL, Gas cleaning:
CIF3 for poly
