  • Surface Mount Machines CM202-DS

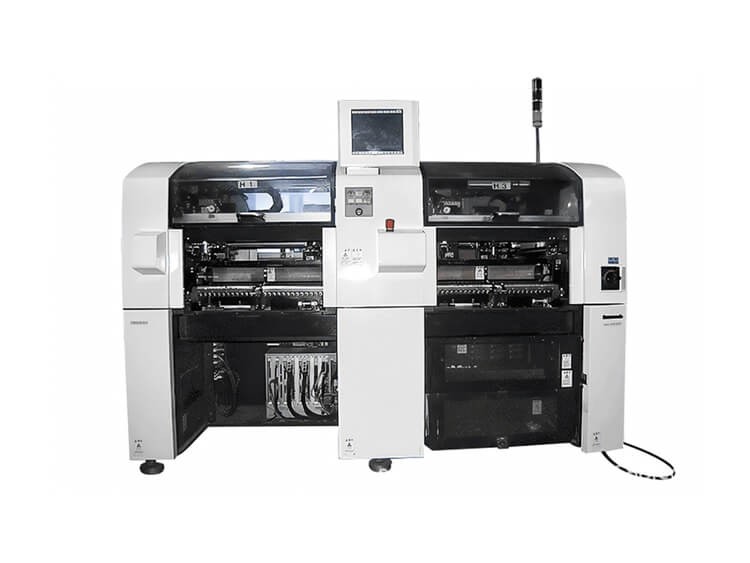

Surface Mount Machines CM202-DS

Surface Mount Machines CM202-DS

  • Surface Mount Machines
  • TactTime 0.088sec/chip
  • Size: 2350 x 1950 x 1430
  • Weight(kg) 2620
  • Product description: Surface Mount Machines Panasonic CM202-DS, TactTime 0.088sec/chip, Size: 2350 x 1950 x 1430, Weight: 2620KG

Surface Mount Machines CM202-DS


Sector      Specification(CM202-DS)      Specification(CM201-DS)
ModelNo.     KXF-E24C                              KXF-E14C
TactTime    0.088sec/chip                     0.176sec/chip
B'd change: 3.0 sec
Centering method: Upward Vision
PCB Size(L x W) MAX.460 x 360mm,MIN.50 x 50mm
Placement range: 0°~ 359° θ ±1°                Patch Accuracy: ±0.05mm/chip
FeederStation 104 stations(Double Feeder) 52 stations(Double Feeder)
Components range: 0603 ~ 24mm x 6t
Feeder: 8~72mm Tape Feeder/Bulk Feeder/Vibration feeder/
Tray Feeder
Conv.Transfer Right→Left(Left→Right:Op.) FrontFix (RearFix :Op.)
Power   AC200V 3PH,50/60Hz, 2.5kVA  AC200V 3PH,50/60Hz, 1.5kVA
Air 0.49MPa 400L/min 0.49MPa 200L/min


2350 x 1950 x 1430

1390 x 1950 x 1430

Weight(kg) 2620 1460


JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]


1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
