  • PCB Separator Depanelizer Machine HK360
PCB Separator Depanelizer Machine HK360

PCB Separator Depanelizer Machine HK360

  • Cutting range:330MM*360MM
  • Cutting method:straight line, arc, circle cutting
  • Size: 1220*1200*1850mm
  • Weight: 650KG
  • Product description: PCB Separator Depanelizer Machine HK360, Cutting range:330MM*360MM, Cutting method:straight line, arc, circle cutting, Size: 1220*1200*1850mm, Weight: 650KG
  • INQUIRY

PCB Separator Depanelizer Machine HK360

Product features:


PCB Separator Depanelizer Machine HK360

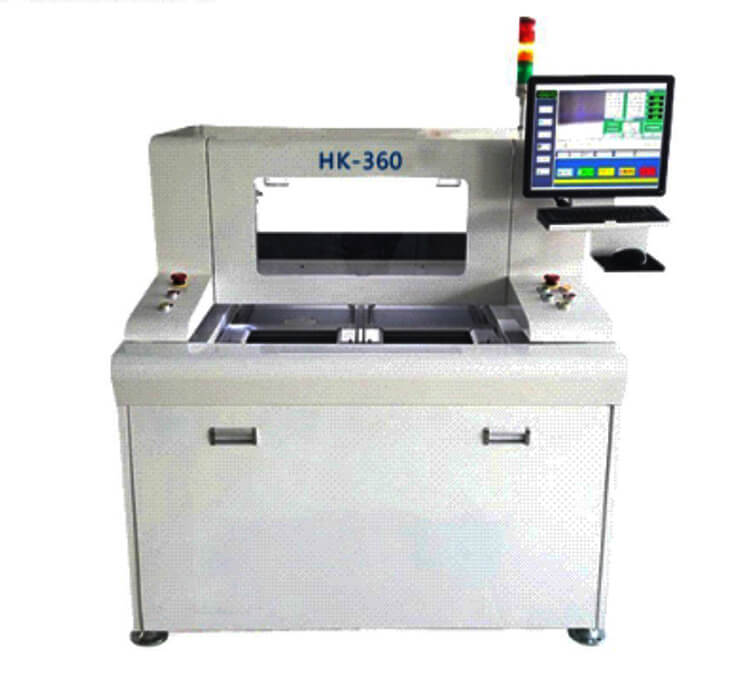

HK-360 Mainly use iron knife high-speed operation, dual-platform four-axis servo drive to split the multi-chip PCB according to the pre-programmed path, replacing manual breaking or V-CUT or PUSH cutting defects, stress damage, and improving product quality. Reduce the scrap rate, this machine adopts man-machine interface, AC servo motor, WIN7 system operation interface, through the high-pixel CCD production program to teach editing the cutting path, and can be modified and simulated in a single step, using two servo mobile platforms as the exchange of PCB The upper and lower substrate device can effectively reduce the idle time of the machine, thereby achieving higher production efficiency and quality. The software has MAKE compensation, same workbench duplication, double workbench duplication, equipped with large, medium and small three windows for more precise programming, adding a rectangular frame on the basis of the original target, programming is more intuitive and accurate programming, MAKE geometric alignment is automatically captured, The two tables are completely independent of parameters. Compared with the traditional three-axis machine, the response is faster, the parameters are more independent, the efficiency is higher, and the cutting accuracy is more guaranteed.
The high-speed spindle adopts the Japanese NSK spindle motor widely used in the industry's high-end splitters. The spindle has high speed, long service life, convenient installation and unloading, and the cutting surface is smooth, burr-free, and flawless. And equipped with the original Japanese NSK spindle inverter, so that the spindle motor has a longer service life, higher cutting force, and the lowest temperature rise effect.
Using servo-driven two working platforms to alternately process and place PCB substrates, reduce waiting time, increase production capacity, and solve the accuracy problem of the steam red drive platform.
High-pixel color CCD and large magnification lens can assist program teaching and editing simulation functions. from
Move the MARK incorrect positioning system to improve the cutting accuracy. The board is not placed in place and the substrate is cut by mistake. It is faster to copy the left and right programs and switch models. Optional barcode reading function to realize 1D/2D barcode reading and save or upload, which is convenient for traceability and digital management.

ITEM/Model

HK-360SZ

HK-360ZL

XYUZ Motion range

730MM*450MM*450MM*50MM

950MM*620MM*620MM*50MM

Single Table Cutting range

330MM*360MM*50MM

450M*500MM*50MM

Screw/Guide

HIWIN Screw Guide

HIWIN Screw Guide

Positioning Accuracy

±0.01 mm

±0.01 mm

Servo System

Four Axis AC Panasonic servo motor

Four Axis AC Panasonic servo motor

Spindle

Japan NSK/German SycoTec

Japan NSK/German SycoTec

Spindle frequency

High Speed Frequency converter

High Speed Frequency converter

Spindle speed

2000rpm/min~60000rpm/min

2000rpm/min~60000rpm/min

Spinkdle tool

0.8mm~3mm

0.8mm~3mm

Control computer

Adlink industrial computer

Adlink industrial computer

Cutting Speed

1 mmsec~100mm/sec

1 mmsec~100mm/sec

Cutting function

straight line, arc, circle cutting

straight line, arc, circle cutting

Static Electricity Treatment

Static Eliminator

Static Eliminator

Dust collection

lower dust collection or upper dust collection

lower dust collection or upper dust collection

Dust collector size

1050m m*800mm*5 50mm

1050mm*800mm*550mm

Power

3 phase 5 wire 380V 3kw

3 phase 5 wire 380V 3kw

Air Pressure

5kg/cm2

5kg/cm2

Machine size

1220mm*1200mm*1850mm

1 550mm*1400m m*1850mm

Machine weight

650kg

800kg
