PCB V Cutting Machine HK360

Product features:

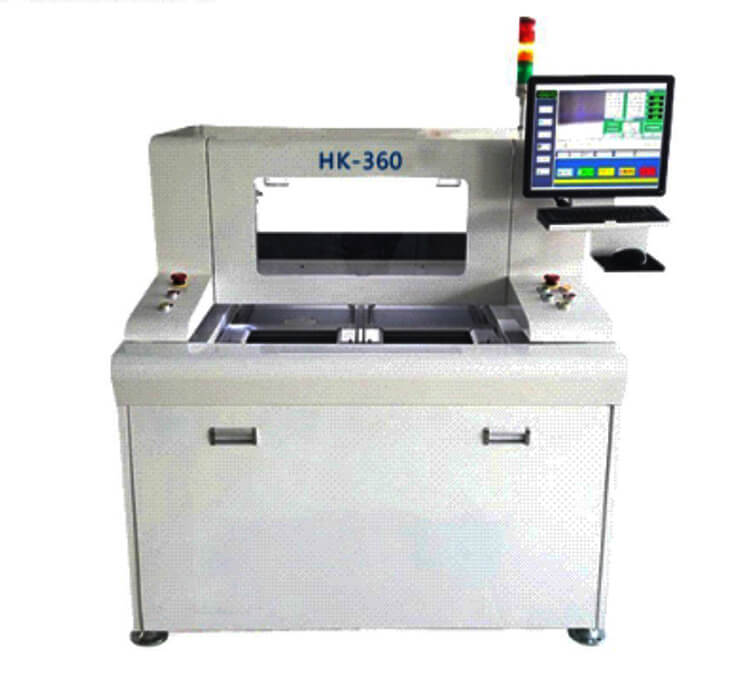

PCB V Cutting Machine Depanelizing HK360

HK-360 Mainly use iron knife high-speed operation, dual-platform four-axis servo drive to split the multi-chip PCB according to the pre-programmed path, replacing manual breaking or V-CUT or PUSH cutting defects, stress damage, and improving product quality. Reduce the scrap rate, this machine adopts man-machine interface, AC servo motor, WIN7 system operation interface, through the high-pixel CCD production program to teach editing the cutting path, and can be modified and simulated in a single step, using two servo mobile platforms as the exchange of PCB The upper and lower substrate device can effectively reduce the idle time of the machine, thereby achieving higher production efficiency and quality. The software has MAKE compensation, same workbench duplication, double workbench duplication, equipped with large, medium and small three windows for more precise programming, adding a rectangular frame on the basis of the original target, programming is more intuitive and accurate programming, MAKE geometric alignment is automatically captured, The two tables are completely independent of parameters. Compared with the traditional three-axis machine, the response is faster, the parameters are more independent, the efficiency is higher, and the cutting accuracy is more guaranteed.
The high-speed spindle adopts the Japanese NSK spindle motor widely used in the industry's high-end splitters. The spindle has high speed, long service life, convenient installation and unloading, and the cutting surface is smooth, burr-free, and flawless. And equipped with the original Japanese NSK spindle inverter, so that the spindle motor has a longer service life, higher cutting force, and the lowest temperature rise effect.
Using servo-driven two working platforms to alternately process and place PCB substrates, reduce waiting time, increase production capacity, and solve the accuracy problem of the steam red drive platform.
High-pixel color CCD and large magnification lens can assist program teaching and editing simulation functions. from
Move the MARK incorrect positioning system to improve the cutting accuracy. The board is not placed in place and the substrate is cut by mistake. It is faster to copy the left and right programs and switch models. Optional barcode reading function to realize 1D/2D barcode reading and save or upload, which is convenient for traceability and digital management.
