  • JT Wave Soldering Machine WS-350

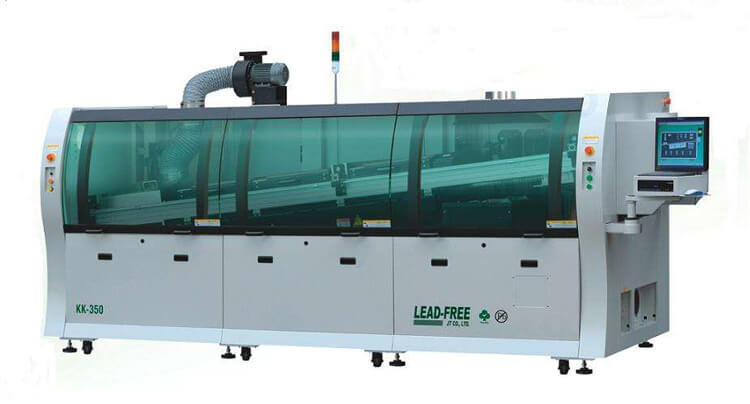

JT Wave Soldering Machine WS-350

JT Wave Soldering Machine WS-350

  • No. of preheating zones:4
  • Preheating length: 1800mm
  • Control system: PC + PLC
  • Dimensions:3600 x 1350 x 1750
  • Product description: JT Wave Soldering Machine WS-350, No. of preheating zones:4, Preheating length: 1800mm, Control system: PC + PLC, Dimensions:3600 x 1350 x 1750

JT wave soldering machine WS-350


dimension:l*w*h(mm) 3600 x 1350 x 1750
weight(kg) approx.2300kg
power supply 3p5w,380v 220v 50hz 63a
startup power (kw) 25kw
operation power consumption 10kw
control system pc+plc
transmission methed air cylinder
spray pressure 0.25mpa--0.4mpa
flux flow 10--100mlmin
exhaust methed up & down exhaust
control mode pid + ssr+hot air
preheating zoon number 4
preheating length 1800mm
preheating temp. room temperature-300℃
pcb width (l x w)(mm) max.350mm
conveyor direction l to r; r to l
conveyor speed(mmmin) 0-2000
spray method by motor
component height(mm) top 120(option 160) bottom 15
conveyor width control manual
solder pot style motor drive
solder pot material full titanium
wave height adjust digital control by pc
flux fill in automatic fill
heater power 380vac 8kw
solder pot temperature 300℃
solder pot capacity lead-free 350kg
cooling method forced airairchiller(option)
finger cleaning system brush.


Wave Soldering MachineDual Rail Wave Soldering MachineHigh End Wave Soldering MachineNitrogen Wave Soldering MachineChina Wave Soldering MachineWave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quali
