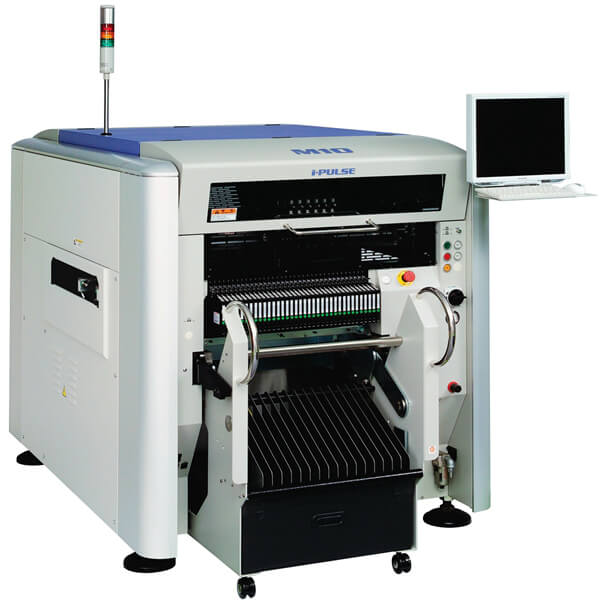

I-Pulse M10 Pick and Place Machine

I-Pulse M10 Pick and Place Machine

  • I-Pulse M10 Pick and Place Machine
  • Optimum speed 30,000CPH
  • Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm
  • Feeder platform: 72 positions
  • Product description: I-Pulse M10 Pick and Place Machine, Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm, Feeder platform: 72 positions
  • INQUIRY

I-Pulse M10 Pick and Place Machine

Description:

Refer to these specifications for the M10:
Feeder platform        72 positions
Maximum PCB size L 740mm x W510mm
Applicable components 01005 (0402mm) ~120mm x 90mm (30mm height) BGA,
CSP, oddform, connectors etc
Optimum speed       30,000CPH
Accuracy       CHIP +/- 0.040mm IC +/- 0.025mm

The M10 has all the features of its superior but with half the feeder capacity , the M20
represents the next generation in SMT Automation. Applying the same range of interchangeable
feeder banks and tray handlers, the M10 makes an excellent complement to existing iPulse
lines and a highly flexible mounter for the placement of fine pitch and tray feed parts.
The greater PCB handling permits production capability that has never before seen in a
compact footprint mounter. The increased component height and overall component dimension
capability expands the range of placeable components, making the M10 one of the most flexible
and accomplished machines ever presented from iPulse.

Available in 4 and 6 head configurations, the M10 can be custom tailored to your needs.  A
maximum of 72 can be fixed on the feeder banks or on changeable banks of 36 feeders each
making a fast and easy change over. The 36 feeder changeable rear bank can be swapped with a
40 tray changer. The M10 comes with new standard features such as ‘Force Control Function,’
allowing adjustment and measurement of the downward force applied to components being placed
from 5N to 60N. Placement verification is another standard feature using a downward looking
camera, eliminating the need for a separate after placement inspection machine
