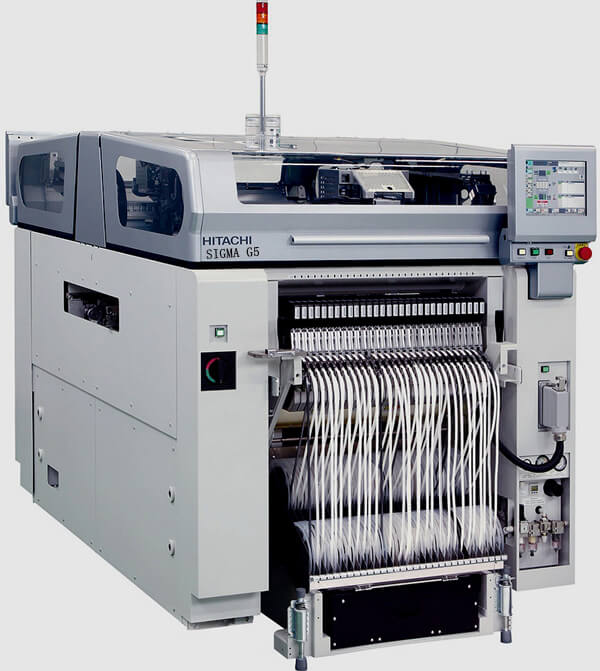

Hitachi SIGMA G5 Pick and Place Machine

Hitachi SIGMA G5 Pick and Place Machine

  • Hitachi SIGMA G5 Pick and Place Machine
  • Mounting Speed: 84500chip
  • Placement range 1005 (0402) -32mmIC
  • Placement accuracy: 0.03mm
  • Product description: Hitachi SIGMA G5 Pick and Place Machine -Good Price! Good Quality! Good Service!
  • INQUIRY

Hitachi SIGMA G5 pick and place machine

Products Description:


The SMP Electronics business unit located in Orlando, FL maintains an ultra-modern facility

for the manufacture of DIS Ignition Modules, Solid State Relays, Remote Start Relays,

MAP sensors and other automotive electronics parts. These products are manufactured

for sales and distribution directly by SMP sales force, to the original equipment,

original equipment service and traditional market channels. At this SMP electronics facility,

highly automated and flexible production lines and advanced processes can produce

over 110 different modules and up to three-quarters of a million modules annually


Maximize space this high speed pick & Place features dual side operation, doubling the feeder

capacity of our SIGMA-G4. SIGMA comes packed with standard features and options

to meet all your needs.


Compact Premium Modular Mounters SIGMA-G4 and SIGMA-G5 achieve high productivity

and high quality with functions such as direct drive head, overdrive motion detection apparatus,

and linear motor driven XY beams. SIGMA-G4 and SIGMA-G5 allow you to quickly change the

head units and tray units so that you can flexibly handle changes of component types.

These mounters offer significantly improved maintenance such as easy cutter unit detachment.


Concept:
Over drive motion
Ultimate access
Super wide range DDH V5
Smart operation
Voluntary line operation
Wide open &Easy access
Quick exchange
Auto changeover PP type
LISA
Feeder hot swap

Chip theory speed 84500chip
Placement range 1005 (0402) -32mmIC
Placement accuracy plus or minus 0.03mm
Power 1.80kWh



Hitachi Mounter SIGMA G5 Features: SIGMA G5 models can be mounted spotlights television sets,

LED lamp shade, and is the only ultra-fast, turret structure mounted transparent lamp placement machine!


Hitachi SIGMA G5 parameters
Mounting head structure of high-speed head 2 placement head / module, 15 nozzle / placement head
Universal head 2 placement head / module, 3 nozzle / placement head

High-speed head 70,000 cph (1 module)
Universal head 14,500cph (1 module)

High precision head 40um with 30um head

Applicable components Length and width High-speed head 0.4 × 0.2mm ~ 44 × 44mm


Universal head 1.0 × 0.5 ~ 55 × 55mm 150 × 26mm

Thickness of high-speed head 12.7mm universal head 25.4mm

Power AC3 phase 200V ± 20V 50 / 60Hz
Apparent power is about 7.4 kVA
Power consumption per hour is about 1.80kWh
Ambient temperature 20 ± 10 ℃
Ambient humidity 30 ~ 80%
Air pressure 0.45 ~ 0.69Mpa (4.6 ~ 7Kgf / cm2)
Vacuum pressure -93kPa
Floor load-bearing 1,009kg / ㎡

Operating system and display Windows xp; color LCD touch panel display

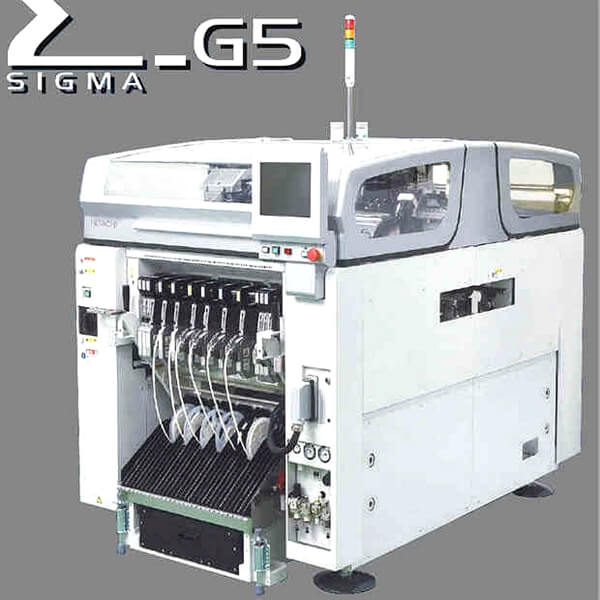

Σ series SIGMA G5 module placement machine

Hitachi Σ series direct drive module Mounter equipped with 15 nozzle direct drive head,

linear motor drive XY axis, do not stop a recognition,

Y axis optimization adjustment to achieve a high yield of 65000CPH.


1.Device configuration:
2 head 2-axis camera structure

Constructed from one mounting line and one board is mounted at the same time,

two boards with a board width of less than 216 mm can be produced simultaneously

The two heads before and after each loading line are continuously

suctioned and installed for high throughput

By matching the head module to the parts supply module, a device that conforms to

the production mode can be configured on any two of the two processing zones

By using gull-wing covers and securing the working area between the devices when

connecting, an excellent working environment is achieved

Front and rear equipped with a large touch panel monitor,

thereby enhancing the operating performance

2. Mounting head module of the stress

According to production patterns for high-speed placement head,

multi-functional placement of the first free combination of configuration.

High-speed placement head through the replacement nozzle to

achieve a variety of parts 0402 ~ 44mm stress

Parts with a maximum of 55 mm, connectors with a maximum length of 100 × 26 mm,

and parts with a thickness up to 25.4 can be produced using the multi-purpose mounting head.

3. Linear motor drives XY axes
Equipped with a fully enclosed linear scale control

Equipped with an intermeshing control device that can monitor two Y axes with each other,

a rigid dual drive is achieved, enabling high-speed, high-precision positioning.

Through the use of linear motors, to simplify the structure, resulting in long-term maintenance-free
4. Module placement machine equipped with a direct drive head
Hitachi alone direct drive head servo motor, so as to achieve a higher accuracy

Each drive head can suck up to 15 suction nozzle, through the adsorption of 15 components,

reducing the number of XY axis reciprocation, enabling high productivity

Nozzle holder can be easily removed, you can replace the nozzle outside the placement machine
5. Achieve high speed through non-stop batch identification
Each processing area equipped with component recognition camera

Through the XY axis synchronization control, high-intensity strobe flash and the establishment

of telecentric lens, to achieve the highest speed camera

A one-time video capture of 15 components was achieved

6. Each placement head is equipped with a laser sensor to check the number of components

(whether the erection, the level of absorption) for a full inspection, and the stable mounting

of a very small patch by feedback of the pickup height.

7. Enables high-throughput substrate Y position adjustment

The Y position of the substrate can be adjusted to the optimum position according to the size

of the substrate and the number of mounting components between the front and rear axles.

This adjustment can improve the balance of the coordinated actions

of the front and rear axles to achieve high output.

8. High intelligent feeding system
8mm double belt feeder can carry up to 120 varieties.Tracking pitch can be changed by program setting.
Through the splicing of the belt, components can be supplied during operation to reduce the non-working time
One-time change of trolleys by the feeders makes it possible to change one feeder to another one at a time.
9. Multi-section pallet feeders can be set up anywhere in the entire processing area

SIGMA G5 Main body Multi-section tray feeders that can be set anywhere

in the two processing zones.

Adopts placement head direct access, through the tray alternate function

and tray alternate function, even in the production can also supply tray.


Flason Electronic can also supply you the following HITACHI Feeders.

Also Feeder Parts and Hitachi GXH bank feeder change carts, Hitachi Sigma G5 bank feeder change carts.

also have sigma G5 machine and Sigma G5S machine to sell.


8MM GT-08080/GT-08081/GT-08082/GT-08083
8MM GT-18080B/GT-18081B/GT-18082B/GT-18083B
8MM GT-18080C/GT-18081C/GT-18082C
8MM GT-28080/GT-28081/GT-28082
8MM GT-38080/GT-38081/GT-38082
12/16MM GT-12160/GT-12161/GT-12162
24/32MM GT-24320/GT-24321/GT-24322
44/56MM GT-44560/GT-44561/GT-44562
72MM GT-72000/GT-72001/GT-72002
88MM GT-88000/GT-88001/GT-88002
8MM GD-08080/GD-08081/GD-08082
8MM GD-18080B/GD-18081B/GD-18082B
8MM GD-18080C/GD-18081C/GD-18082C/GD-18083C
8MM GD-28080/GD-28081/GD-28082/GD-28083
8MM GD38080/GD38081/GD38082
12/16MM GD-12160/GD-12161/GD-12162
24/32MM GD-24320/GD-24321/GD-24322
44/56MM GD-44560/GD-44561/GD-44562
72MM GT-72000/GT-72001/GT-72002
88MM GT-88000/GT-88001/GT-88002
8MM SL-48085/SL-48086/SL-48087/SL-48088
