  • ASM SIPLACE TX Pick and Place Machine

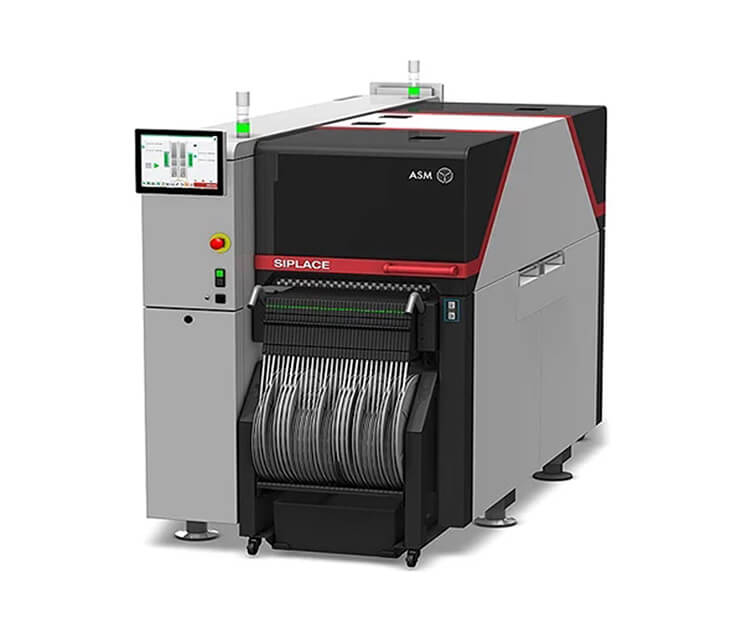

ASM SIPLACE TX Pick and Place Machine

ASM SIPLACE TX Pick and Place Machine

  • Speed:78,000 cph
  • PCB Size : 375 x 260 mm
  • Feeder input:80
  • Chip Range 0201 (meter) - 6 x 6 mm
  • Product description: ASM SIPLACE TX Pick and Place Machine,Speed:78,000 cph, PCB Size : 375 x 260 mm, Feeder input:80, Chip Range 0201 (meter) - 6 x 6 mm
  • INQUIRY

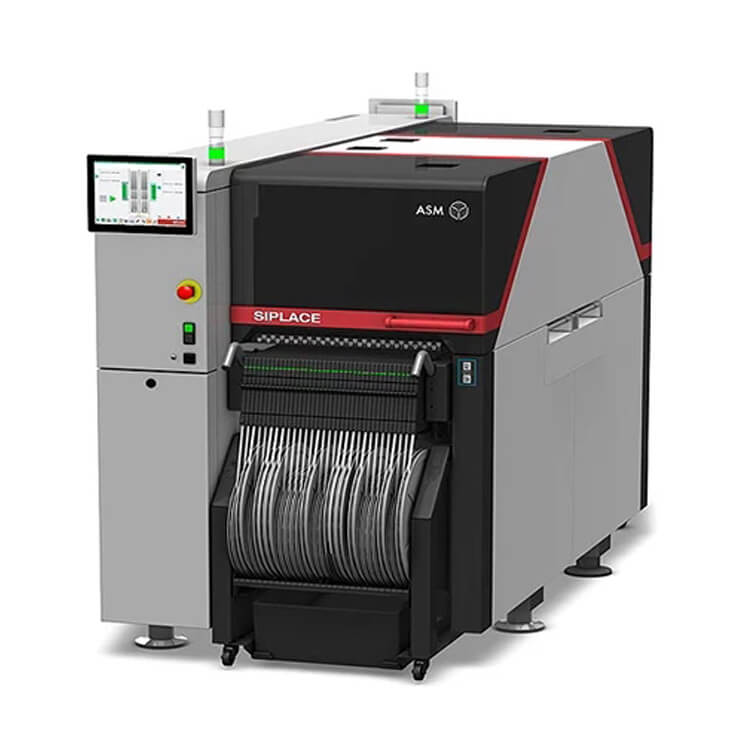

ASM SIPLACE TX Pick and Place Machine

Specifications:



Features of ASM SMT Chip Shooter

SMT smart factory SMD line machine with ASM pick and place machine, SIPLACE TX placement, for SMT assembly line.

Specification of ASM SMT Chip Shooter

1. Capacity on Demand: Scale the performance of your SMT lines up or down as needed – quickly and easily
2. The SIPLACE SpeedStar – faster, more precise, and longer-lasting
3. SIPLACE TwinStar: The head for special tasks
4. SIPLACE MultiStar: Switches between placement modes on demand
5. ASM smart transport modules: Process PCBs with lengths of up to 1.525 meters
6. LED centering: Align components based on top-side features
7. Place critical components reliable with the SIPLACE (OSC) Package
8. Touchless placement: Maximum placement quality for highly sensitive components
9. SIPLACE SpeedStar and SIPLACE MultiStar heads can operate jointly in the same placement area for more flexibility and performance.
10. Minimum placement force: 0.5 N
11. SIPLACE Smart Pin Support: Automated pin support for printed circuit boards
12. NEW: ASM Shuttle Extension: Active transport unit for easy management of single and dual conveyors

13. NEW: Up to 17% higher performance

Specifications

SIPLACE TX1

SIPLACE TX2

SIPLACE TX2i

Placing head

1

2

2

IPC Speed

32,500 cph

65,000 cph

67,000 cph

Basic Speed

37,500 cph

75,500 cph

78,000 cph

Theory Speed

50,200 cph

100,500 cph

103,800 cph

L x W x H

1.0 x 2.3 x 1.45* m

1.0 x 2.3 x 1.45* m

1.0 x 2.2 x 1.45* m

Chip Range

0201 (meter) - 6 x 6 mm

01005 - 50 x 40 mm

0201 - 55 x 45 mm

Accuracy

± 30μm / 3σ

±40 μm / 3σ (C&P)

±22μm/3σ

Angle Accuracy

± 0.5° / 3σ

± 0.4° / 3σ (C&P)

± 0.05° / 3σ

Component Height

4 mm

11.5 mm

25 mm

Placing Pressure

1.3 - 4.5 N

1.0 - 10 N

1.0 - 15 N

Conveyor type

Dual Rail conveyor

Conveyor Model

Asynchronous, synchronous, independent placement

PCB type

45 x 45 mm - 375 x 260 mm

PCB Thickness

0.3 mm - 4.5 mm

PCB weight

Max 2.0 kg

Feeder

80 pcs 8 mm feeder port

Feeder type

SIPLACE IT feeder
