  • Yamaha sigma-F8S High speed surface Mounter for SMT Assembly line

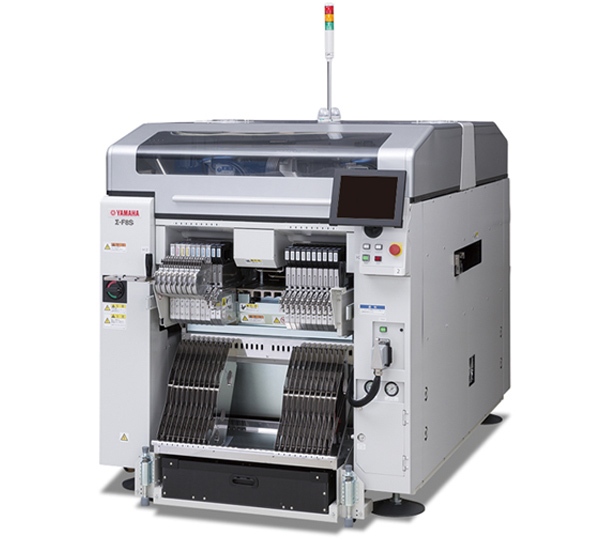

Yamaha sigma-F8S High speed surface Mounter for SMT Assembly line

Yamaha sigma-F8S High speed surface Mounter for SMT Assembly line

  • Speed: 150,000 CPH
  • Applicable PCB: L 330 x W 250 mm - L 50 x W 50 mm
  • Weight:1,940KG
  • Dimension: L 1,280 x W 2,240 x H 1,450 mm
  • Product description: Yamaha sigma-F8S High speed surface Mounter for SMT Assembly line-Good Price! Good Quality! Good Service!
  • INQUIRY

yamaha sigma-F8S High speed surface mounter for smt assembly line

Introduction of Yamaha sigma-F8S High speed surface Mounter for SMT Assembly line

The sigma-F8S, a new model of premium modular “sigma” series, is an evolutionary advancement of the sigma-F8. The existing model employs a rotary direct drive head to achieve 150,000 CPH*2 (in optimum conditions), the world’s fastest level. The sigma-F8S achieves an effective 5% tact improvement on average and greater productivity compared to the existing version, and with its improved mounting accuracy this new model is also capable of handling the extremely small-sized 0201 (0.25 x 0.125 mm) chip components.
The second new model, the Z:LEX YSM20W, retains the flexibility and efficiency across a range of diverse production conditions and the same high-speed capability, component handling, and scalability as the high-efficiency Z:LEX YSM20 mounter. In addition, the Z:LEX YSM20W is a Z:LEX wide-body model that features significantly increased PCB adaptability, and which can handle up to extra-large-sized PCB's larger than L size*3, and larger than M size*3 PCB's in dual-lane production.
The new sigma-F8S and the Z:LEX YSM20W will be on display at the 45th INTERNEPCON JAPAN trade show for electronics manufacturing and surface mount technology (SMT) to be held from January 13-15, 2016 at the Tokyo Big Sight (Ariake, Koto-ku, Tokyo).
*1:Surface mounters: Production equipment designed to mount various electrical components onto PCB's (Printed Circuit Boards), which are then incorporated into electronic products.
*2:CPH (Chips Per Hour): Total number of chips that can be mounted per hour (unit time). Indicates processing capability under various conditions.
*3:L Size=510 mm x 460 mm, M Size=330 mm x 250 mm. Both sizes are Yamaha Motor standards

High-Efficiency Modular Z:LEX YSM20W
Model
sigma-F8S
Z:LEX YSM20W
Release
April 1, 2016
February 1, 2016
First Year Target Sales
(within Japan and internationally)
50 Units
75 Units
Market Background and Product Outline

In recent years, miniaturization, high-densification, high functionality, and diversification as well as shortened product cycles have increasingly accelerated for a variety of products such as consumer electronics, personal computers, and mobile telephones. Along with faster speeds, flexibility in order to efficiently accommodate small-scale varied production up to mass production on the same line is required in electronic component mounting processing for the above types of products.
In response to this, based on the popular high-performance existing model sigma-F8, the newly-developed sigma-F8S premium modular has achieved a new level with the addition of leading-edge technology including a lighter-weight axis drive system and new servo control technology. This new model now has an approximately 5% improved effective tact on average, as well as being capable of handling the extremely small-sized 0201 (0.25x 0.125 mm) chip components.
A new edition in the Z:LEX series, the YSM20W, provides flexibility and efficiency in various forms of production without the need for replacing the head thanks to the "1 head-solution" concept. This new model is a wide-body version of the Z:LEX YSM20 universal modular, and it provides both high-speed and versatility at a high level. It is now capable of handling extra-large-sized PCB's for automotive products, industrial, medical, power devices, and LED lighting etc. with its significantly increased adaptability to PCB sizes and weight. In addition to this, the dual-lane specification provides benefits from mass production in dual-lane production with its ability to handle not only small mobile device type small PCB work, but also PCB's at larger than M sizes.
From mass high-speed production to highly-versatile multi-product capable production comes a complete surface mounter line-up that meets the changing needs of the market. Here, Yamaha Motor takes advantage of its full line-up of surface mounters, solder paste printing equipment, dispensers, and testing systems etc. to achieve improvements in quality and efficiency for production in all types of products through total line-up solutions that build synergies between mounting line equipment.
sigma-F8S: New Features

1) Improved productivity and accuracy due to revised XY axis design
Introduction of leading-edge control technology together with the adoption of an off-set type linear motor through a logic-based design revision of the XY drive axes. The supporting beam of the head has been made more lightweight and with reduced vibration. Because of this, the effective tact delivers a 5% productivity improvement on average over existing models. At the same time, mounting accuracy of ± 25um (3sigma), which corresponds to handling the extremely small-sized 0201 chip components, has also been achieved.
2) Compatibility with Current sigma Series Model
Compatibility of the main options with the current model ?-F8 has been maintained, including with the head, nozzle, nozzle stocker, and tape feeder. This allows for users of the current ? series to continue to use their specialized equipment as they implement this new equipment hassle free.
Z:LEX YSM20W New Model Features

1) Outstanding versatility thanks to industry top level PCB adaptability
Handles a maximum PCB width of up to 356 mm where the same width PCB is being conveyed at the front and rear while in dual-lane specification mode. In this case, the head will continue to function without front or rear head strike for up to a maximum PCB width of 324 mm achieving high-efficiency implementation without loss.
In single-lane specification mode, PCBs can be conveyed at up to a maximum length of 810 mm, maximum width 742 mm, a conveyable weight of up to 10 kg, and a thickness of up to 8 mm. This new model is also compatible with a wide range of extra-large-sized PCB's and jig conveyance etc., including for automotive products, industrial, medical, power devices, and LED lighting.

Basic Specifications

Model

sigma-F8S

Applicable PCB
Dimensions

Single lane

L 330 x W 250 mm  -  L 50 x W 50 mm
(Option: L 381x W 510 mm  -  L 50 x W 50 mm)

Dual-lane

L 330 x W 250 mm  -  L 50 x W 50 mm

Applicable Components

High-speed head: 0201 - 4.3 x 3.4 mm
(Height 2.0 mm or less)

High-speed Multi-Purpose head 03015- 33 mm
(Height 12.7 mm or less)

Mounting capability
(The Company's optimum
conditions)

High-speed head x 4 Spec:
150,000 CPH (Dual-lane)
136,000 CPH (Single lane)

Mounting accuracy
*In the Company's optimum
conditions
(standard material used for
evaluation)

High-speed Head:
0201/03015: ±25um (3sigma) (140,000CPH)
0402/0603: ±36um ( 3sigma) (150,000CPH)

Number of component types

Max 80 types (8 mm width tape conversion)

Power supply

Three-phase AC 200±10%  50/60 Hz

Air supply

0.45 MPa or more, clean and dry state

External dimensions
(not including projected parts)

L 1,280 x W 2,240 x H 1,450 mm

Weight

Approx. 1,940 kg (Not including cart)


Model

YSM20W

Applicable PCB
Dimensions

Single lane

L 810 x W 742 mm - L 50 x W 50 mm

Dual-lane

L 810 x W 356 mm (×2) - L 50 x W 50 mm
(Front lane Max W 662 mm)

Applicable Components

High-speed Multi (HM) Head:
03015 – 45 x 45 mm L 100 mm (Height 15 mm or less)

Flexible Multi (FM) head:
03015 – 55 x 55 mm L 100 mm (Height 28 mm or less)

Mounting capability
(The Company's optimum
conditions)

X is 2 Beam:
At High-speed Multi (HM) Head x 2 spec
80,000 CPH

Mounting accuracy
*In the Company's optimum
conditions
(standard material used for
evaluation)

±0.035 mm (±0.025 mm) Cpk>1.0 (3sigma)

Number of component types

Fixed plate: Max 140 types (8mm Tape Conversion)
Feeder Exchange Carriage: Max 128 types
(8mm Tape Conversion)
Tray: 30 types (Fixed type), 10 types (Carriage type)
can be equipped with up to a total of two carriages

Power supply

3-phase AC 200/208/220/240/
380/400/416 V ±10% 50/60 Hz

Air supply

0.45 MPa or more, clean and dry state

External dimensions
(not including projected parts)

L 1,374 x W 2,110 x H 1,480 mm

Weight

Approx. 2,500 kg
