  • Samsung SM411 Pick and Place Machine

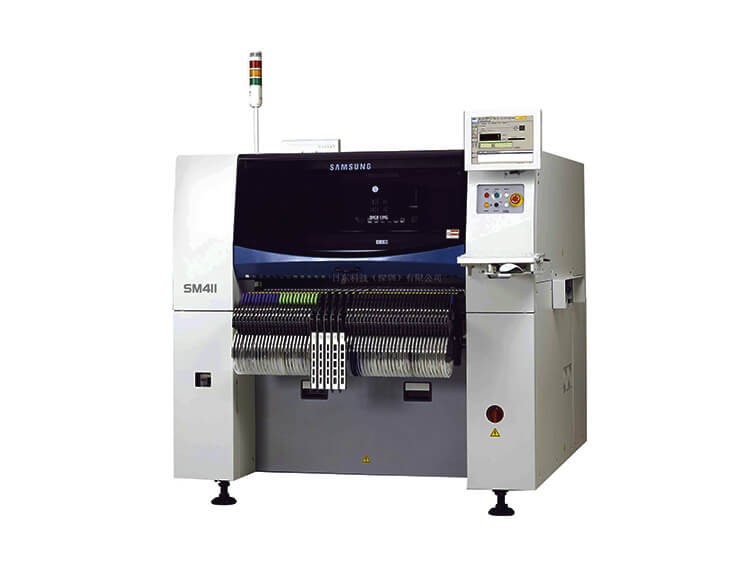

Samsung SM411 Pick and Place Machine

Samsung SM411 Pick and Place Machine

  • Samsung SM411 Pick and place machine
  • Patch speed 42,000CPH
  • PCB size 510 (L) x 460 (W)
  • Equipment weight 182kg
  • Product description: Samsung SM411 Pick and Place Machine -Good Price! Good Quality! Good Service!
  • INQUIRY

samsung SM411 pick and place machine

Products Description:

Chip theoretical speed 42,000CPH
Mounting range 0402 chip to the largest □ 14mmIC
Positioning accuracy of plus or minus 0.05mm
PCB size 510 (L) x 460 (W)
Equipment Size 1,650 (L) x 1,690 (D) x 1,535 (H)
Maximum power 5.0k VA
Equipment weight 182kg

The SM411 is based on On Fly, a Samsung patented, fastest-mount mid-speed machine

with dual cantilever architecture for chip components 42,000 CPH,

SOP components 30,000 CPH (IPC9850 standard) World's fastest in its class The patch speed.

And, it is also possible to implement high-precision 50-micron high-precision chip,

which from the minimum 0402 chip to the maximum □ 14mmIC components so far,

can implement the patch.

advantage:
Parallel dual-track, PCB handling time 0 seconds
Very low material loss rate: two ten thousandths
Samsung's unique flight-centered recognition system (Fly Vision)
Feeder component position automatic identification function
Advanced flat wire structure
Anti-static ESD nozzle
New non-stop feeder

PM Manager Management Features:
IPC9850 standard can mount 42,000CPH (Chip 1608)
Dual Manipulator Drive System (12 heads)
In flight recognition system of images
Y-axis dual servo motor drive system
Bilateral standard feeder base
Can be installed 120 8mm belt feeders
Reference point recognition camera
Automatic nozzle replacement device

Color LCD
Double rail transfer system
Rail width automatically adjust
PCB edge clamping device
Feeding process tracking sensor
Windows XP operating system
Order and feed sorting automatic optimization program
A standard nozzle

Samsung SM411 parameters
To the way the flight vision
Number of Spindles 6 Spindles x 2 Gantry
Mounting Speed Flying Vision Chip 1608
SOP 42,000 CPH (IPC9850)
30,000 CPH (IPC9850)
Mounting accuracy Chip ± 50 μ @ 3σ / Chip
(Based on the standard chips)
Narrow pitch mounting 0.1mm (0603) / 0.15mm (1005)
Components range of 0603 ~ □ 14mm Chip, QFP, BGA
(Option: 0402 Please contact us. The more information will be available upon your request.)
Minimum pin pitch (QFP)
Minimum ball pitch (BGA) 0.5mm (QFP) / 0.65mm (BGA)
The maximum height H = 12mm
Board Size (mm) Min 50 (L) x 40 (W)
Maximum 510 (L) x 460 (W)
(Single Lane Mode, 460 (L) Excess: No Buffer)
460 (L) x 250 (W) (Dual Lane Mode)
610 (L) x 460/250 (W) (Option)
PCB thickness 0.38mm ~ 4.2mm
Number of feeders 120ea / 112ea (Feeder changer)
Power Consumption Power consumption AC200 / 208/220/240/380/415 V (50 / 60Hz, 3Phase)
Max. 5.0kVA
Air consumption of 0.5 ~ 0.7MPa (5.1 ~ 7.1kgf / cm2), 300N? / Min
Weight 1,820kg
Dimensions (mm) 1,650 (L) x 1,690 (D) x 1,535 (H)



Keywords:

China reflow oven, Pick and place machine factory,China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer,pick and place machine supplier.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
