  • Samsung SM320 Pick and Place Machine
Samsung SM320 Pick and Place Machine

Samsung SM320 Pick and Place Machine

  • Samsung SM320 Pick and Place Machine
  • Chip theoretical speed :18500CPH
  • PCB size 510 * 460
  • Mounting range 0402mm Chip ~ 55mm IC
  • Product description: Samsung SM320 Pick and Place Machine -Good Price! Good Quality! Good Service!
  • INQUIRY

samsung SM320 pick and place machine

Products Description:

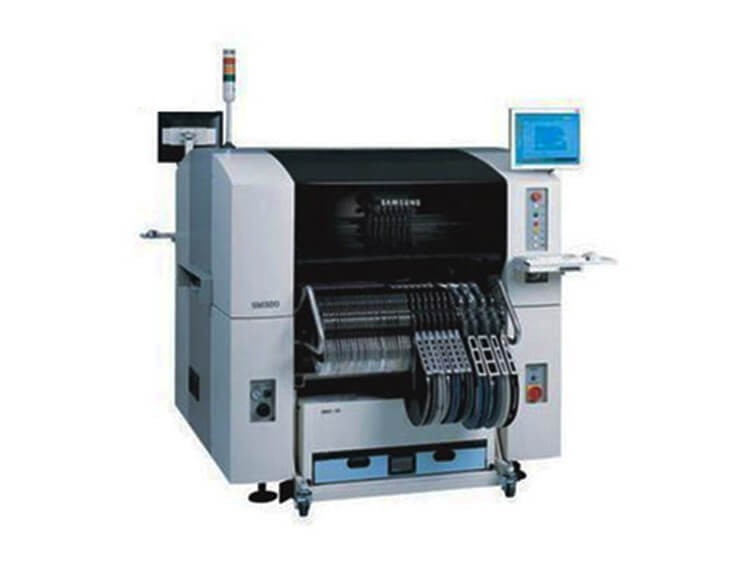

used Samsung SM320 placement machine.
all equipment have good working condiction and competitive price!

Chip theoretical speed :18500CPH
Mounting range 0402mm Chip ~ □ 55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm


Component identification method
FLYING VISION + STAGE VISION
Mounting efficiency
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)

Components can be mounted range
FLYING VISION:1005 ~ □ 22mmIC (Option: 0603 ~ □ 12mmIC / 0402 ~ □ 7mmIC)

Mounting size:Standard stage vision (FOV 35) ~ □ 32mmIC

(Pitch 0.4mmQFP / 0.75mmBGA / ~ □ 55mm (MFOV))

Standard stage vision (FOV 45) ~ □ 42mmIC (Pitch 0.5mmQFP / 1.0mmBGA / ~ □ 55mm (MFOV))


Standard stage vision (FOV 20)~ □ 17mmIC (Pitch 0.3mmQFP / 0.5mmBGA)

Min.lead pitch (QFP) FOV10

0.3mm (QFP) /0.65mm (BGA)

Min.Ball pitch (BGA)
FOV15
0.5mm (QFP) /0.75mm (BGA)

FOV25
0.5mm (QFP) /0.75mm (BGA)
Max.Height
H12mm (Flying camera standard)
H15mm (Flying camera standard)
PCB board size
smallest size
50 (L) * 40 (W)

biggest size
460 (L) * 400 (W) / Option: 510 * 460, 640 * 510

PCB board thickness
0.38mm-4.2mm
Install feeder number

120ea / 112ea (docking cart)
Pressure and power consumption
power supply
AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) (Option: 340/380 / 415V)

Air pressure
5kg / ㎡, 260 NI / MIN
Machine weight
1800KG
Machine size
1650 L * 1680 D * 1530 H.

Samsung SMT SM320 is a universal Mounter, can produce small pieces of CHIP materials,

but also can produce QFP material, suitable for small-scale production of independent products,

but also can be used in high-life turret Mounter Line for multi-functional chip processing.

Equipment, small size, light weight, does not account for the place.

Popular SM320. Highly Flexible, user friendly machine and highly reliable. Full vision with 6

placement heads, each with individual illumination allowing 6 totally different components to

be aligned on the fly. Upward looking camera allowing placement of components down to 0.4mm Lead pitch.


Features:
Full Vision Mounter 19k cph
Vintage 2005
Fully Overhauled & Re-Painted
Large PCB Size 610mm x 400mm
01005 ~ 22mm Square by Flying Vision Alignment (01005 Camera as option)
0.4mm Lead pitch @ 32mm Square using Vision Alignment
0.3mm Lead pitch camera included

BGA/CSP/uBGA by Vision Alignment

Feeder Capacity up to 120 x 8mm Feeders
IPC rated speed of 18'500cph (IPC9850 1608Chip)
Full set of nozzles to cover all component types
Large Component Library as Standard withmore than 1'800 component types
CAD Import facility as standard
Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.

Small Footprint for this Industrial Machine


Additional Features:
Takes Standard Easy to use SM Clamp Feeders, colour coded for ease of identification
Great addition to any Existing line to add capacity or fine pitch
Machine will be fully overhauled by our Experts
Warranty offered and fully supported by Elite 7 Installations Ltd.
Latest Software will be loaded
Fully tested & rebuilt



Keywords:

China reflow oven, Pick and place machine factory,China chip mounter, SMT chip mounter Manufacturer, Lead Free Reflow Oven factory, wave soldering machine manufacturer,pick and place machine supplier.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including Lead free reflow oven, wave soldering machine, SMT pick and place machine, smt stencil printer, PCB conveyor manufacturer, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com



FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !


Contact information
