  • Classic HITO SMT Stencil Printer
Classic HITO SMT Stencil Printer

Classic HITO SMT Stencil Printer

  • Gross Power: 50W
  • Voltage: 220V
  • size:
  • Weight:1000Kg
  • Product description: Classic HITO SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!
  • INQUIRY

Classic HITO smt stencil printer

Products description

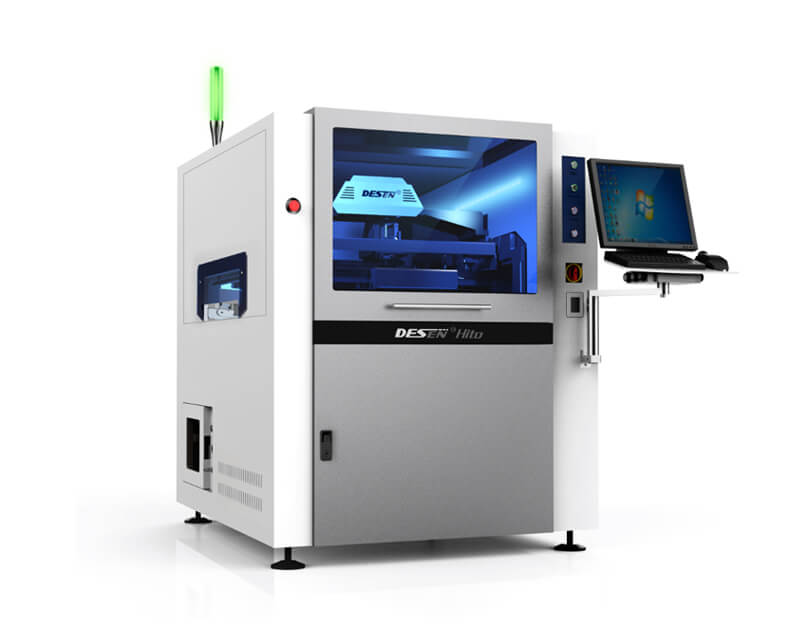

Full automatic visual printing machine HITO

●Milestone, high precision customized product

Product features:

The whole machine is fully controlled by servo system;

Automatic pressure feedback system;

Multifunctional image processing system

Precise PCB transportation system;

Intelligent PCB holding device;

Automatic steel mesh positioning module;

Automatic and effective steel mesh cleaning system;

User-friendly operation interface


Our SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification :
High Precision Automatic solder paste printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~1200mm x 800mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Precision


printing precision

≥2 Cpk@±18μm@,6σ

Repeat printing

≥2 Cpk@±8μm@,6σ

Cycling time

7s

Screen frame

creen frame dimension

470*370mm-737*737mm
Screen frame fixation

air cylinder

Screen frame adjustment

automatic

Platform

platform adjustment range

X:±4mm Y:±6mm

Platform adjustment angle

Z:±2°
PCB

printing size

standard:Min50*50mm Max460*340mm(optiona:510*340mm)

PCB thickness

0.4mm-5mm
PCB weight ≤3kg
PCB  warping

maximum warping7mm(including base plate

Transmission

transmission direction

L→R,L→L,R→L,R→R

Transmission speed

100-1500mm/s programmable adjustment

Transmission width

50-340mm

Demould

Demould method

First use scraper, then demould, demould then use scraper, maintain pre-pressure for demould (surface demould, line demould)

ning system

Demould speed

0.1-20mm/s

Speed distance

0mm-3mm

Work condition

Voltage requirement  220V,±10%,Single-phase 50/60Hz。

Power

3kw

Air pressure

0.45-0.6MPa

Gas consumption

0.5ml/s

Safety performance

insulation resistance

1KV/3MΩ

Ground resistance

≤0.1Ω

Operation noise

≤87dB
