  • ASE SMT Stencil Printer

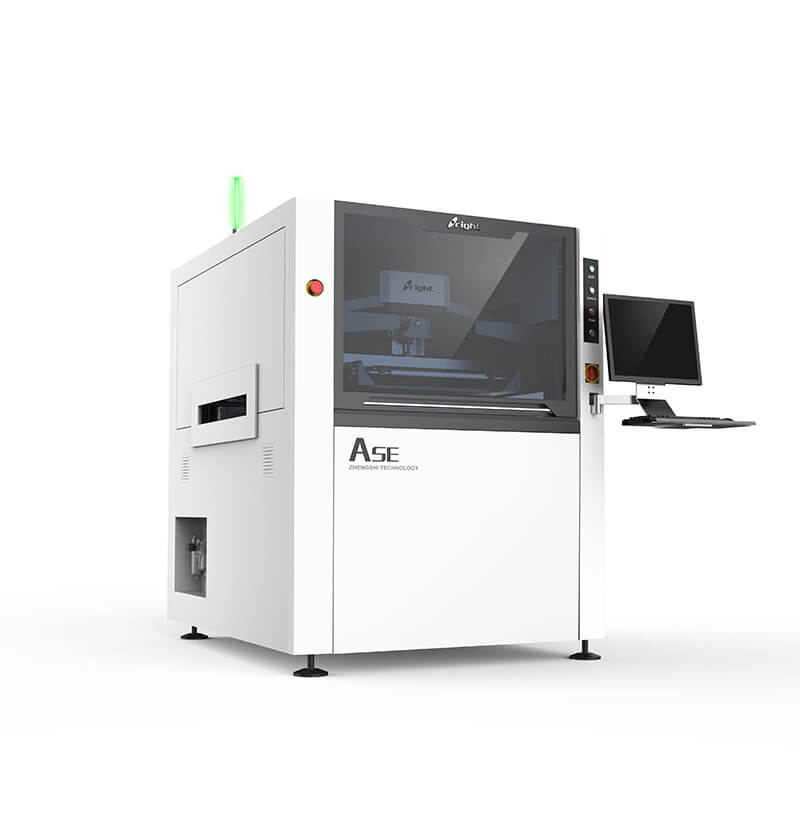

ASE SMT Stencil Printer

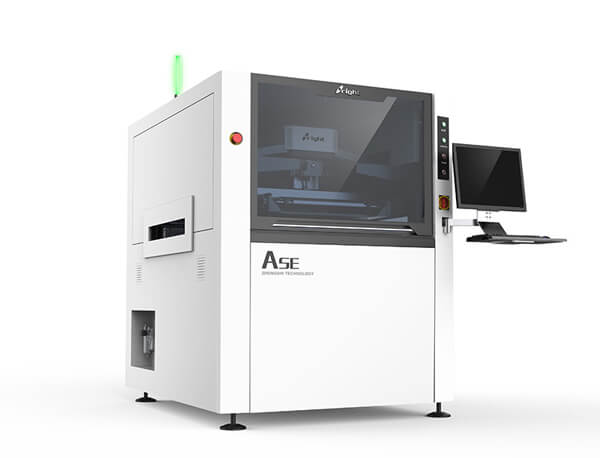

ASE SMT Stencil Printer

  • Gross Power: 50W
  • Voltage: 220V
  • size: 1220(L)×1355(W)×1500(H)mm
  • Weight:1000Kg
  • Product description: ASE SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!
  • INQUIRY

ASE smt stencil printer Fully Automatic

Products description


ASE SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification :
A Series High Precision Automatic solder paste printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~1200mm x 800mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Machine specification parameters

Model

Ase

Screen   Frames

Min  Size

470×370mm

Max  Size

737×737mm

Thickness

25~40mm

PCB   Min Size

50×50mm

PCB   Max Size

400×340mm

PCB   Thickness

0.4~6mm

PCB   Warpage

<1%

Transport   Height

900±40mm

Transport   Direction

Left-Right;Right-Left;Left-Left;Right-Right


Transport   Speed

Max   1500mm/sProgrammable

Board   Location

PCB

Support   System

Magnetic   Pin/Up-down table adjusted/support block

Clamping   System

Side   clamping,vacuum nozzle


Printer   Head

Two   independent motorised printhead

Squeegee   Speed

6~200mm/sec

Squeegee   Pressure

0~15kg

Squeegee   Angel

60°/55°/45°

Squeegee   Type

Stainless   steelstandard,plastic

Stencil   Separation Speed

0.1~20mm/sec Programmable

Cleaning   System

Dry WetVacuum Programmable


Table   Adjustment Ranges

X:±10mm;Y:±10mm;θ:±2°

Machine

Repeate   Position Accuracy

±0.01mm

Printing   Accuracy

±0.025mm

Cycle   Time

<7sExclude Printing & Cleaning

Product   Changeover

<5Min

Air   Required

4.5~6kg/cm2

Power   Input

AC:220±10%,50/60HZ1F3KW

Control   Method

PC   Control

Machine   Dimensions

1220L×1355W×1500Hmm

Machine   Weight

Approx:1000kg
