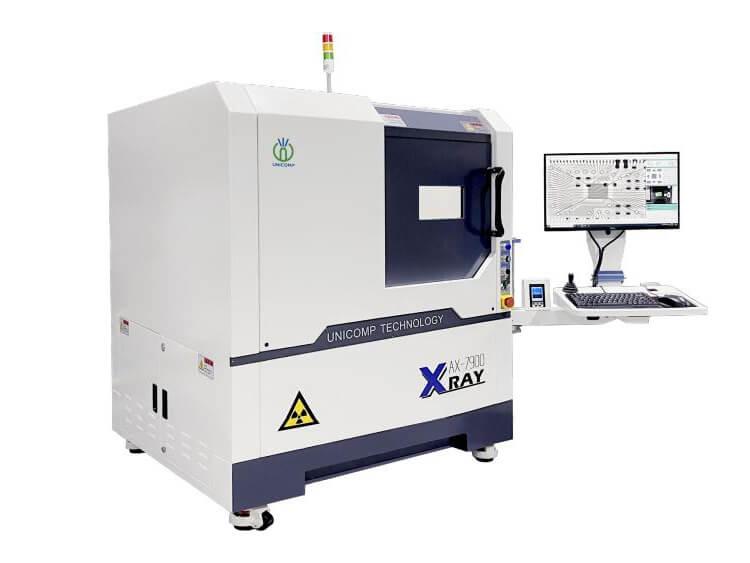

X-Ray Inspection Machine AX7900

Eﬀective Detection Area: 130*130mm
Focus Spot Size: 5μm
Machine Weight: 1130 kg
Dimension：1200(W)×1200(D)×1500(H)mm
Product description: X-Ray Inspection Machine AX7900 Equipment, Eﬀective Detection Area: 130*130mm, Focus Spot Size: 5μm, Machine Weight: 1130 kg, Dimension：1200(W)×1200(D)×1500(H)mm
INQUIRY

X-Ray Inspection Machine AX7900

Product Description:

Large Size Inspection Table

Laser Locator for Precise Location

accurate Control, CNC Programming Automatic Positioning

FPD Tilting ±30°

Safely Electromagnetic Interlock

Fingerprint Access Management System

Real-time Monitoring of Radiation

Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

Technical Parameters and Speciﬁcations

Footprint	1200(W)×1200(D)×1500(H)mm
Machine Weight	1130 kg
Power Supply	AC 110/220V, 50/60Hz
Plywood Packing Size	1870(W)×1480(D)×1880(H)mm
Packing Weight	1330 kg
Power Consumption	1.3 kW
X-Ray Tube
Tube Type	Sealed
Voltage	0~90kV (Adjustable)
Max. Power	8W
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Eﬀective Detection Area	130*130mm
Pixel Matrix	1536*1536
Pixel Size	85μm
Frame Rates	20fps
System Magniﬁcation	600X
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH ﬁlling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad & Mouse
Max. Loading Area/Weight	520*420mm / 10kg
Max. Inspection Area	460*400mm
Tilting Angle	±30°
Manipulator	5-axis with X / Y / Z1 / Z2 / T
Monitor	24’’ FHD LCD Display
System OS	Windows 10
Hard disk	64bit 1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Energy Saving	X-Ray Auto-oﬀ when it's out of work over than 5 minutes
Authority Management	Fingerprint Access Management System, and Support Password Accessing.
X-Ray Safety	<1μSv/h (Meets All International Standards)
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor
