  • Inline X-Ray Inspection Machine LX2000-90KV

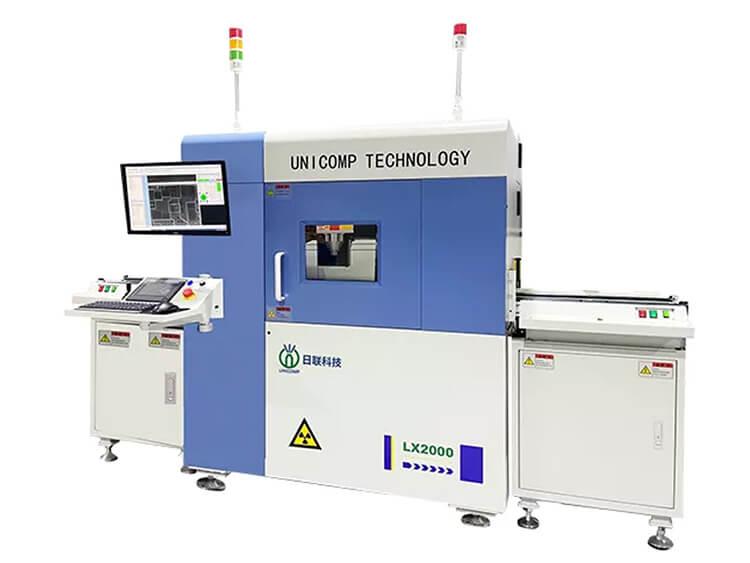

Inline X-Ray Inspection Machine LX2000-90KV

Inline X-Ray Inspection Machine LX2000-90KV

  • Focus Spot Size: 5μm
  • Voltage: 0~90kV
  • Weight: 1900 kg
  • Dimension: 2595×1392×1992mm
  • Product description: Inline X-Ray Inspection Machine LX2000-90KV, Focus Spot Size: 5μm, Voltage: 0~90kV, Weight: 1900 kg, Dimension: 2595×1392×1992mm

Inline X-Ray Inspection Machine LX2000-90KV

Product Specification

Inline X-Ray Inspection Machine LX2000-90KV

Widely applied for BGA, CSP , Flip Chip, LED , Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields
SMT/PCBA, Lead Frame, ntenna Module/Speaker Module, LED, Electric Module,
Functions and Feature
1. Auto Mapping
2. Auto Detecting and Analysing for Ok & NG Components)
3. Accurate Control, CNC Programming Automatic Positioning
4. Rework Database Management system
5. Support MES / ERP /SPC
6. Automatic Labeling Scanning

System Summary



Machine Weight

1900 kg (X-Ray) /   700kg (Conveyor)

Power Supply

AC 110~220V, 50/60Hz

Plywood Packing Size

180(W)×170(D)×190(H)cm (X-Ray)

150(W)×105(D)×120(H)cm (Conveyor)

Packing Weight

2000kg (X-Ray) / 800kg   (Conveyor)

Power Consumption

3.5 kW

X-Ray Tube

Tube Type


Max. Power



0~90kV (Adjustable)

Focus Spot Size


Imaging System


Flat Panel Detector   (FPD)

Pixel Size


Effective Detection   Area


Frame Rates


Pixel Matrix


System Magnification




Auto Inspection and   Analysing for Ok & NG Components

CNC Mode

CNC Programmable   Inspection, Easy Operation and User Friendly


Support Rework   Database Management System

Data Connection

Support MES/ERP/SPC   System


Convenient Target   Point Positioning System

Motion Control System

Movement Control

Joystick, Keypad,   Mouse & Touch Panel (PLC)

Adjustable Tunnel   width


Max. Inspection Sample

400*350mm / 10kg

Min . Inspection   Sample



Auto Inline System

Industrial PC


22’’ FHD LCD Display

System OS

Windows 10 64bit

Hard disk




CPU model

Intel i7 Processor

Other Features

Energy Saving

X-Ray Auto-off when   it's out of work over than 5 minutes

Safety Operation

Electromagnetic Interlock,   Warning Light

Authority Management

Password Magnagement

X-Ray Safety

<1μSv/h (Meets All International Standards)
