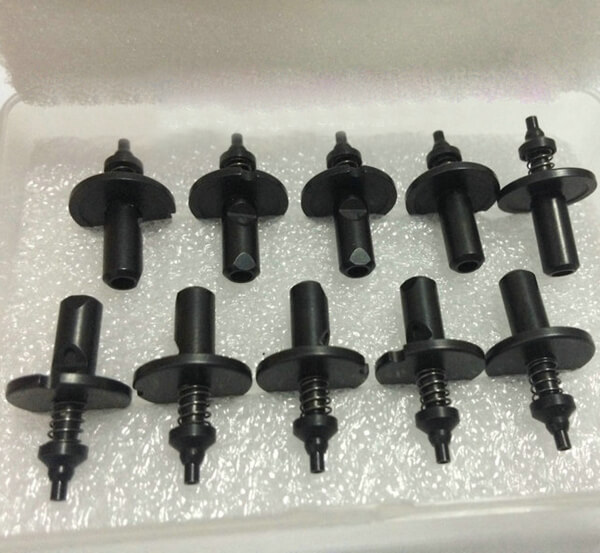

I-Pulse LC6-M770D-00 P series Nozzle

I-Pulse LC6-M770D-00 P series Nozzle

  • SMT Nozzle
  • I-Pulse Nozzle
  • I-Pulse LC6-M770D-00 P series Nozzle
  • Usage:I-Pulse pick and place machine
  • Product description: I-Pulse LC6-M770D-00 P series Nozzle
  • INQUIRY

I-Pulse LC6-M770D-00 P series Nozzle

Products description


M1 & M4 (M Series Nozzles) Description:
M001   LG0-M7701-00X   I-PULSE M1 SERIES PK NZ -M001 (0.5 X 0.4)**
M002   LG0-M7703-00X   I-PULSE M1 SERIES PK NZ -M002 (0.9 X 0.62)
M003   LG0-M7705-00X   I-PULSE M1 SERIES PK NZ -M003 (1.3 X 0.7)
M004   LG0-M7707-00X   I-PULSE M1 SERIES PK NZ -M004 (1.8 X 1.2)
M005   LG0-M7709-00X   I-PULSE M1 SERIES PK NZ -M005 (3.0 X 2.0)
M006   LG0-M770B-00X   I-PULSE M006 NOZZLE   OD : 4.5 / ID : 3.5 **
M012   LG0-M770E-00X   I-PULSE M012 NOZZLE   OD : 2.0 / ID : 0.8 **
M013   LG0-M770G-00X   I-PULSE M013 NOZZLE  OD: 2.5 / ID : 1.2 **
M017   LG0-M770H-00X   I-PULSE M1 SERIES PK NZ -M017 (3.6 X 0.6)(W/RUBBER PAD)
M018   LG0-M770K-00X   I-PULSE M1 SERIES PK NZ -M018 (6.0 X 1.2)(W/RUBBER PAD)
M019   LG0-M770K-00X   I-PULSE M1 SERIES PK NZ -M019 (8.0 X 1.2)(W/RUBBER PAD)
M020   LG0-M770P-00X   I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M2 (N Series Nozzles) Description:
M001   I-PULSE M2 SERIES PK NZ -N001 (0.5 X 0.4)**
N002   I-PULSE M2 SERIES PK NZ -N002 (0.9 X 0.62)
N003   I-PULSE M2 SERIES PK NZ -N003 (1.3 X 0.7)
N004   I-PULSE M2 SERIES PK NZ -N004 (1.8 X 1.2)
N005   I-PULSE M2 SERIES PK NZ -N005 (3.0 X 2.0)
N006   I-PULSE N006 NOZZLE   OD : 4.5 / ID : 3.5 **
N012   I-PULSE N012 NOZZLE   OD : 2.0 / ID : 0.8 **
N013   I-PULSE N013 NOZZLE  OD: 2.5 / ID : 1.2 **
N017   I-PULSE M2 SERIES PK NZ -N017 (3.6 X 0.6)(W/RUBBER PAD)
N018   I-PULSE M2 SERIES PK NZ -N018 (6.0 X 1.2)(W/RUBBER PAD)
N019   I-PULSE M2 SERIES PK NZ -N019 (8.0 X 1.2)(W/RUBBER PAD)
N020   I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M7, M8 Nozzles (P Series Nozzles) Description:
Model              Part Number                Description
P001           LC6-M7701-001                  P001 0.5x0.4
P002           LC6-M7703-001                  P002 0.9x0.6
P003         LC6-M7705-001                P003 ø1.3/ø0.65
P004           LC6-M7707-001                  P004 ø1.8/ø1.2
P005           LC6-M7709-001                  P005 ø3.0/ø2.0
P006           LC6-M770B-001                  P006 ø4.5/ø3.5
P012           LC6-M770D-001                  P012 ø2.0 Melf
P013           LC6-M770F-001                  P013 ø2.5 Melf
P017           LC6-M770H-001                  P017 ø4.0 Rubber
P018           LC6-M770K-001                  P018 ø6.0 Rubber
P019           LC6-M770M-001                  P019 ø8.0 Rubber
P020           LC6-M770P-001                  P020 ø10.0 Rubber

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

samsung Nozzle, yamaha chip mounter Nozzle, SMT Nozzle, juki Nozzle, panasonic Nozzle, pick and place machine Nozzle, Seimens Nozzle, Yamaha Nozzle, FUJI Nozzle, JUKI Nozzle,Hitachi Nozzle,I-Pulse Nozzle.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
