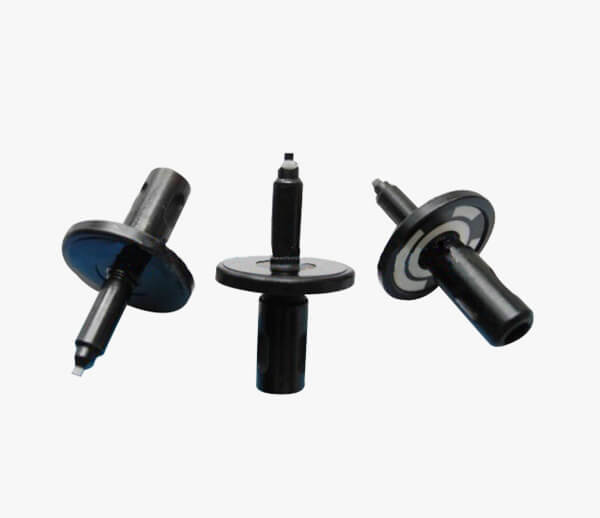

I-PULSE NOZZLES M1 & M4 M021

Products description


I-pulse series nozzles models as belows:
1.M1/M4 type:M001/M002/M003/M004/M005/M006/M012/M013/M017/M018/M019/M020/M021/M022/M031/M032/M033
2.M2 type:N001/N002/N003/N004/N005/N006/N012/N013/N017/N018/N019/N020/N021/N022/N031/N032/N033
3.M6 type:P005/P006/P012/P013/P017/P018/P019/P020/P031/P032/P033/P034/P042
4.FV7100/5530 type: K01/K02/K03/K04/K05/K06/K018/K019/K020
5.MT5800 type:G01/G02/G03/G04/G05/G06/G07/G08/G09/G10/G71
6.MT5620E/5520E type:1005/1608/2125/3216

M1 & M4 (M Series Nozzles) Description:
M001   LG0-M7701-00X   I-PULSE M1 SERIES PK NZ -M001 (0.5 X 0.4)**
M002   LG0-M7703-00X   I-PULSE M1 SERIES PK NZ -M002 (0.9 X 0.62)
M003   LG0-M7705-00X   I-PULSE M1 SERIES PK NZ -M003 (1.3 X 0.7)
M004   LG0-M7707-00X   I-PULSE M1 SERIES PK NZ -M004 (1.8 X 1.2)
M005   LG0-M7709-00X   I-PULSE M1 SERIES PK NZ -M005 (3.0 X 2.0)
M006   LG0-M770B-00X   I-PULSE M006 NOZZLE   OD : 4.5 / ID : 3.5 **
M012   LG0-M770E-00X   I-PULSE M012 NOZZLE   OD : 2.0 / ID : 0.8 **
M013   LG0-M770G-00X   I-PULSE M013 NOZZLE  OD: 2.5 / ID : 1.2 **
M017   LG0-M770H-00X   I-PULSE M1 SERIES PK NZ -M017 (3.6 X 0.6)(W/RUBBER PAD)
M018   LG0-M770K-00X   I-PULSE M1 SERIES PK NZ -M018 (6.0 X 1.2)(W/RUBBER PAD)
M019   LG0-M770K-00X   I-PULSE M1 SERIES PK NZ -M019 (8.0 X 1.2)(W/RUBBER PAD)
M020   LG0-M770P-00X   I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M2 (N Series Nozzles) Description:
M001   I-PULSE M2 SERIES PK NZ -N001 (0.5 X 0.4)**
N002   I-PULSE M2 SERIES PK NZ -N002 (0.9 X 0.62)
N003   I-PULSE M2 SERIES PK NZ -N003 (1.3 X 0.7)
N004   I-PULSE M2 SERIES PK NZ -N004 (1.8 X 1.2)
N005   I-PULSE M2 SERIES PK NZ -N005 (3.0 X 2.0)
N006   I-PULSE N006 NOZZLE   OD : 4.5 / ID : 3.5 **
N012   I-PULSE N012 NOZZLE   OD : 2.0 / ID : 0.8 **
N013   I-PULSE N013 NOZZLE  OD: 2.5 / ID : 1.2 **
N017   I-PULSE M2 SERIES PK NZ -N017 (3.6 X 0.6)(W/RUBBER PAD)
N018   I-PULSE M2 SERIES PK NZ -N018 (6.0 X 1.2)(W/RUBBER PAD)
N019   I-PULSE M2 SERIES PK NZ -N019 (8.0 X 1.2)(W/RUBBER PAD)
N020   I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M7, M8 Nozzles (P Series Nozzles) Description:
Model              Part Number                Description
P001           LC6-M7701-001                  P001 0.5x0.4
P002           LC6-M7703-001                  P002 0.9x0.6
P003             LC6-M7705-001                P003 ø1.3/ø0.65
P004           LC6-M7707-001                  P004 ø1.8/ø1.2
P005           LC6-M7709-001                  P005 ø3.0/ø2.0
P006           LC6-M770B-001                  P006 ø4.5/ø3.5
P012           LC6-M770D-001                  P012 ø2.0 Melf
P013           LC6-M770F-001                  P013 ø2.5 Melf
P017           LC6-M770H-001                  P017 ø4.0 Rubber
P018           LC6-M770K-001                  P018 ø6.0 Rubber
P019           LC6-M770M-001                  P019 ø8.0 Rubber
P020           LC6-M770P-001                  P020 ø10.0 Rubber

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
