  • High Speed LED Strip Light Making Pick and Place Machine HT-F7

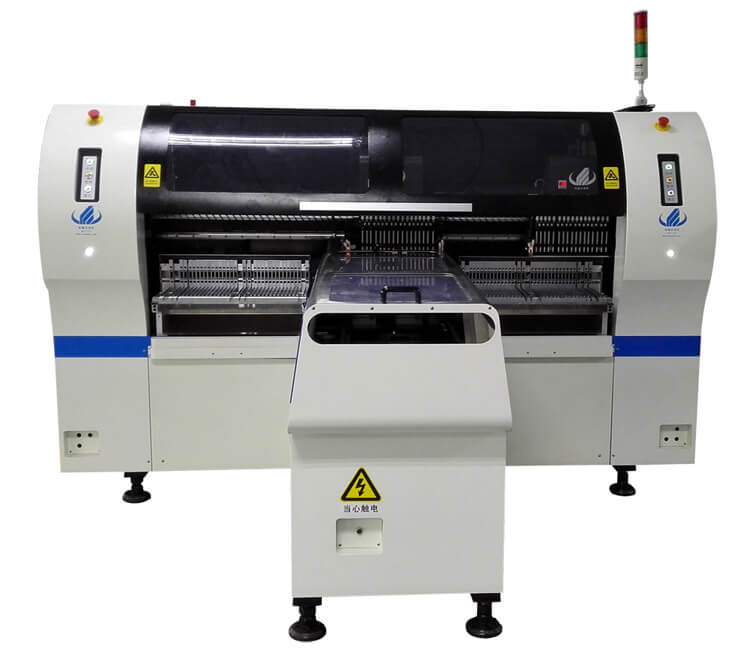

High Speed LED Strip Light Making Pick and Place Machine HT-F7

High Speed LED Strip Light Making Pick and Place Machine HT-F7

  • Speed: 150000~170000 CPH
  • PCB Size:: Max:300*1200mm Min:300*80mm
  • Weight:1400KG
  • Dimension:2700x2450x1530mm
  • Product description: High Speed LED Strip Light Making Pick and Place Machine HT-F7, Speed: 150000~170000 CPH,PCB Size:: Max:300*1200mm Min:300*80mm,Weight:1400KG,Dimension:2700x2450x1530mm
  • INQUIRY

6 Heads LED assembly line SMT pick and place machine chip mounter HT-F7

Specifications:


  • HT-F7 SMT pick and place machine is for 0.6M, 0.9M, 1,2M LED hard light board 0.5M, 1M LED soft lamp strip. Apply to LED lamp  manufacturer , PCB production line etc.
  • HT-F7 is for double module, consisting of two modules interact to mount around, each module can be installed nozzle 17, the minimum distance is 14mm between two adjacent nozzle. 14mm above can be freely adjusted, when the puzzle spacing of less than 14mm can be separated by one or more of the welding position adjustment nozzle spacing to interact mount.  And it’s identified the correct position by camera. So it’s high precision and good stability.

Specific technical parameter

Length*Width*Height

2700mm*1900mm *1400mm

Total Weight

1400kg

PCB Length Width

Max:1200*300mm  Min:300*60mm

Mounting Precision

±0.02mm chip

Mounting Speed

150000~170000 CPH(optimum)

Components Speed

0.2mm

Power

220AC 50HZ

Power Consumption

5kw

No. of feeders

68 PCS

No. of nozzles

34 nozzles

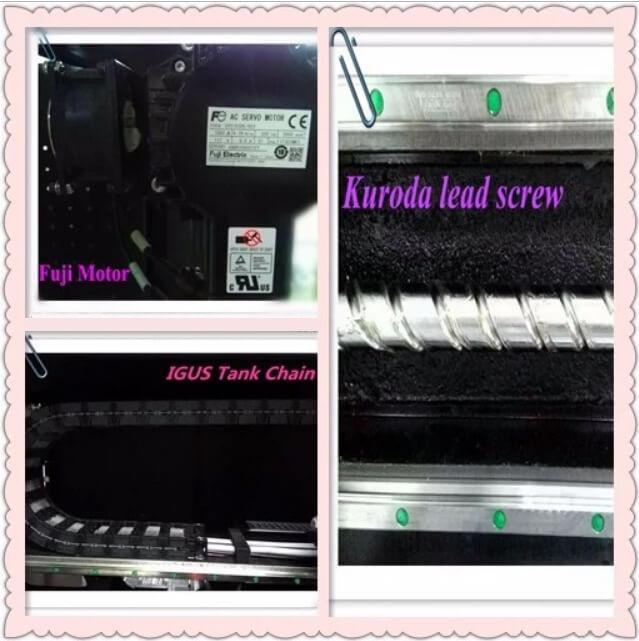

Most important parts of our machines are made with imported parts.


Before buying machine

1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !

2) 24 hours online service and technical support, solve your questions quickly!

3) Sound company organization and working system, guarantee you a fast delivery!

4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!

After buying machine

1)     1 year free warranty

2)     Visit customers regularly and gather information.

3)     Provide latest information about technology and equipment.

Ship  and package

1)     shipping:  Within 30 days after payment

2)     Packaging:  Standard export package or customized package

Our attitude

Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make the most suitable plan for you to save labor cost.

Keywords:

yamaha pick and place machine, samsung Pick and place machine, siemens pick and place machine, juki pick and place machine, Hanwha chip mounter, fuji chip mounter, Universal chip mounter, I Pulse Chip mounter, Hitachi Chip Mounter, panasonic Chip Mounter.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, THT wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com







FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
