  • HITACHI GXH-3J Chip Mounter

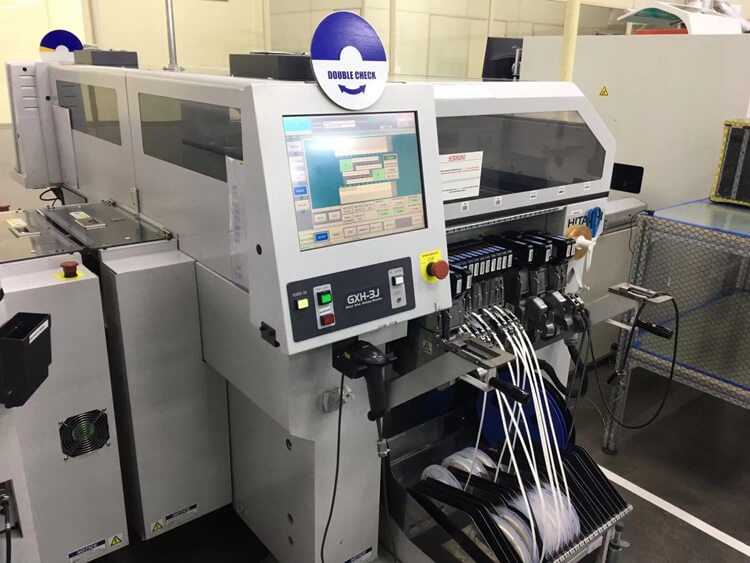

HITACHI GXH-3J Chip Mounter

HITACHI GXH-3J Chip Mounter

  • HITACHI GXH-3J Pick and Place Machine
  • Mounting Speed: 12000CPH.
  • components ranging: 0201(0603mm)
  • High speed head 0603 (0201) to 44 X 44mm
  • Product description: HITACHI GXH-3J Chip Mounter, Mounting Speed: 12000CPH.components ranging: 0201(0603mm), High speed head 0603 (0201) to 44 X 44mm

HITACHI GXH-3J Pick and Place Machine


HITACHI GXH-3J Chip Mounter

A placement system with the ludicrous placement rate of   12000CPH.

and flexibility to place components ranging from 0201(0603mm) chip to 100x26mm connector.

Two independent work cells (stages) allow simultaneous assembly of two boards.
All X and Y axes are operated by linear motors.
Each Y axis has two motors for enhanced stability and repeatibility.
Four placement heads have up to 12 nozzles each.
On-the-fly recognition of all components.
A line sensor on each head checks for component presence, orientation, and correct thickness.
Unique board conveyor system moves both rails for optimum board postioning during production.
No more "fixed rails"!!!
An option exists for the placement of 01005 (0402mm) chip components.

Board Dimensions
50 X 50 to 460 X 460mm

(610 X 460 optional)

Thickness: 0.5 to 5.0mm

Component Package: 8mm (paper)

8 to 72mm:(embossed)

Tray, Stick

Component: Sizes
High speed head 0603 (0201) to 44 X 44mm 0402 (01005) (option)

Multi-function head 3216(1206) to 55 X 55mm 100 X 26mm (Connector)

Mounting Accuracy: 50 μm (3σ)
